Q45BW22CV Banner Proximity Sensors

Banner Q45BW22CV Q45 Series: Convergent; Focal Point: 38 mm; Input: 90-250 V ac; Output: SPST Solid-state Relay; 2 m (6.5 ft) cable
Banner

Part#:Q45BW22CV

Manufacturer:Banner

Alt. Part#:36845

Product Lifecycle:Active

Get a quick Quote!

Q45 Series: Convergent; Focal Point: 38 mm; Input: 90-250 V ac; Output: SPST Solid-state Relay; 2 m (6.5 ft) cable

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q45BW22CV Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight346.544288 g
  • Country Of OriginUS
  • Cable Length (m)
    2
  • Operation
    Light/Dark Operate
  • Number of Pins
    3
  • Opposed Mode Emitter/Receiver
    N/A
  • Barrel Diameter (mm)
    30
  • Sensing Mode (General)
    Proximity
  • Connection
    Cable
  • Quick Disconnect Type
    No QD
  • Repeatability (µs)
    500
  • Feature: Timing (Hold/Delay)
    Yes
  • Max Sensing Distance (mm)
    38
  • Min Op. Temp. (°C)
    -40
  • Sensing Beam Wavelength
    680
  • Feature: Hazardous Area
    No
  • IO Link
    No
  • Housing Style
    Rectangular
  • Power Supply/Supply Voltage
    90-250 V ac
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Indicator
    LEDs
  • Primary Housing Material
    Thermoplastic
  • Output response time (ms)
    2
  • Special Feature: Remote Teach
    No
  • NEMA Rating
    NEMA 6P
  • Feature: Encapsulated
    No
  • Sensing Beam
    Visible Red LED
  • Max Op. Temp. (°C)
    70
  • Delay at Power-up (ms)
    100
  • Lens Material
    Acrylic
  • Feature: Audible
    No
  • Sensing Mode (Detailed)
    Convergent
  • Outputs
    Solid-State AC Switch
  • Special Feature: Water Detection
    No
  • IP Rating
    IP67
  • Feature: Chemical Resistant
    No
  • Power
    AC
  • Input/Output
    Solid-State AC Switch
  • Special Feature: Intrinsically Safe
    No
  • Adjustments
    Potentiometer
  • DeviceNet
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Q45BW22CV Description

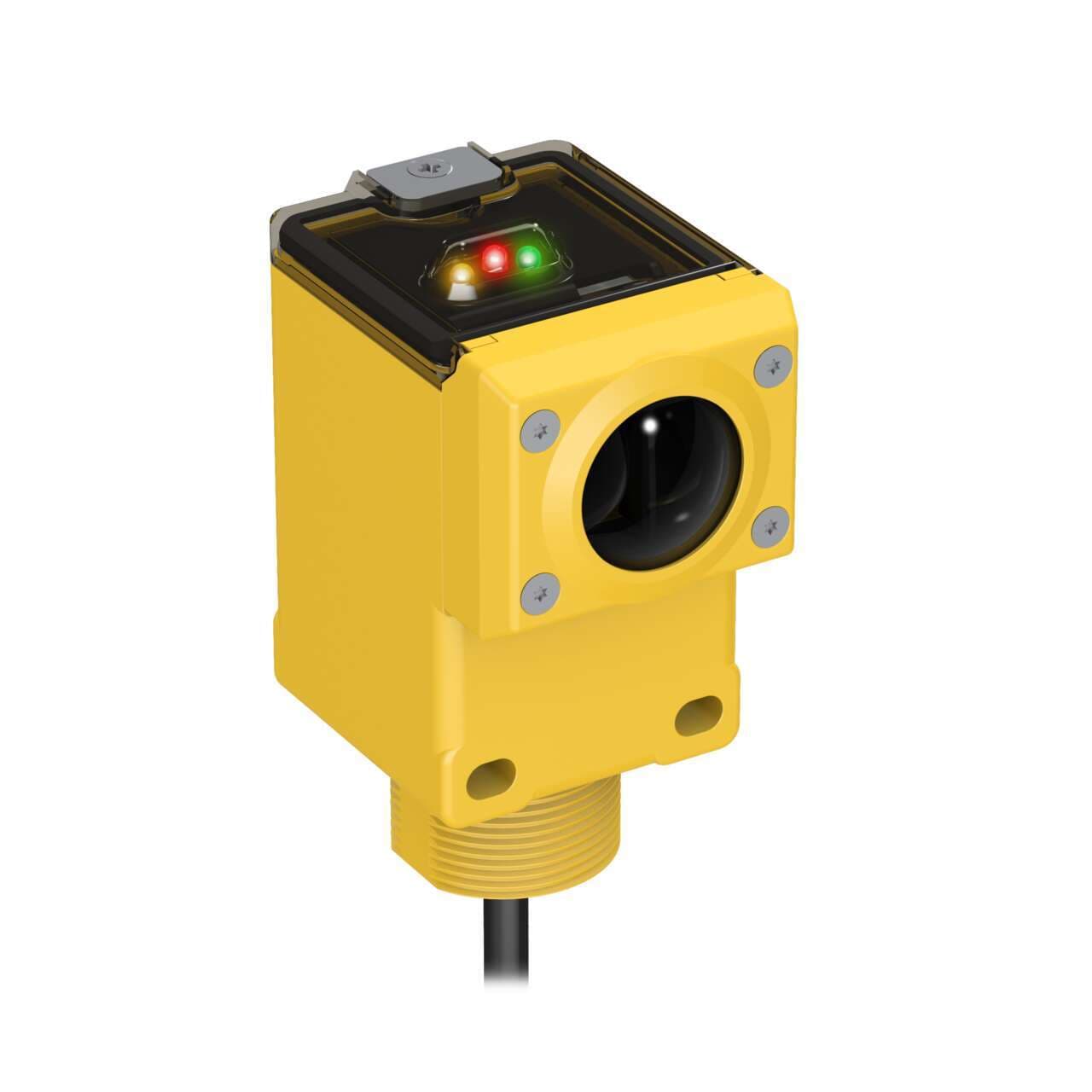

Banner Engineering Q45BW22CV is a photo-electric sensor designed for precision detection tasks. It features a convergent mode with potentiometer adjustment and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. This sensor operates within an ambient air temperature range of -40 to +70°C and is suitable for M30 threaded mount applications. It supports a supply voltage range of 90Vac-250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. The Q45BW22CV, part of the Q45BW22 series, offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in harsh environments. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens. With a sensing distance of 38mm and a visible red light color at a wavelength of 680 nm, this sensor provides versatile operating modes, including Light-ON and Dark-ON. It features a single digital output (Solid-state AC output; SPST contact type) and boasts a rapid response time of 2ms / 0.002 s.

Related documents Q45BW22CV Specs

Q45BW22CV 53852.pdf

1-year warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

By purchasing this item, you agree to the Terms & Conditions

Quotebeam is NOT an authorized distributor of Banner

Shipping and Delivery Worldwide

calculate costs and time

Secure Payment Processing

with money back guarantee

1 year warranty

on all parts

Responsive Customer Support

we're here to help!

Need more details?

Feel free to chat with us or check our FAQ

Banner Disclaimer:

The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
