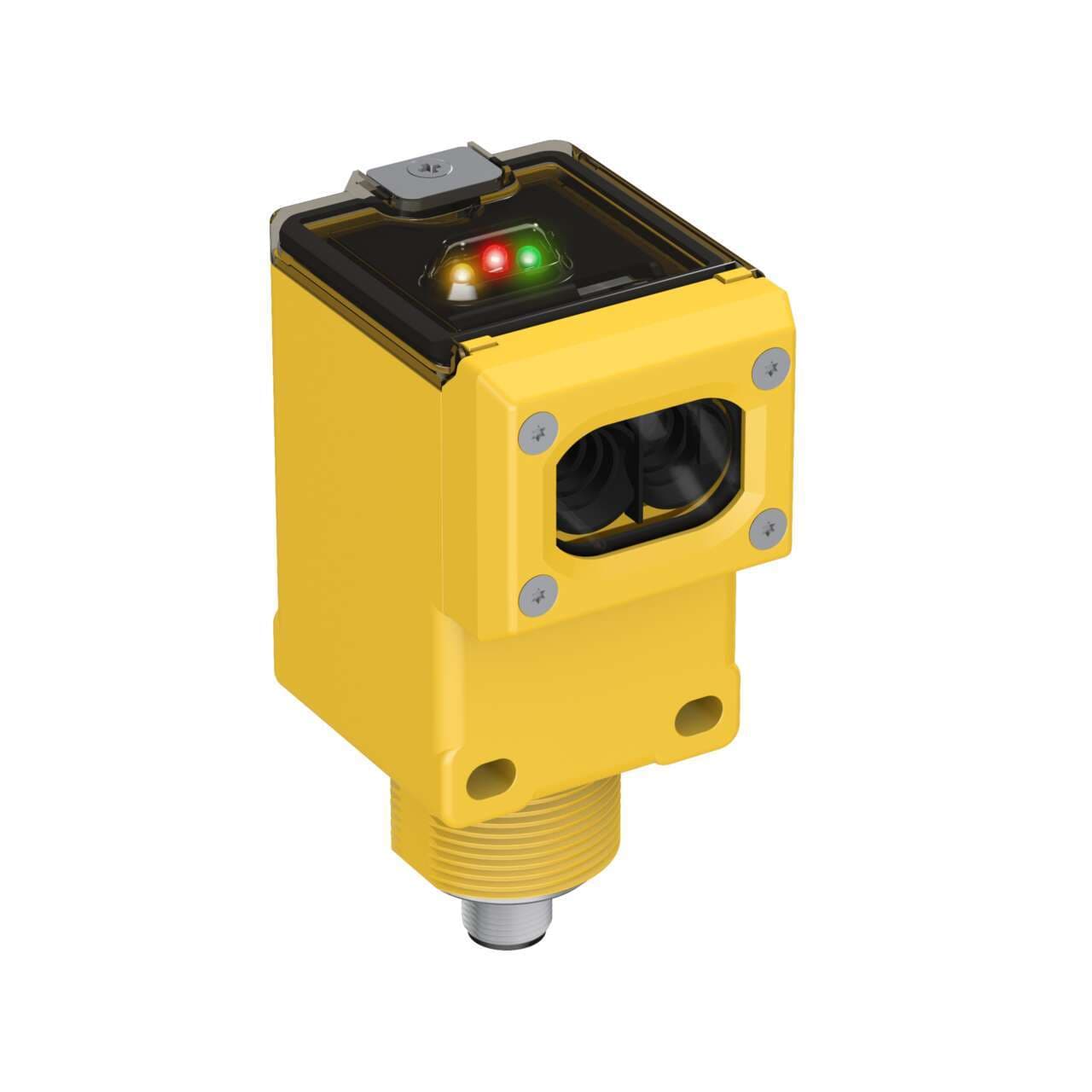

Q45BB6DQ5 Banner Proximity Sensors
Part#:Q45BB6DQ5
Manufacturer:Banner
Alt. Part#:38663
Product Lifecycle:Active
Get a quick Quote!
Q45 Series: Diffuse; Range: 450 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q45BB6DQ5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight244.93968 g
- Country Of OriginUS
- Functions Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Thread size M30
- Compliant with standard(s) cURus cCSAus CE
- Product series / family name Q series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Light Color Infrared (IR)
- Operating mode Light-ON Dark-ON
- Main function Sensor (Photo-electric)
- Primary brand Banner Engineering
- Sensing distance 450mm
- Sub-range name Q45BB6
- Design diffuse mode
- Wavelength 880 nm
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Response time 2ms / 0.002 s
- Order code / Manufacturer SKU 38663
- Shape Rectangular
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Ambient air temperature for operation -40...+70 °C
- Mounting mode Threaded mount
- Material thermoplastic housing Acrylic lns.
- Degree of protection IP67 NEMA 6P
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
- Power DC
- Quick Disconnect Type M12 (Euro)
- NEMA Rating NEMA 6P
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Diffuse
- Connection Integral QD
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver N/A
- Sensing Beam Infrared LED
- Special Feature: Water Detection No
- Indicator LEDs
- DeviceNet No
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) 30
- Max Sensing Distance (mm) 450
- Min Op. Temp. (°C) -40
- IP Rating IP67
- Feature: Encapsulated No
- Housing Style Rectangular
- Power Supply/Supply Voltage 10-30 V dc
- Adjustments Potentiometer
- Outputs Bipolar (NPN & PNP)
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Input/Output Discrete
- Operation Light/Dark Operate
- Repeatability (µs) 500
- Feature: Timing (Hold/Delay) Yes
- Sensing Mode (General) Proximity
- Output response time (ms) 2
- Number of Pins 4
- Feature: Chemical Resistant No
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q45BB6DQ5 Description
Banner Engineering Q45BB6DQ5 is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It is equipped with an M30 threaded mount for secure installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is part of the Q45BB6 series and offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environmental conditions. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The Q45BB6DQ5 has a rectangular shape with a thermoplastic housing and an acrylic lens, designed for a sensing distance of up to 450mm. It utilizes infrared light with a wavelength of 880 nm and can operate in both Light-ON and Dark-ON modes. The connection is facilitated by a pre-equipped 4-pin Euro-style M12 connector, and it features one digital output (PNP/NPN transistor) with a response time of 2ms or 0.002 seconds.
Related documents Q45BB6DQ5 Specs
