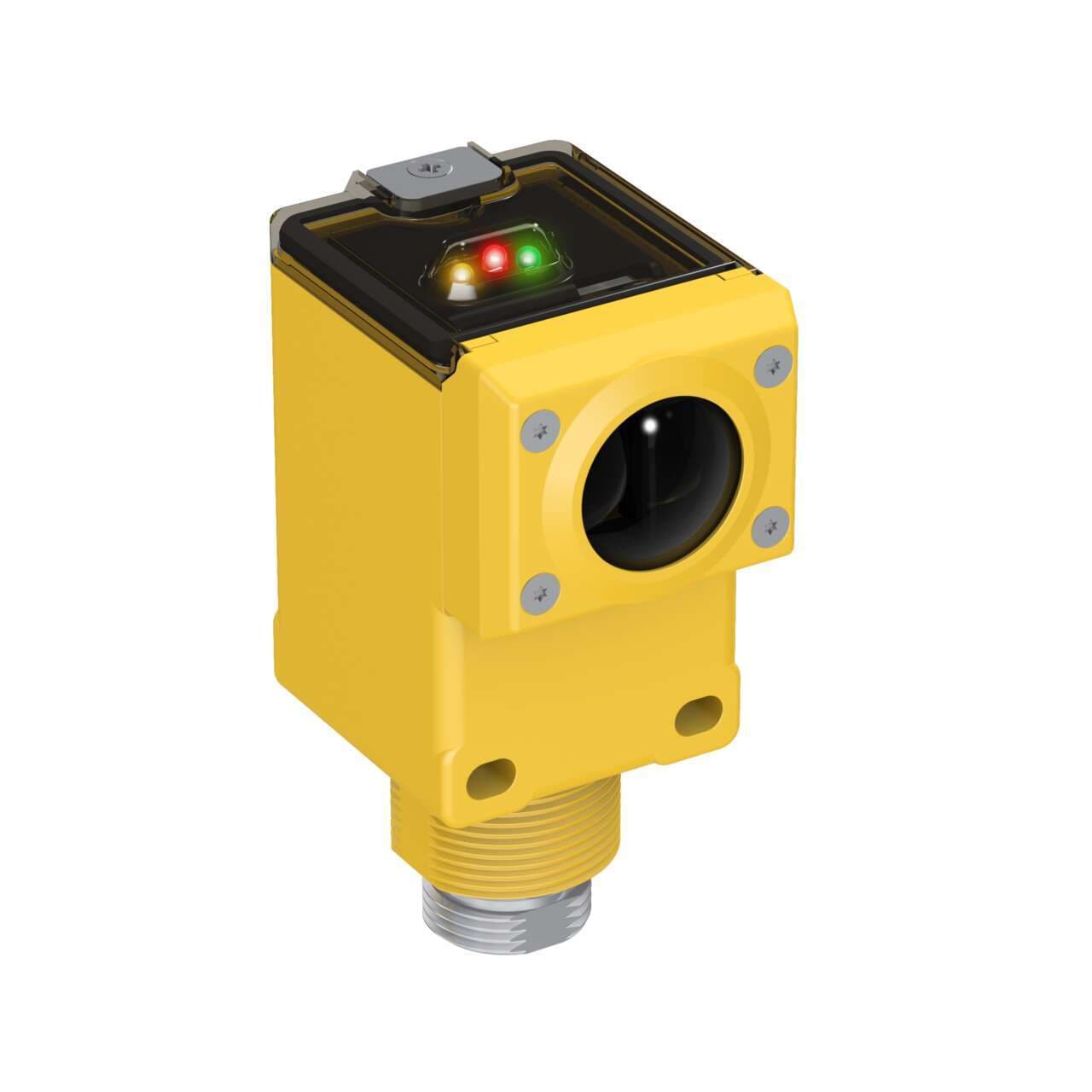

Q45BB6CVQ Banner Proximity Sensors

Banner Q45BB6CVQ Q45 Series: Convergent; Focal Point: 38 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin Mini Integral QD
Banner

Part#:Q45BB6CVQ

Manufacturer:Banner

Alt. Part#:37009

Product Lifecycle:Active

Get a quick Quote!

Q45 Series: Convergent; Focal Point: 38 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin Mini Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q45BB6CVQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight262.176176 g
  • Country Of OriginUS
  • Power
    DC
  • Power Supply/Supply Voltage
    10-30 V dc
  • Number of Pins
    4
  • Sensing Mode (General)
    Proximity
  • Primary Housing Material
    Thermoplastic
  • Repeatability (µs)
    500
  • Indicator
    LEDs
  • Max Sensing Distance (mm)
    38
  • Quick Disconnect Type
    7/8 in. (Mini)
  • NEMA Rating
    NEMA 6P
  • Feature: Timing (Hold/Delay)
    Yes
  • Special Feature: Intrinsically Safe
    No
  • Adjustments
    Potentiometer
  • Input/Output
    Discrete
  • Connection
    Integral QD
  • Special Feature: Water Detection
    No
  • Lens Material
    Acrylic
  • Feature: Audible
    No
  • Housing Style
    Rectangular
  • Max Op. Temp. (°C)
    70
  • Output response time (ms)
    2
  • Delay at Power-up (ms)
    100
  • Feature: Hazardous Area
    No
  • Sensing Mode (Detailed)
    Convergent
  • Sensing Beam Wavelength
    680
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Opposed Mode Emitter/Receiver
    N/A
  • Sensing Beam
    Visible Red LED
  • Operation
    Light/Dark Operate
  • Special Feature: Remote Teach
    No
  • Barrel Diameter (mm)
    30
  • Feature: Encapsulated
    No
  • DeviceNet
    No
  • Outputs
    Bipolar (NPN & PNP)
  • Min Op. Temp. (°C)
    -40
  • IP Rating
    IP67
  • IO Link
    No
  • Feature: Chemical Resistant
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Q45BB6CVQ Description

Banner Engineering Q45BB6CVQ is a photo-electric sensor designed for precision detection tasks. It features a convergent mode with potentiometer adjustment and is equipped with a 4-pin 7/8" mini connector for easy installation. This sensor is part of the Q45BB6 series and offers a sensing distance of 38mm, utilizing visible red light with a wavelength of 680 nm. It operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. The Q45BB6CVQ operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It features a rectangular shape with an M30 threaded mount for secure attachment. This sensor provides a high degree of protection with an IP67 NEMA 6P rating, making it suitable for challenging environments. It offers both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP/NPN transistor) with a rapid response time of 2ms / 0.002 s.

Related documents Q45BB6CVQ Specs

Q45BB6CVQ 36578.pdf
