Q45BB6CV4Q Banner Electronic Components
Part#:Q45BB6CV4Q
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

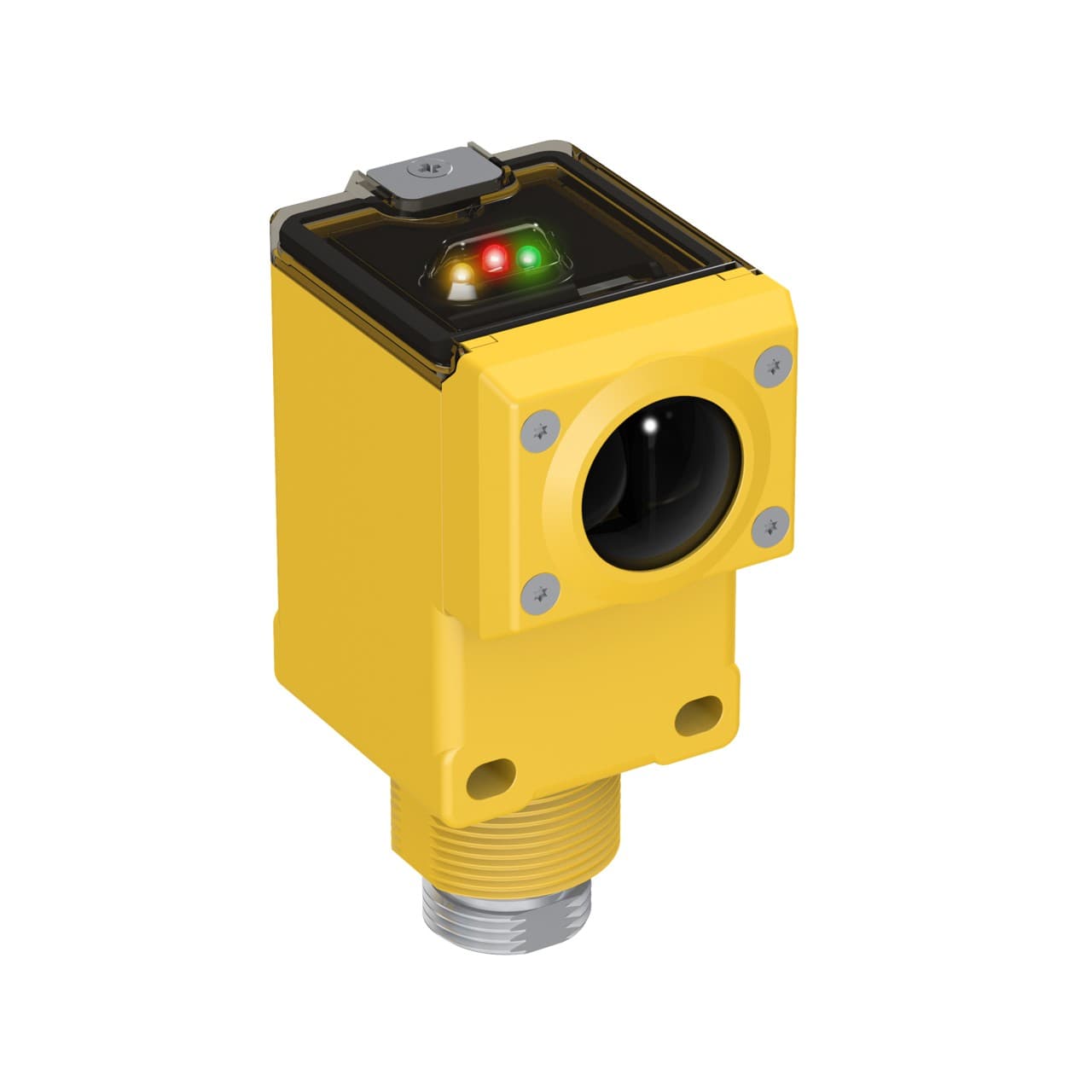

Banner Engineering Q45BB6CV4Q is a photo-electric sensor designed for precision detection in industrial environments. This sensor features a convergent mode with potentiometer adjustment and is mounted using an M30 threaded mount. It operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. The Q45BB6CV4Q is equipped with a 4-pin 7/8" mini connector for straightforward connectivity. It belongs to the Q45BB6 series and offers a protection degree of IP67 NEMA 6P, making it suitable for challenging conditions. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is designed for easy integration into various setups. With a sensing distance of 100mm and a visible red light of 680 nm wavelength, it provides clear detection. The operating modes include Light-ON and Dark-ON, complemented by a digital output (PNP/NPN transistor) for versatile signaling. The response time is rapid at 2ms / 0.002 s, facilitating quick detection for efficient automation processes.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q45BB6CV4Q Banner price in the box on the right side or send a quick quote.
Product Details
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 680 nm
- Functions Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Main function Sensor (Photo-electric)
- Design convergent mode
- Shape Rectangular
- Connection type Pre-equipped with 4-pin 7/8" Mini connector
- Compliant with standard(s) cURus cCSAus CE
- Product series / family name Q series
- Sensing distance 100mm
- Thread size M30
- Mounting mode Threaded mount
- Order code / Manufacturer SKU 37010
- Sub-range name Q45BB6
- Light Color Visible red
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Material thermoplastic housing Acrylic lns.
- Operating mode Light-ON Dark-ON
- Degree of protection IP67 NEMA 6P
- Response time 2ms / 0.002 s
- Ambient air temperature for operation -40...+70 °C
- Sensing Beam Visible Red LED
- Min Op. Temp. (°C) -40
- Adjustments Potentiometer
- Feature: Chemical Resistant No
- Power DC
- Max Op. Temp. (°C) 70
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Audible No
- Sensing Mode (Detailed) Convergent
- Output response time (ms) 2
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) Yes
- Outputs Bipolar (NPN & PNP)
- IP Rating IP67
- Special Feature: Remote Teach No
- Input/Output Discrete
- Repeatability (µs) 500
- Barrel Diameter (mm) 30
- IO Link No
- Max Sensing Distance (mm) 100
- Connection Integral QD
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Housing Style Rectangular
- Operation Light/Dark Operate
- Number of Pins 4
- Indicator LEDs
- Primary Housing Material Thermoplastic
- Quick Disconnect Type 7/8 in. (Mini)
- Sensing Beam Wavelength 680
- Opposed Mode Emitter/Receiver N/A
- DeviceNet No
- Special Feature: Water Detection No
- NEMA Rating NEMA 6P
- Feature: Encapsulated No
