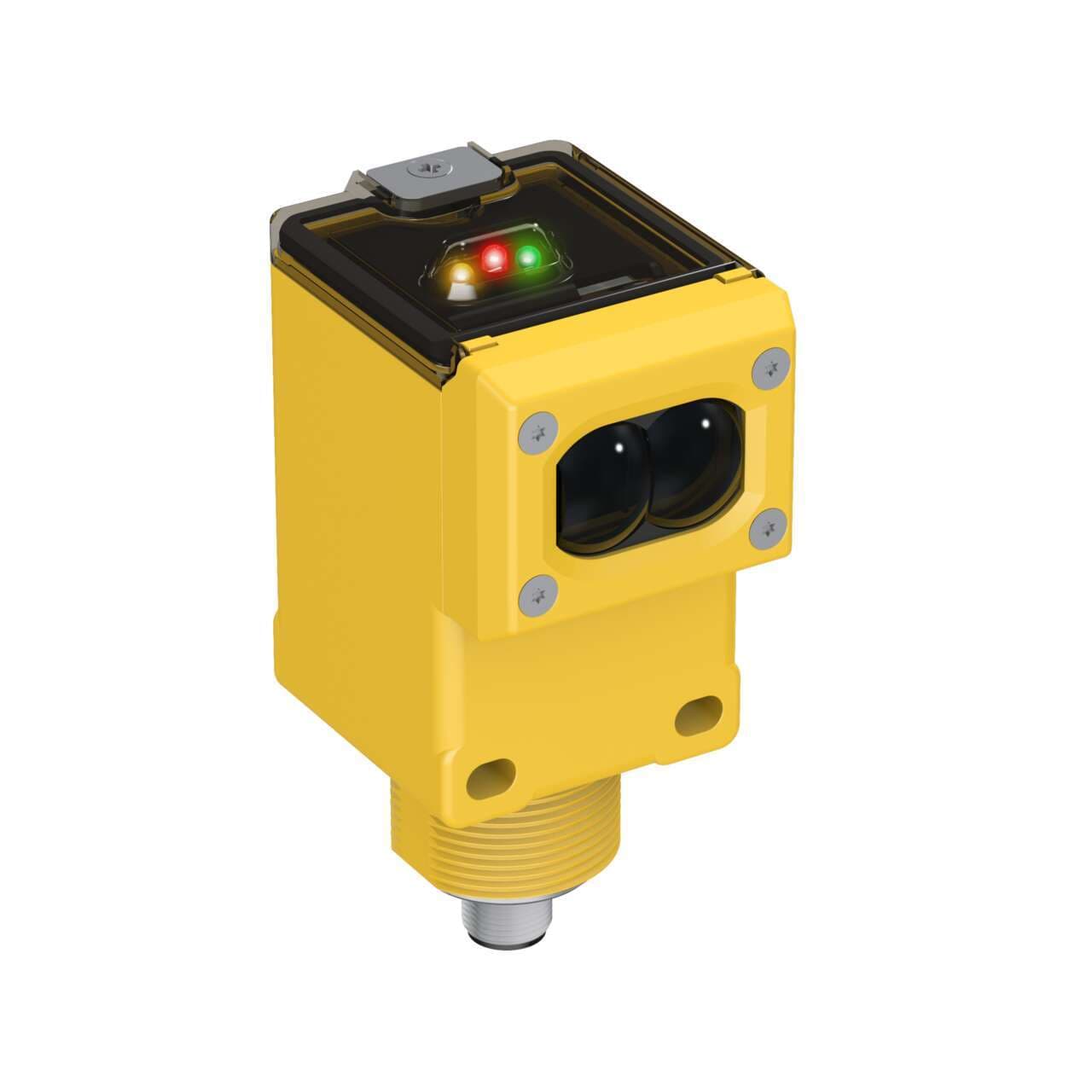

Q45BB6LPQ5 Banner Proximity Sensors
Part#:Q45BB6LPQ5
Manufacturer:Banner
Alt. Part#:38666
Product Lifecycle:Active
Get a quick Quote!
Q45 Series: Polarized Retro; Range: 0.15 - 6 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q45BB6LPQ5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight254.01152 g
- Country Of OriginUS
- Product series / family name Q series
- Design retro-reflective mode
- Thread size M30
- Shape Rectangular
- Sub-range name Q45BB6
- Light Color Visible red
- Mounting mode Threaded mount
- Degree of protection IP67 NEMA 6P
- Main function Sensor (Photo-electric)
- Sensing distance 0.15cm...6m
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Material thermoplastic housing Acrylic lns.
- Functions Polarized photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Operating mode Light-ON Dark-ON
- Response time 2ms / 0.002 s
- Compliant with standard(s) cURus cCSAus CE
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 680 nm
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Ambient air temperature for operation -40...+70 °C
- Order code / Manufacturer SKU 38666
- Max Sensing Distance (mm) 6000
- Output response time (ms) 2
- Repeatability (µs) 500
- Feature: Hazardous Area No
- Outputs Bipolar (NPN & PNP)
- Min Op. Temp. (°C) -40
- Number of Pins 4
- Feature: Timing (Hold/Delay) Yes
- Power DC
- Sensing Mode (Detailed) Polarized
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Adjustments Potentiometer
- DeviceNet No
- Sensing Beam Visible Red LED
- Max Op. Temp. (°C) 70
- Delay at Power-up (ms) 100
- Feature: Audible No
- Quick Disconnect Type M12 (Euro)
- Sensing Beam Wavelength 680
- Barrel Diameter (mm) 30
- Input/Output Discrete
- Housing Style Rectangular
- Operation Light/Dark Operate
- NEMA Rating NEMA 6P
- Indicator LEDs
- IO Link No
- Sensing Mode (General) Retroreflective
- Connection Integral QD
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant No
- IP Rating IP67
- Feature: Encapsulated No
- Primary Housing Material Thermoplastic
- Special Feature: Intrinsically Safe No
- Opposed Mode Emitter/Receiver N/A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q45BB6LPQ5 Description
Banner Engineering Q45BB6LPQ5 is a polarized photo-electric sensor designed for versatile applications, featuring a retro-reflective mode with potentiometer adjustment. This sensor is equipped with an M30 threaded mount for secure installation and a pre-equipped 4-pin Euro-style M12 connector for straightforward connectivity. It operates within an ambient air temperature range of -40 to +70°C and offers a sensing distance between 0.15cm and 6m. The Q45BB6LPQ5, part of the Q45BB6 series, is housed in a durable thermoplastic with an acrylic lens and is shaped rectangularly. It provides a degree of protection rated at IP67 NEMA 6P, ensuring operation in demanding environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It emits visible red light at a wavelength of 680 nm and can operate in both Light-ON and Dark-ON modes. The sensor features a single digital output (PNP/NPN transistor) and boasts a rapid response time of 2ms / 0.002 s.
