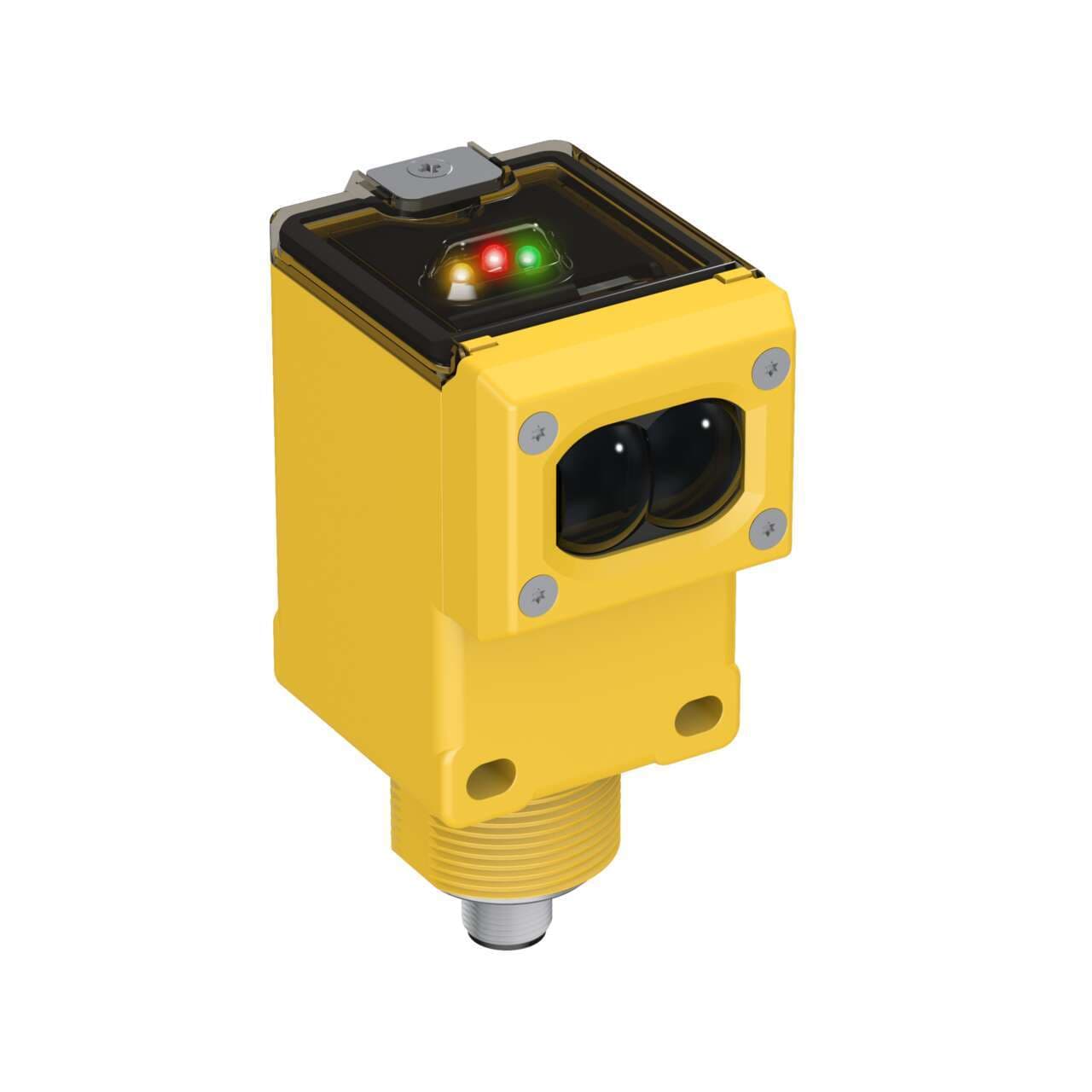

Q45BB6DLQ5 Banner Proximity Sensors
Part#:Q45BB6DLQ5
Manufacturer:Banner
Alt. Part#:38664
Product Lifecycle:Active
Get a quick Quote!
Q45 Series: Diffuse; Range: 1.8 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q45BB6DLQ5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight244.93968 g
- Country Of OriginUS
- Main function Sensor (Photo-electric)
- Design diffuse mode
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Response time 2ms / 0.002 s
- Product series / family name Q series
- Light Color Infrared (IR)
- Sub-range name Q45BB6
- Wavelength 880 nm
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) cURus cCSAus CE
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Ambient air temperature for operation -40...+70 °C
- Primary brand Banner Engineering
- Functions Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Sensing distance 1.8m
- Thread size M30
- Order code / Manufacturer SKU 38664
- Mounting mode Threaded mount
- Degree of protection IP67 NEMA 6P
- Material thermoplastic housing Acrylic lns.
- Input/Output Discrete
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -40
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
- Sensing Beam Infrared LED
- Connection Integral QD
- Delay at Power-up (ms) 100
- Indicator LEDs
- Housing Style Rectangular
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Feature: Encapsulated No
- Sensing Mode (Detailed) Diffuse
- Operation Light/Dark Operate
- IP Rating IP67
- Feature: Hazardous Area No
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Intrinsically Safe No
- Adjustments Potentiometer
- DeviceNet No
- Max Sensing Distance (mm) 1800
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Outputs Bipolar (NPN & PNP)
- Output response time (ms) 2
- Repeatability (µs) 500
- Feature: Timing (Hold/Delay) Yes
- IO Link No
- Power DC
- Quick Disconnect Type M12 (Euro)
- Number of Pins 4
- Opposed Mode Emitter/Receiver N/A
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q45BB6DLQ5 Description
Banner Engineering Q45BB6DLQ5 is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It is equipped for mounting with an M30 threaded mount and operates within an ambient air temperature range of -40 to +70°C. This sensor is part of the Q45BB6 series and offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environments. It requires a supply voltage of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. The rectangular-shaped sensor is constructed from a thermoplastic housing with an acrylic lens. It has a sensing distance of up to 1.8m and utilizes infrared light with a wavelength of 880 nm. The operating modes include Light-ON and Dark-ON, supported by a digital output (PNP/NPN transistor) and a rapid response time of 2ms. Connection is facilitated through a pre-equipped 4-pin Euro-style M12 connector.
Related documents Q45BB6DLQ5 Specs
