Q45BB6LVQ5 Banner Proximity Sensors
Part#:Q45BB6LVQ5
Manufacturer:Banner
Alt. Part#:38665
Product Lifecycle:Active
Get a quick Quote!
Q45 Series: Retro; Range: 0.08 - 9 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q45BB6LVQ5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight254.01152 g
- Country Of OriginUS
- Primary brand Banner Engineering
- Main function Sensor (Photo-electric)
- Functions Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Product series / family name Q series
- Wavelength 680 nm
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Compliant with standard(s) cURus cCSAus CE
- Sub-range name Q45BB6
- Design retro-reflective mode
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -40...+70 °C
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Mounting mode Threaded mount
- Degree of protection IP67 NEMA 6P
- Order code / Manufacturer SKU 38665
- Light Color Visible red
- Thread size M30
- Material thermoplastic housing Acrylic lns.
- Sensing distance 8cm...9m
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Response time 2ms / 0.002 s
- Input/Output Discrete
- Outputs Bipolar (NPN & PNP)
- Max Op. Relative Humidity [%] 90% @ 50°C
- DeviceNet No
- Sensing Mode (General) Retroreflective
- Housing Style Rectangular
- Special Feature: Water Detection No
- NEMA Rating NEMA 6P
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Encapsulated No
- Power Supply/Supply Voltage 10-30 V dc
- Operation Light/Dark Operate
- Number of Pins 4
- Feature: Hazardous Area No
- Power DC
- Min Op. Temp. (°C) -40
- Sensing Beam Wavelength 680
- Barrel Diameter (mm) 30
- IO Link No
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Output response time (ms) 2
- Indicator LEDs
- Connection Integral QD
- Repeatability (µs) 500
- Special Feature: Intrinsically Safe No
- Feature: Timing (Hold/Delay) Yes
- Max Sensing Distance (mm) 9000
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Opposed Mode Emitter/Receiver N/A
- Sensing Beam Visible Red LED
- Sensing Mode (Detailed) Non-Polarized
- Adjustments Potentiometer
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q45BB6LVQ5 Description

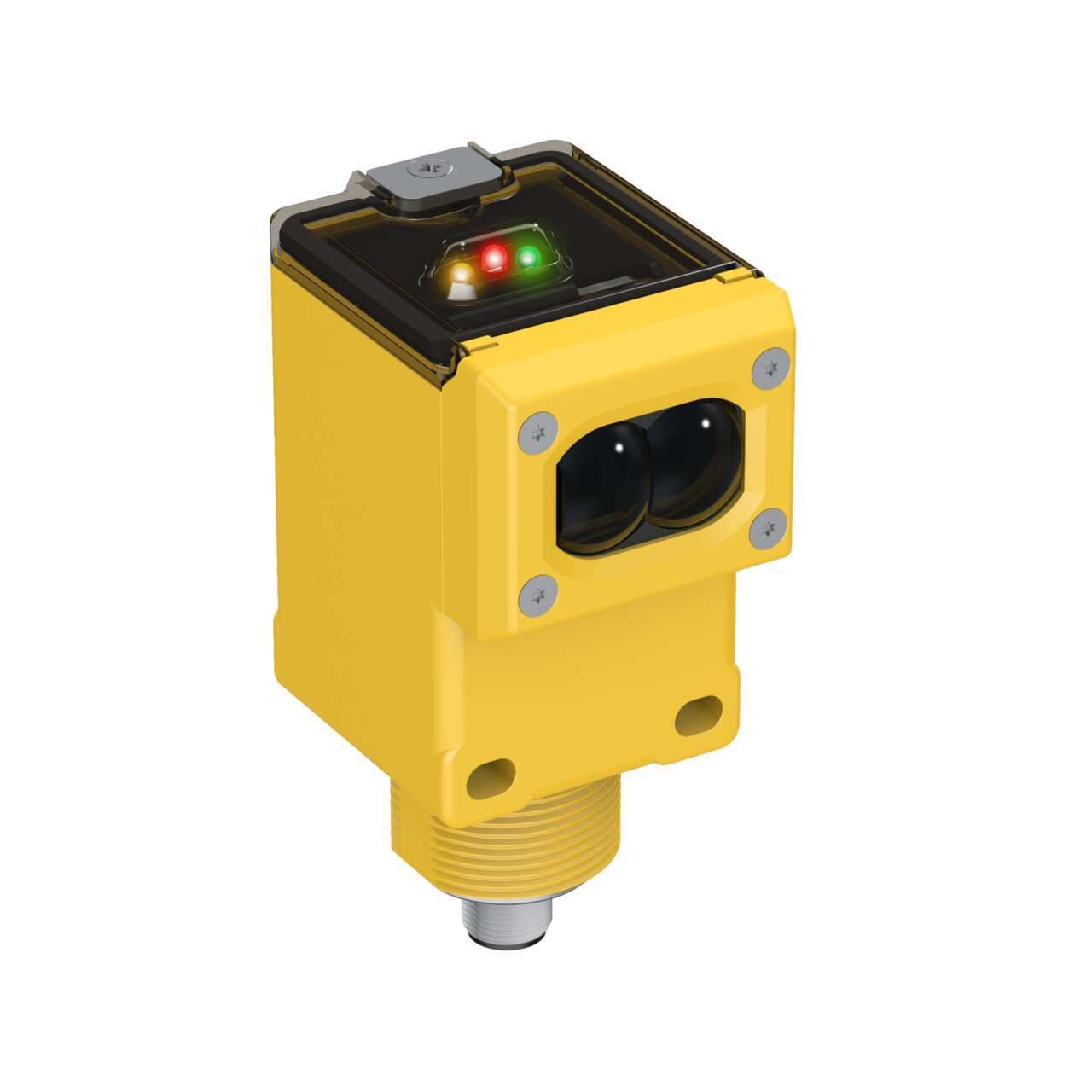

Banner Engineering Q45BB6LVQ5 is a photo-electric sensor designed for versatile applications, featuring a retro-reflective mode with potentiometer adjustment. It comes in a rectangular shape with a thermoplastic housing and an acrylic lens. This sensor is mounted using an M30 threaded mount and is equipped with a 4-pin Euro-style M12 connector for connectivity. It operates within an ambient air temperature range of -40 to +70°C and offers a sensing distance between 8cm and 9m. The Q45BB6LVQ5 operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It provides a visible red light for detection, with a wavelength of 680 nm, and supports both Light-ON and Dark-ON operating modes. The sensor has a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environments. It features a single digital output (PNP/NPN transistor) and boasts a quick response time of 2ms / 0.002 s.
