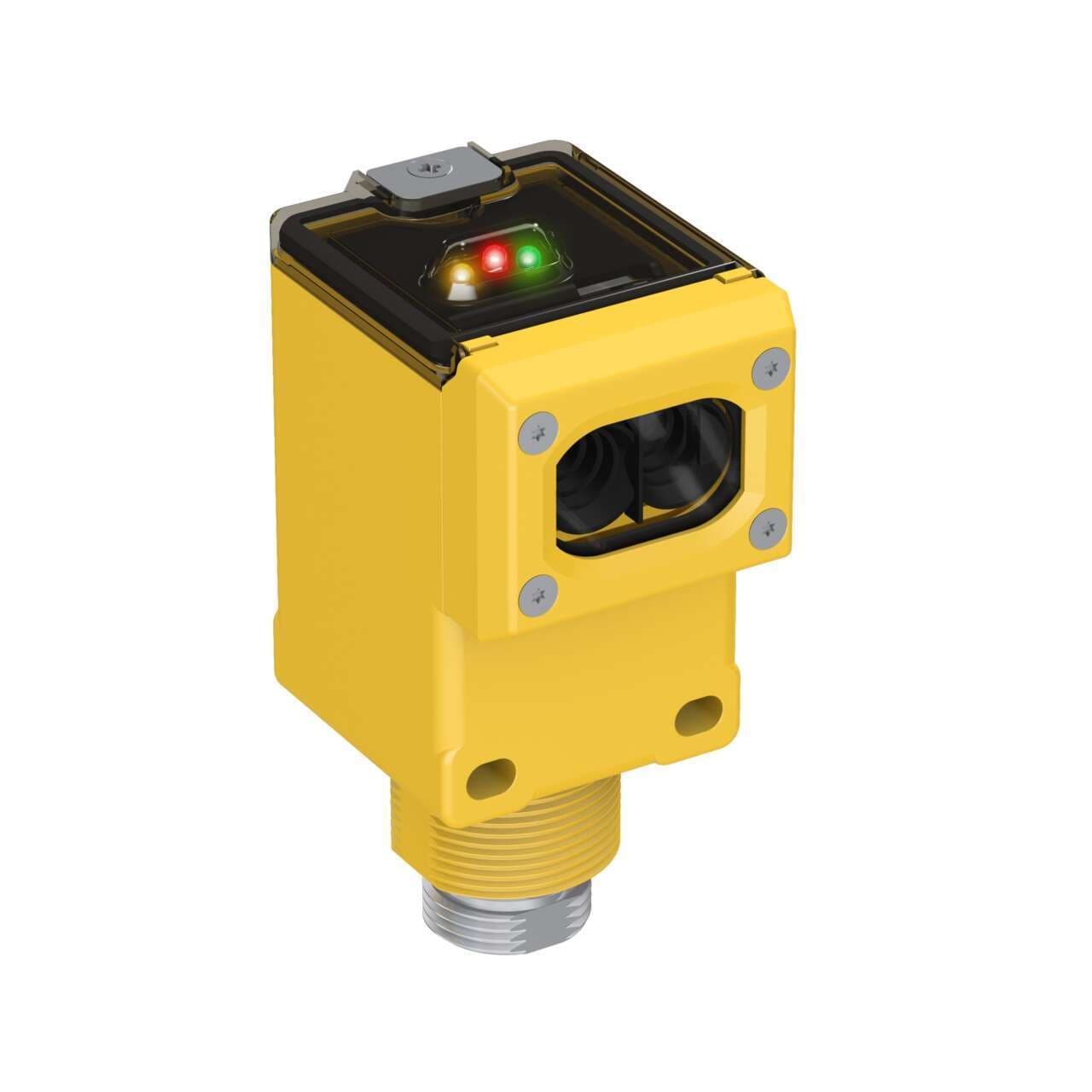

Q45BB6DQ Banner Proximity Sensors
Part#:Q45BB6DQ
Manufacturer:Banner
Alt. Part#:36728
Product Lifecycle:Active
Get a quick Quote!
Q45 Series: Diffuse; Range: 450 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin Mini Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q45BB6DQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight249.4756 g
- Country Of OriginUS
- Main function Sensor (Photo-electric)
- Wavelength 880 nm
- Mounting mode Threaded mount
- Compliant with standard(s) cURus cCSAus CE
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Product series / family name Q series
- Sensing distance 450mm
- Connection type Pre-equipped with 4-pin 7/8" Mini connector
- Response time 2ms / 0.002 s
- Functions Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Shape Rectangular
- Operating mode Light-ON Dark-ON
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Sub-range name Q45BB6
- Light Color Infrared (IR)
- Thread size M30
- Ambient air temperature for operation -40...+70 °C
- Order code / Manufacturer SKU 36728
- Design diffuse mode
- Material thermoplastic housing Acrylic lns.
- Degree of protection IP67 NEMA 6P
- Input/Output Discrete
- Primary Housing Material Thermoplastic
- Max Sensing Distance (mm) 450
- Repeatability (µs) 500
- Adjustments Potentiometer
- IO Link No
- Sensing Mode (Detailed) Diffuse
- Outputs Bipolar (NPN & PNP)
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Encapsulated No
- Operation Light/Dark Operate
- Special Feature: Water Detection No
- Number of Pins 4
- Feature: Timing (Hold/Delay) Yes
- Housing Style Rectangular
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Opposed Mode Emitter/Receiver N/A
- Feature: Audible No
- Feature: Chemical Resistant No
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -40
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 30
- Feature: Hazardous Area No
- Power DC
- Quick Disconnect Type 7/8 in. (Mini)
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- DeviceNet No
- Sensing Beam Infrared LED
- Connection Integral QD
- Output response time (ms) 2
- NEMA Rating NEMA 6P
- Indicator LEDs
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q45BB6DQ Description
Banner Engineering Q45BB6DQ is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It comes in a rectangular shape with an M30 threaded mount for easy installation. The sensor operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. It is pre-equipped with a 4-pin 7/8" mini connector for straightforward connection. The Q45BB6DQ, part of the Q45BB6 series, offers a sensing distance of 450mm and utilizes infrared light with a wavelength of 880 nm for detection. It supports both Light-ON and Dark-ON operating modes and includes a digital output (PNP/NPN transistor) for signal transmission. The sensor is powered by a supply voltage ranging from 10Vdc to 30Vdc (with 12Vdc / 24Vdc nominal) and boasts a quick response time of 2ms / 0.002 s. It is protected to IP67 NEMA 6P standards, ensuring operation in challenging environments.
Related documents Q45BB6DQ Specs
