Q45BW13CV4 Banner Electronic Components

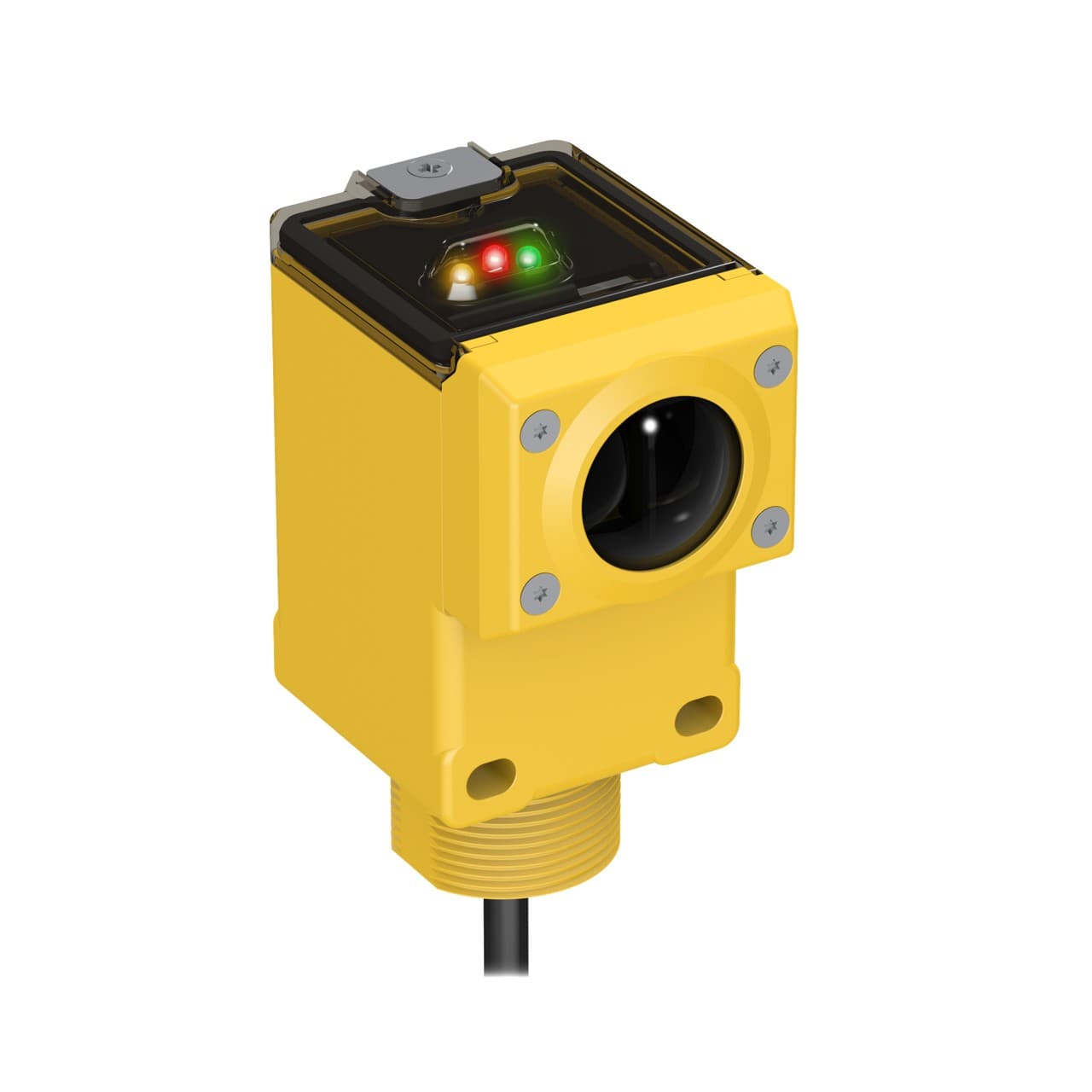

Banner Q45BW13CV4 Photo-electric sensor with convergent mode - Banner Engineering (Q series - Q45BW13) - Part #53984 - Sensing range 100mm - Visible red light (680nm) - 1 x digital output (Solid-state AC output; SPST contact type) (Light-ON or Dark-ON operation) - Supply v
Banner

Part#:Q45BW13CV4

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

Photo-electric sensor with convergent mode - Banner Engineering (Q series - Q45BW13) - Part #53984 - Sensing range 100mm - Visible red light (680nm) - 1 x digital output (Solid-state AC output; SPST contact type) (Light-ON or Dark-ON operation) - Supply v

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q45BW13CV4 Banner price in the box on the right side or send a quick quote.

Product Details

  • Sub-range name
    Q45BW13
  • Supply voltage (DC)
    12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nom.)
  • Thread size
    M30
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Degree of protection
    IP67 NEMA 6P
  • Product series / family name
    Q series
  • Design
    convergent mode
  • Digital outputs
    1 x digital output (Solid-state AC output; SPST contact type)
  • Compliant with standard(s)
    cURus CCC cCSAus CE
  • Supply voltage (AC)
    24Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
  • Wavelength
    680 nm
  • Light Color
    Visible red
  • Response time
    2ms / 0.002 s
  • Order code / Manufacturer SKU
    53984
  • Primary brand
    Banner Engineering
  • Functions
    Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
  • Shape
    Rectangular
  • Operating mode
    Light-ON Dark-ON
  • Ambient air temperature for operation
    -25...+55 °C
  • Main function
    Sensor (Photo-electric)
  • Sensing distance
    100mm
  • Mounting mode
    Threaded mount
  • Material
    thermoplastic housing Acrylic lns.
  • Output response time (ms)
    2
  • Adjustments
    Potentiometer
  • DeviceNet
    No
  • Connection
    Cable
  • Max Sensing Distance (mm)
    100
  • Min Op. Temp. (°C)
    -25
  • Sensing Beam Wavelength
    680
  • NEMA Rating
    NEMA 6P
  • Feature: Hazardous Area
    No
  • Sensing Mode (Detailed)
    Convergent
  • Operation
    Light/Dark Operate
  • Delay at Power-up (ms)
    100
  • Opposed Mode Emitter/Receiver
    N/A
  • Power
    AC/DC Universal
  • Quick Disconnect Type
    No QD
  • Cable Length (m)
    2
  • Number of Pins
    4
  • Feature: Timing (Hold/Delay)
    Yes
  • Input/Output
    Solid-State AC Switch
  • Max Op. Temp. (°C)
    55
  • IP Rating
    IP67
  • Feature: Encapsulated
    No
  • Sensing Mode (General)
    Proximity
  • Sensing Beam
    Visible Red LED
  • Special Feature: Intrinsically Safe
    No
  • Lens Material
    Acrylic
  • Feature: Chemical Resistant
    No
  • Primary Housing Material
    Thermoplastic
  • Power Supply/Supply Voltage
    12-250 V dc or 24-250 V ac
  • Special Feature: Remote Teach
    No
  • Barrel Diameter (mm)
    30
  • Housing Style
    Rectangular
  • Outputs
    Solid-State AC Switch
  • Special Feature: Water Detection
    No
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • IO Link
    No
  • Repeatability (µs)
    500
  • Indicator
    LEDs
  • Feature: Audible
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

1-year warranty
