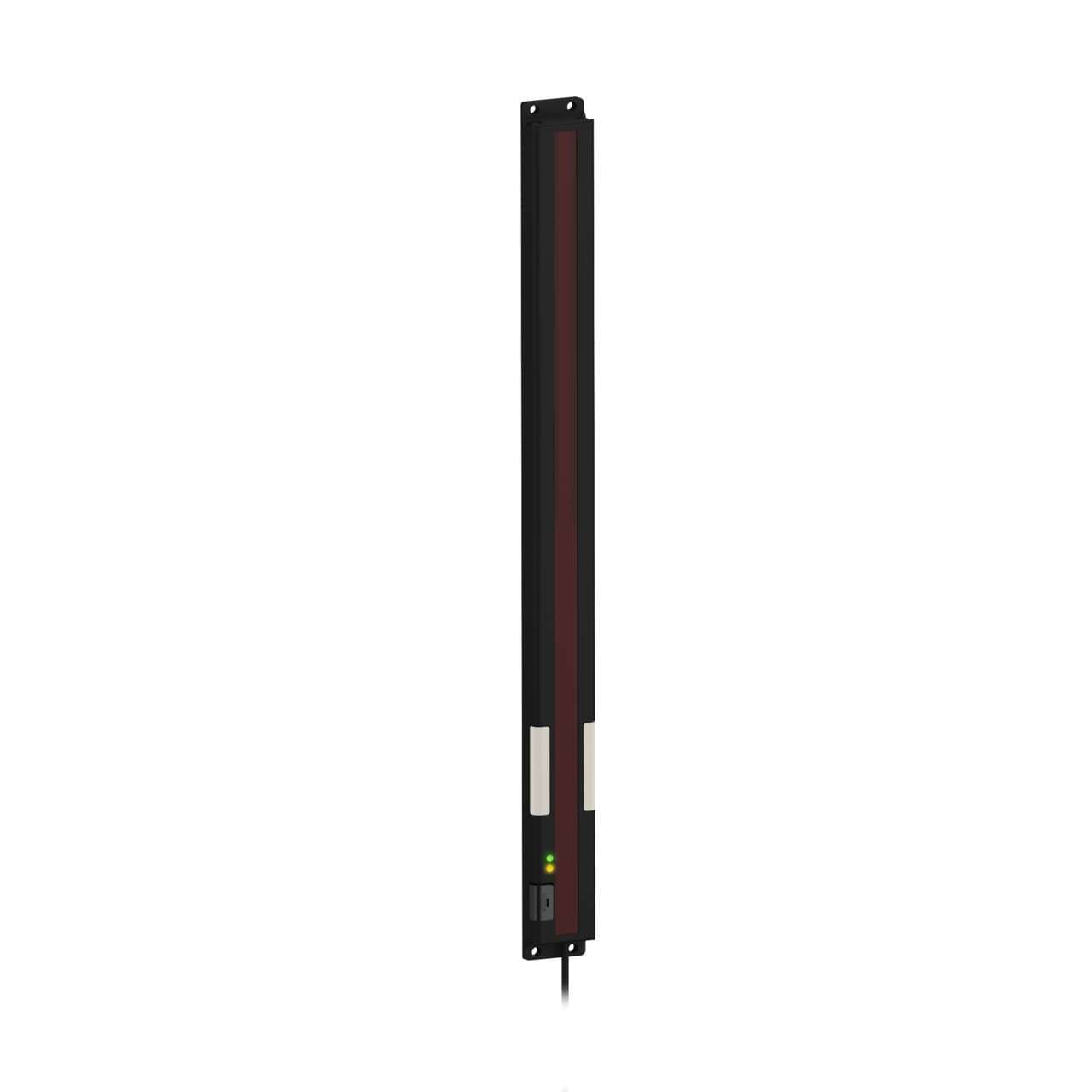

PVA375N6R Banner Optical Sensors

Name: PVA375N6R
Brand: Banner

Banner PVA375N6R PVA Series: 375 mm Array - Receiver; Range: 2 m; Input: 12-30 V dc; Output: 1 NPN Programmable for LO/DO; 2 m (6.5 ft) Integral Cable

Part#:PVA375N6R

Manufacturer:Banner

Alt. Part#:51912

Product Lifecycle:Active

Get a quick Quote!

PVA Series: 375 mm Array - Receiver; Range: 2 m; Input: 12-30 V dc; Output: 1 NPN Programmable for LO/DO; 2 m (6.5 ft) Integral Cable

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PVA375N6R Banner price in the box on the right side or send a quick quote.

Product Details

Weight408.2328 g
Country Of OriginMX
Cable Length (m)
2
Number of Colors / Segments
1
Number of Input Pins/Conductors
4
Number of Beams
16
Feature: Audible
No
Product Size (mm)
Other
Supply Voltage
12-30 V dc
Environmental Rating
IP62
IO Link
No
Power
DC
Actuation
Yes
Color Technology
Standard LED
Output Type
NPN
NEMA Type and UL Type Rating
NEMA 2
Modbus RTU
No
Primary Housing Material
Aluminum
Mounting Thread
No Thread
Input Type
Bimodal (PNP/NPN)

Primary Housing Color

Black

Wireless

Activation Function

Optical

Max Current Color (mA)

Physical Dimensions (LxWxH or DxH mm)

416.6 x 30.0 x 15.0

Sensing Resolution (mm)

35.0

Sensing Mode (General)

Opposed

Animation Option 1

Dip-Switch Controlled

Max Output Response Time (ms)

Button Operation

Momentary

Job Light

Green

Beam Spacing (mm)

25.0

Feature: Chemical Resistant

Power Source

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Operation

Normally Open/Normally Closed

Sensing Mode (Detailed)

Receiver

Color Option 1

Green

Sensing Array Length (mm)

375

Primary Window Material

Acrylic Clear

Array Length (mm)

375.0

Feature: Hazardous Area

Housing Style

Flat Mount - Array

Connection

Cable

Maximum Sensing Distance (mm)

2000

Max Op. Temperature (°C)

Pro-Editor Compatible (Discrete)

Feature: Quick Disconnect

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

PVA375N6R Description

Banner Engineering PVA375N6R is a photo-electric array sensor designed for a variety of applications. This sensor operates within an ambient air temperature of up to +50°C and features a pre-wired 2m cable with bare end flying leads for connection. It has a rectangular shape with dimensions of 375mm in array length, 30mm in width, and a net depth of 417mm, housed in aluminium with an acrylic window. The PVA375N6R offers a sensing distance of 2m (2000mm) with a green light color and a 25mm beam spacing/pitch. It is protected to IP62 NEMA 2 standards, ensuring durability in certain environments. This sensor operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and has a current consumption of 62mA (0.062 A). It also includes 1 x digital output (PNP transistor) for signaling and control.
