PVA300N6 Banner Optical Sensors
Part#:PVA300N6
Manufacturer:Banner
Alt. Part#:52910
Product Lifecycle:Active
In-stock parts: 1
Jun 20, 2025

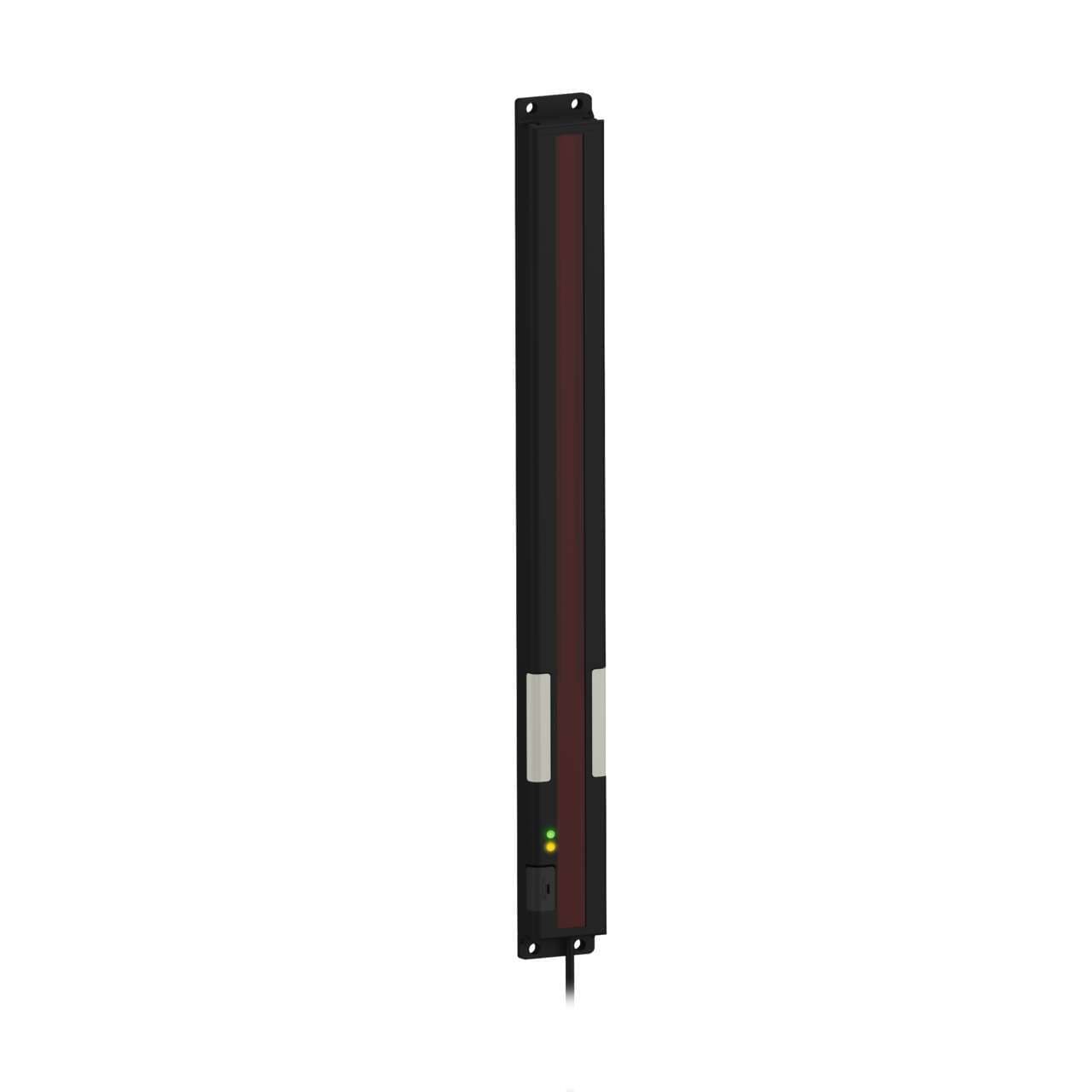

PVA Series: 300 mm Array Pair - Emitter/Receiver; Range: 2 m; Input: 12-30 V dc; Output: 1 NPN (on receiver); 2 m (6.5 ft) Integral Cables
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PVA300N6 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight798.32192 g
- Country Of OriginUS
- Main function Sensor (Array)
- Operating mode NO (Normally Open) NC (Normally Closed)
- Current consumption 62mA / 0.062 A
- Net Height (mm) (sensing height) 11.8" / 300 mm
- Maximum temperature 50 °C
- Primary brand Banner Engineering
- Product series / family name PVA
- Sensing distance 2m / 2000 mm
- Digital outputs 1 x digital output (NPN transistor)
- Ambient air temperature for operation 0...+50 °C
- Order code / Manufacturer SKU 52910
- Length (m) (cable) 2 m
- Supply voltage (DC) 12-30Vdc (12Vdc-24Vdc nom.)
- Mounting mode Surface Pole
- Material Acrylic Clear (window) Aluminum (housing)
- Visual position indicator green LED (power ON) yellow LED (output state) red LED (frequency selected)
- Functions Flat-mount array optical sensor for error-proofing of bin handpicking operations - through-beam sensing emitter+receiver pair
- Degree of protection IP62 NEMA 2
- Compliant with standard(s) CE cULus Listed
- Technology used in component LED
- Length (mm) (array) 300 mm
- Frame color Black
- Connection type Pre-wired bare end flying leads
- Supply voltage (DC) 12-30 V
- Light Color Green
- Distance (beam spacing) 25mm
- Power Source DC
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Supply Voltage 12-30 V dc
- Button Operation Momentary
- Sensing Resolution (mm) 35.0
- Mounting Thread No Thread
- Operation Normally Open/Normally Closed
- Number of Beams 13
- Feature: Audible No
- Primary Housing Material Aluminum
- Color Technology Standard LED
- Number of Input Pins/Conductors 4
- Environmental Rating IP62
- Wireless No
- Modbus RTU No
- Cable Length (m) 2
- Product Size (mm) Other
- Sensing Array Length (mm) 300
- Max Output Response Time (ms) 52
- Feature: Chemical Resistant No
- Array Length (mm) 300.0
- Maximum Sensing Distance (mm) 2000
- IO Link No
- Sensing Mode (Detailed) Emitter/Receiver Pair
- Number of Colors / Segments 1
- Power DC
- Color Option 1 Green
- Beam Spacing (mm) 25.0
- Primary Housing Color Black
- Primary Window Material Acrylic Clear
- Housing Style Flat Mount - Array
- Animation Option 1 Dip-Switch Controlled
- Physical Dimensions (LxWxH or DxH mm) 341.4 x 30.0 x 15.0
- Max Op. Temperature (°C) 50
- Pro-Editor Compatible (Discrete) No
- Activation Function Optical
- Max Current Color (mA) 62
- Input Type Bimodal (PNP/NPN)
- NEMA Type and UL Type Rating NEMA 2
- Job Light Green
- Sensing Mode (General) Opposed
- Actuation Yes
- Connection Cable
- Output Type NPN
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PVA300N6 Description
Banner Engineering PVA300N6 is a photo-electric array sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature of up to +50°C and is housed in an aluminium casing with an acrylic window for durability. It features a pre-wired 2m cable with bare end flying leads for easy installation. The PVA300N6 has dimensions of 300mm in array length, 30mm in width, and 342mm in depth, offering a compact form factor. It provides a sensing distance of up to 2m with a 25mm beam spacing/pitch and emits a green light for detection. This sensor is protected to IP62 NEMA 2 standards, ensuring protection against dust and water ingress. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 62mA. Additionally, it includes 1 x digital output (NPN transistor) for signal processing.
