PVA300P6Q Banner Optical Sensors
Part#:PVA300P6Q
Manufacturer:Banner
Alt. Part#:52911
Product Lifecycle:Active
Get a quick Quote!
PVA Series: 300 mm Array Pair - Emitter/Receiver; Range: 2 m; Input: 12-30 V dc; Output: 1 PNP (on receiver); 2 m M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PVA300P6Q Banner price in the box on the right side or send a quick quote.
Product Details
- Weight816.4656 g
- Country Of OriginUS
- Sensing Mode (Detailed) Emitter/Receiver Pair
- Sensing Mode (General) Opposed
- Housing Style Flat Mount - Array
- Cable Length (m) 0.15
- Power Source DC
- Power DC
- Activation Function Optical
- Connection Pigtail QD
- Array Length (mm) 300.0
- Primary Window Material Acrylic Clear
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Maximum Sensing Distance (mm) 2000
- Button Operation Momentary
- Color Technology Standard LED
- Number of Input Pins/Conductors 4
- Number of Beams 13
- Sensing Resolution (mm) 35.0
- Color Option 1 Green
- Input Type Bimodal (PNP/NPN)
- Primary Housing Color Black
- IO Link No
- Number of Colors / Segments 1
- Supply Voltage 12-30 V dc
- Beam Spacing (mm) 25.0
- Feature: Hazardous Area No
- Animation Option 1 Dip-Switch Controlled
- Mounting Thread No Thread
- Feature: Chemical Resistant No
- Job Light Green
- Primary Housing Material Aluminum
- Max Output Response Time (ms) 52
- Environmental Rating IP62
- Modbus RTU No
- Max Op. Temperature (°C) 50
- Product Size (mm) Other
- Max Current Color (mA) 62
- Feature: Audible No
- Actuation Yes
- Output Type PNP
- NEMA Type and UL Type Rating NEMA 2
- Sensing Array Length (mm) 300
- Physical Dimensions (LxWxH or DxH mm) 341.4 x 30.0 x 15.0
- Operation Normally Open/Normally Closed
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PVA300P6Q Description

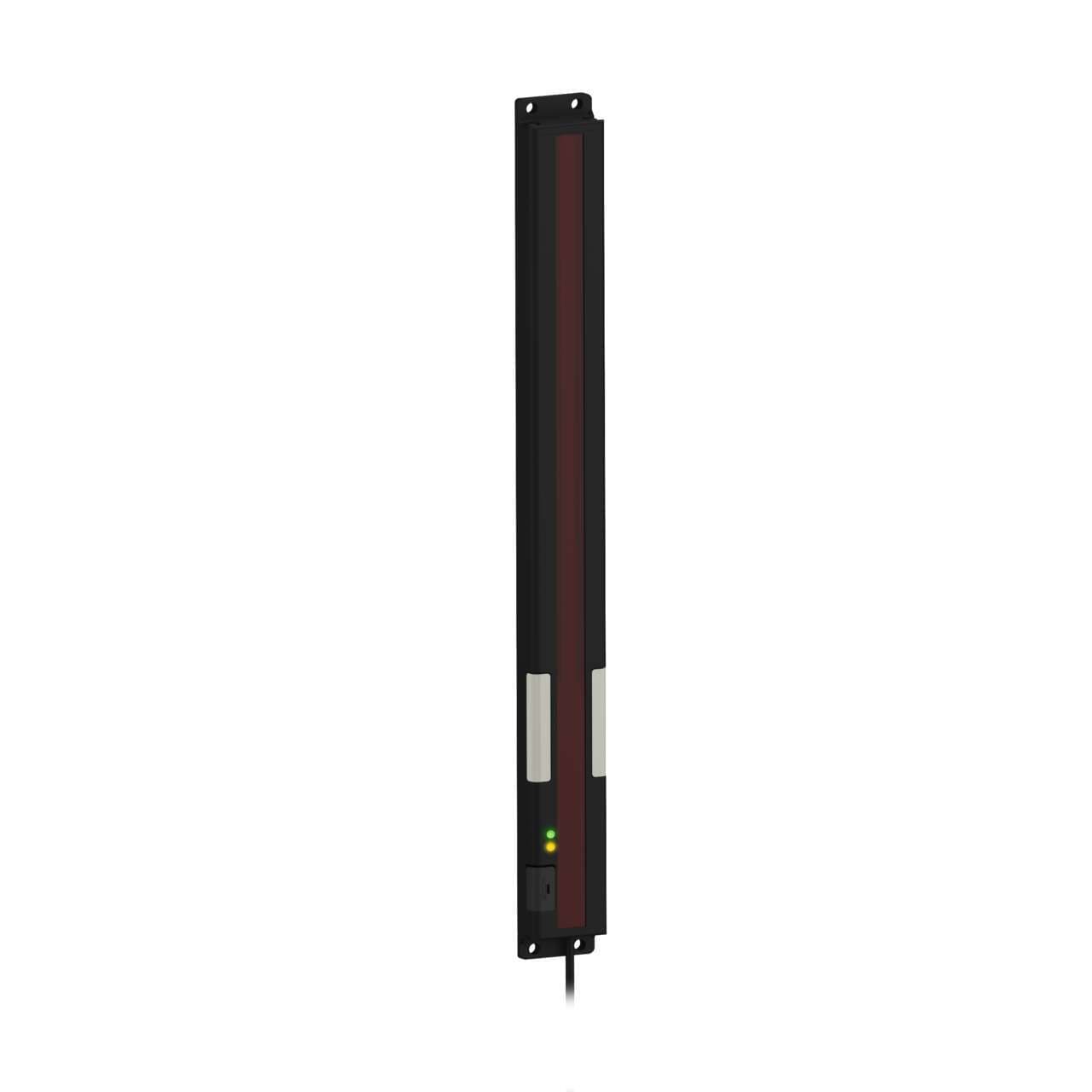

Banner Engineering PVA300P6Q is a photo-electric array sensor designed for a variety of applications requiring precise detection. This sensor features an emitter and receiver pair with a sensing distance of up to 2 meters and operates within an ambient air temperature of up to +50°C. It has a rectangular shape with dimensions of 300mm in array length, 30mm in width, and a net depth of 342mm, housed in aluminum with an acrylic window for durability. The PVA300P6Q is pre-wired with a 15" (381mm) pigtail terminated with a 4-pin M12 connector for easy installation. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The sensor offers a degree of protection rated at IP62 NEMA 2, ensuring protection against dust and dripping water. It features a green light color with a 25mm beam spacing/pitch for clear visibility. The operating modes include Light-ON, Dark-ON, Normally Open (NO), and Normally Closed (NC), along with 1 x digital output (PNP transistor) for versatile application use.
Related documents PVA300P6Q Specs
