PVA300P6EQ W/6IN Banner Electronic Components
Part#:PVA300P6EQ W/6IN
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

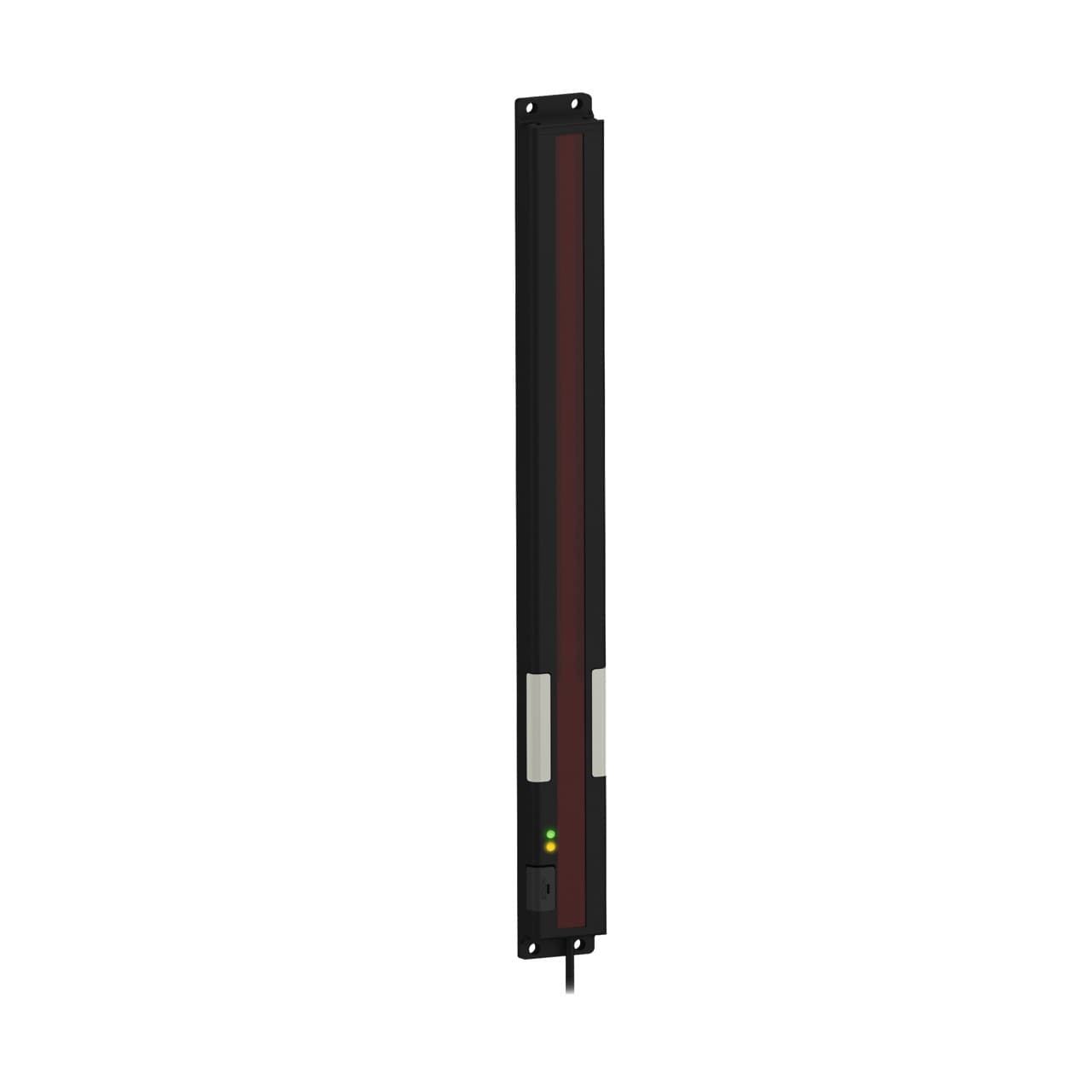

Banner Engineering PVA300P6EQ W/6IN is a photo-electric array sensor designed for various automation applications. This emitter-alone sensor operates within an ambient air temperature of +50°C and features a net height of 15 mm. It comes pre-wired with a 2m pigtail terminated with a 4-pin M12 connector for easy integration. The sensor has a rectangular shape with dimensions including a 300mm array length, a net width of 30 mm, and a net depth of 342 mm, ensuring a compact fit for tight spaces. It is encased in an aluminium housing with an acrylic window, providing a degree of protection rated at IP62 NEMA 2 against dust and water ingress. The PVA300P6EQ W/6IN operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 62mA. It features a sensing distance of up to 2m (2000mm) with a green light color and a 25mm beam spacing/pitch. Additionally, it is equipped with 1 x digital output (PNP transistor) for signal processing.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PVA300P6EQ W/6IN Banner price in the box on the right side or send a quick quote.
Product Details
- Power DC
- Mounting Thread No Thread
- Supply Voltage 12-30 V dc
- Modbus RTU No
- Sensing Mode (Detailed) Emitter
- Primary Housing Material Aluminum
- Number of Input Pins/Conductors 4
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Activation Function Optical
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Number of Beams 13
- Feature: Hazardous Area No
- Housing Style Flat Mount - Array
- Color Technology Standard LED
- Job Light Green
- Cable Length (m) 0.15
- Number of Colors / Segments 1
- Input Type Bimodal (PNP/NPN)
- Array Length (mm) 300.0
- Feature: Audible No
- Sensing Mode (General) Opposed
- Color Option 1 Green
- Max Output Response Time (ms) 52
- Beam Spacing (mm) 25.0
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Actuation Yes
- Connection Pigtail QD
- Physical Dimensions (LxWxH or DxH mm) 341.4 x 30.0 x 15.0
- Sensing Resolution (mm) 35.0
- Product Size (mm) Other
- Max Current Color (mA) 62
- Environmental Rating IP62
- IO Link No
- Animation Option 1 Dip-Switch Controlled
- Maximum Sensing Distance (mm) 2000
- Primary Window Material Acrylic Clear
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- NEMA Type and UL Type Rating NEMA 2
- Wireless No
- Sensing Array Length (mm) 300
- Button Operation Momentary
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents PVA300P6EQ W/6IN Specs
