PVA375N6Q Banner Optical Sensors

Banner PVA375N6Q PVA Series: 375 mm Array Pair - Emitter/Receiver; Range: 2 m; Input: 12-30 V dc; Output: 1 NPN (on receiver); M12 Pigtail QD
Banner

Part#:PVA375N6Q

Manufacturer:Banner

Alt. Part#:52916

Product Lifecycle:Active

Get a quick Quote!

PVA Series: 375 mm Array Pair - Emitter/Receiver; Range: 2 m; Input: 12-30 V dc; Output: 1 NPN (on receiver); M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PVA375N6Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight889.04032 g
  • Country Of OriginUS
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Mounting Thread
    No Thread
  • Operation
    Normally Open/Normally Closed
  • Physical Dimensions (LxWxH or DxH mm)
    416.6 x 30.0 x 15.0
  • Job Light
    Green
  • Power
    DC
  • Quick Disconnect Type
    M12 (Euro)
  • Maximum Sensing Distance (mm)
    2000
  • Cable Length (m)
    2
  • Number of Colors / Segments
    1
  • Number of Input Pins/Conductors
    4
  • Sensing Array Length (mm)
    375
  • Primary Housing Material
    Aluminum
  • Output Type
    NPN
  • Activation Function
    Optical
  • Color Option 1
    Green
  • Input Type
    Bimodal (PNP/NPN)
  • IO Link
    No
  • Power Source
    DC
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    62
  • Sensing Mode (General)
    Opposed
  • Animation Option 1
    Dip-Switch Controlled
  • Max Output Response Time (ms)
    64
  • Actuation
    Yes
  • Connection
    Pigtail QD
  • Array Length (mm)
    375.0
  • Housing Style
    Flat Mount - Array
  • Product Size (mm)
    Other
  • Supply Voltage
    12-30 V dc
  • Number of Beams
    16
  • Beam Spacing (mm)
    25.0
  • Button Operation
    Momentary
  • Primary Window Material
    Acrylic Clear
  • Feature: Hazardous Area
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Max Op. Temperature (°C)
    50
  • NEMA Type and UL Type Rating
    NEMA 2
  • Sensing Resolution (mm)
    35.0
  • Primary Housing Color
    Black
  • Wireless
    No
  • Feature: Chemical Resistant
    No
  • Environmental Rating
    IP62
  • Feature: Audible
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

PVA375N6Q Description

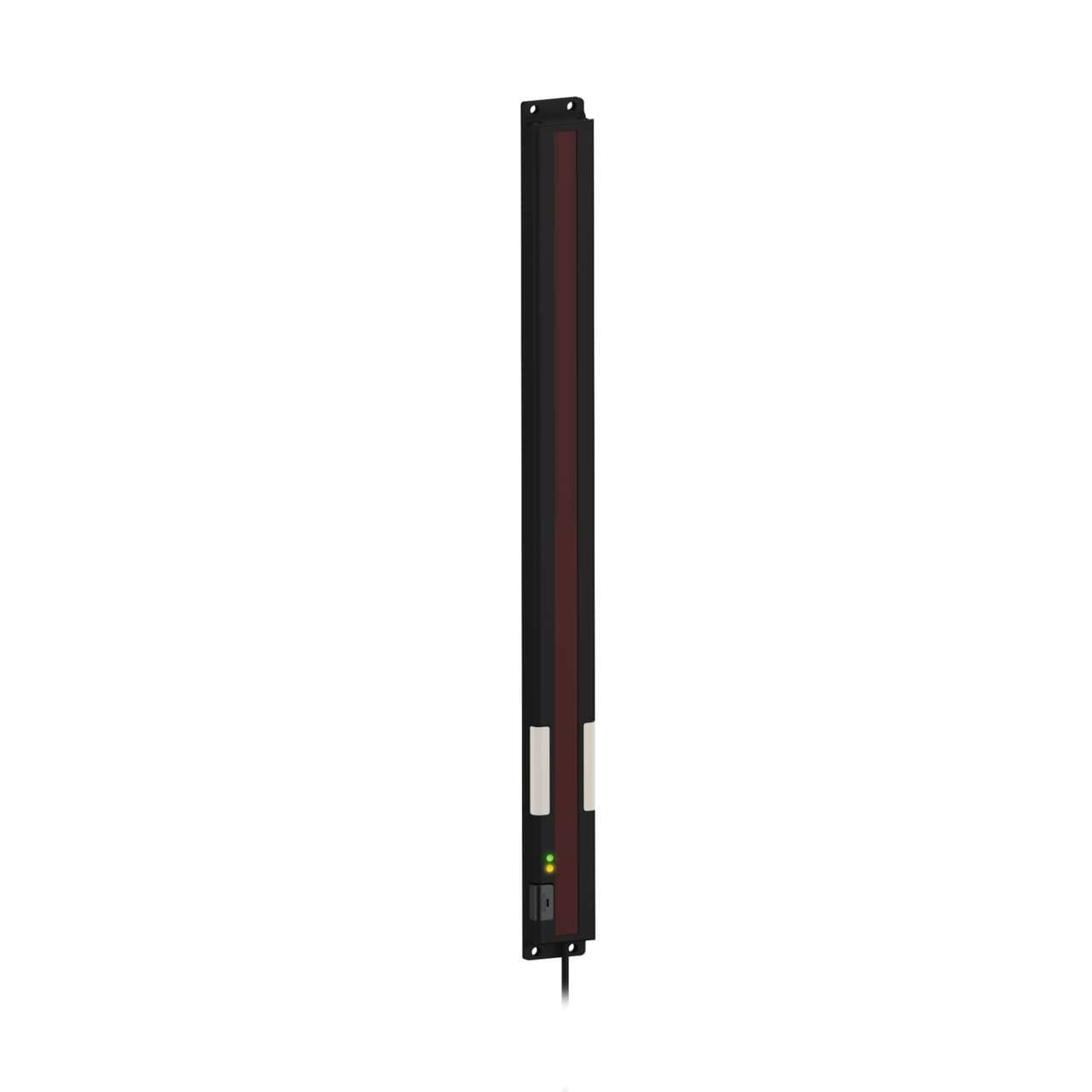

Banner Engineering PVA375N6Q is a photo-electric array sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature of up to +50°C and is housed in an aluminium casing with an acrylic window for durability. It features a pre-wired 2m cable with bare end flying leads for connectivity and boasts dimensions of 375mm in array length, 30mm in width, and a net depth of 417mm. The PVA375N6Q offers a sensing distance of 2m and utilizes green light with a 25mm beam spacing/pitch for detection. It is equipped with a single digital output (PNP transistor) and operates in both Light-ON and Dark-ON modes, with Normally Open (NO) and Normally Closed (NC) configurations. The sensor requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and has a current consumption of 62mA. It is protected to IP62 NEMA 2 standards, ensuring its operation in various environments.
