PVA300N6E Banner Optical Sensors
Part#:PVA300N6E
Manufacturer:Banner
Alt. Part#:51927
Product Lifecycle:Active
Get a quick Quote!

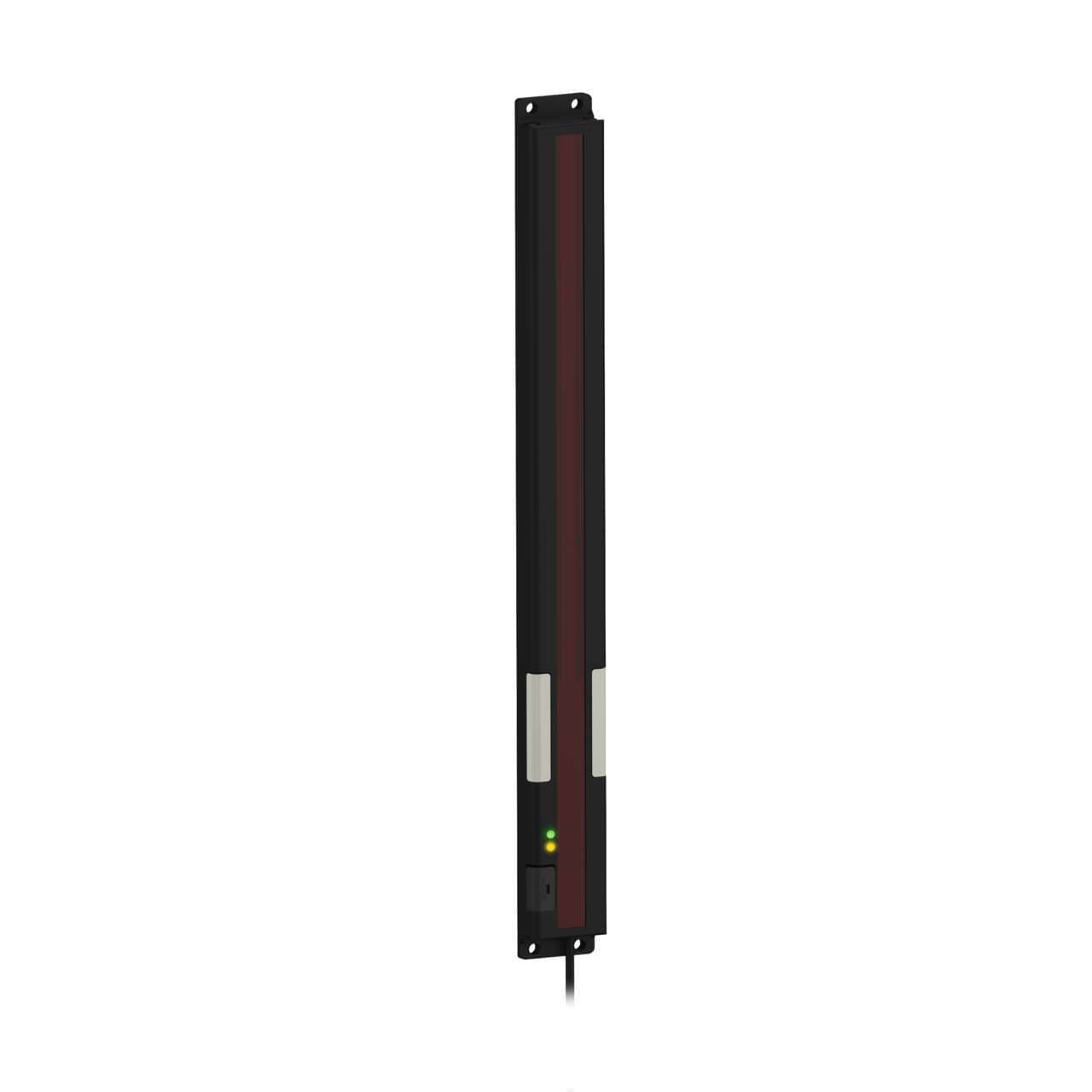

PVA Series: 300 mm Array - Emitter; Range: 2 m; Input: 12-30 V dc; Output: Not Applicable; 2 m (6.5 ft) Integral Cable
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PVA300N6E Banner price in the box on the right side or send a quick quote.
Product Details
- Weight367.40952 g
- Country Of OriginMX
- Main function Sensor (Array)
- Connection type Pre-wired bare end flying leads
- Degree of protection IP62 NEMA 2
- Product series / family name PVA
- Supply voltage (DC) 12-30Vdc (12Vdc-24Vdc nom.)
- Digital outputs 4 x digital outputs (12-30Vdc; NPN)
- Supply voltage (DC) 12-30 V
- Sensing distance 2m / 2000 mm
- Mounting mode Surface Pole
- Technology used in component LED
- Length (mm) (array) 300 mm
- Net Height (mm) (sensing height) 11.8" / 300 mm
- Primary brand Banner Engineering
- Frame color Black
- Material Acrylic Clear (window) Aluminum (housing)
- Current consumption 62mA / 0.062 A
- Distance (beam spacing) 25mm
- Functions Flat-mount array optical sensor for error-proofing of bin handpicking operations - through-beam sensing emitter only
- Compliant with standard(s) CE cULus Listed
- Ambient air temperature for operation 0...+50 °C
- Maximum temperature 50 °C
- Visual position indicator green LED (power ON) red LED (frequency selected)
- Length (m) (cable) 2 m
- Order code / Manufacturer SKU 51927
- Light Color Green
- Sensing Mode (General) Opposed
- Primary Housing Material Aluminum
- Connection Cable
- Sensing Array Length (mm) 300
- Button Operation Momentary
- Pro-Editor Compatible (Discrete) No
- Actuation Yes
- Color Technology Standard LED
- Input Type Bimodal (PNP/NPN)
- Primary Housing Color Black
- Feature: Chemical Resistant No
- Mounting Thread No Thread
- Housing Style Flat Mount - Array
- Number of Input Pins/Conductors 4
- Number of Beams 13
- Feature: Audible No
- NEMA Type and UL Type Rating NEMA 2
- Wireless No
- Power Source DC
- Number of Colors / Segments 1
- Max Output Response Time (ms) 52
- Animation Option 1 Dip-Switch Controlled
- Array Length (mm) 300.0
- Primary Window Material Acrylic Clear
- Job Light Green
- Activation Function Optical
- Sensing Mode (Detailed) Emitter
- Color Option 1 Green
- Physical Dimensions (LxWxH or DxH mm) 341.4 x 30.0 x 15.0
- Feature: Hazardous Area No
- Power DC
- Product Size (mm) Other
- Maximum Sensing Distance (mm) 2000
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Cable Length (m) 2
- Max Current Color (mA) 62
- Beam Spacing (mm) 25.0
- Sensing Resolution (mm) 35.0
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Supply Voltage 12-30 V dc
- Environmental Rating IP62
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PVA300N6E Description
Banner Engineering PVA300N6E is a photo-electric array sensor designed for a variety of applications. This sensor operates within an ambient air temperature of up to +50°C and features a net height of 15 mm. It comes pre-wired with a 2m pigtail that terminates with a 4-pin M12 connector. The dimensions of this sensor include a 300mm array length, with a rectangular shape, and it is housed in aluminium with an acrylic window. The net width and depth are 30 mm and 342 mm, respectively. It offers a sensing distance of 2m (2000mm) with a green light color and a 25mm beam spacing/pitch. The PVA300N6E is protected to IP62 NEMA 2 standards, requires a supply voltage of 12Vdc-30Vdc (24Vdc nominal), and has a current consumption of 62mA (0.062 A). Additionally, it features 1 x digital output (NPN transistor) for signaling.
Related documents PVA300N6E Specs
