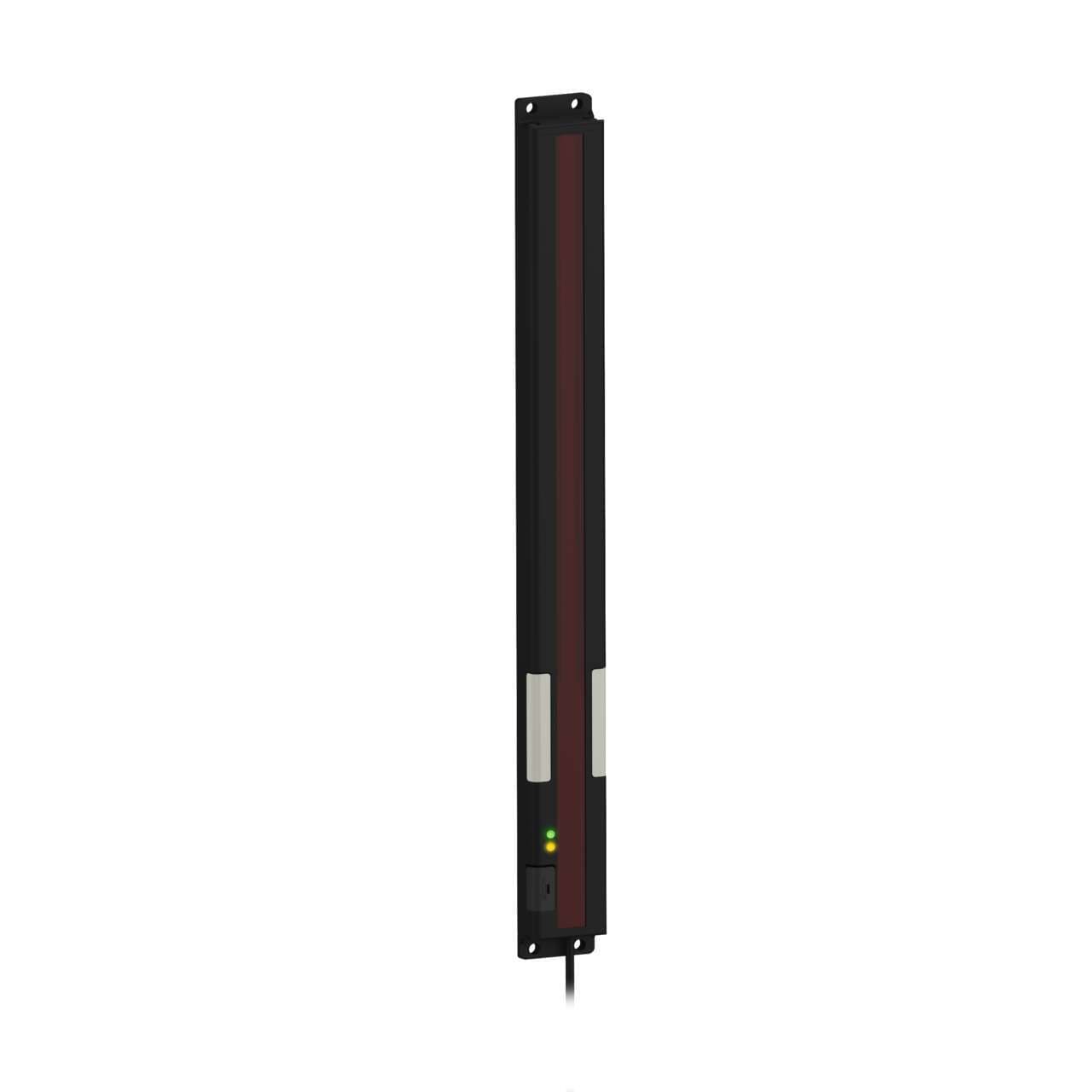

PVA300N6EQ Banner Optical Sensors
Part#:PVA300N6EQ
Manufacturer:Banner
Alt. Part#:51931
Product Lifecycle:Active
Get a quick Quote!
PVA Series: 300 mm Array - Emitter; Range: 2 m; Input: 12-30 V dc; Output: Not Applicable; M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PVA300N6EQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight362.8736 g
- Country Of OriginMX
- Primary brand Banner Engineering
- Supply voltage (DC) 12-30Vdc (12Vdc-24Vdc nom.)
- Degree of protection IP62 NEMA 2
- Product series / family name PVA
- Connection type Pre-wired (pigtail) 4-pin M12 connector
- Ambient air temperature for operation 0...+50 °C
- Functions Flat-mount array optical sensor for error-proofing of bin handpicking operations - through-beam sensing emitter only
- Mounting mode Surface Pole
- Compliant with standard(s) CE cULus Listed
- Order code / Manufacturer SKU 51931
- Length (mm) (array) 300 mm
- Sensing distance 2m / 2000 mm
- Digital outputs 4 x digital outputs (12-30Vdc; NPN)
- Main function Sensor (Array)
- Frame color Black
- Material Acrylic Clear (window) Aluminum (housing)
- Light Color Green
- Length (m) (cable) 2 m
- Technology used in component LED
- Supply voltage (DC) 12-30 V
- Visual position indicator green LED (power ON) red LED (frequency selected)
- Distance (beam spacing) 25mm
- Current consumption 62mA / 0.062 A
- Net Height (mm) (sensing height) 11.8" / 300 mm
- Maximum temperature 50 °C
- Power Source DC
- Product Size (mm) Other
- Maximum Sensing Distance (mm) 2000
- Primary Housing Color Black
- Feature: Chemical Resistant No
- Sensing Mode (General) Opposed
- Color Technology Standard LED
- Sensing Array Length (mm) 300
- Primary Window Material Acrylic Clear
- IO Link No
- NEMA Type and UL Type Rating NEMA 2
- Modbus RTU No
- Cable Length (m) 2
- Mounting Thread No Thread
- Number of Input Pins/Conductors 4
- Sensing Mode (Detailed) Emitter
- Color Option 1 Green
- Array Length (mm) 300.0
- Button Operation Momentary
- Job Light Green
- Housing Style Flat Mount - Array
- Quick Disconnect Type M12 (Euro)
- Input Type Bimodal (PNP/NPN)
- Number of Beams 13
- Wireless No
- Activation Function Optical
- Connection Pigtail QD
- Max Output Response Time (ms) 52
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Power DC
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Supply Voltage 12-30 V dc
- Environmental Rating IP62
- Feature: Hazardous Area No
- Actuation Yes
- Number of Colors / Segments 1
- Max Current Color (mA) 62
- Beam Spacing (mm) 25.0
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Aluminum
- Animation Option 1 Dip-Switch Controlled
- Physical Dimensions (LxWxH or DxH mm) 341.4 x 30.0 x 15.0
- Sensing Resolution (mm) 35.0
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PVA300N6EQ Description
Banner Engineering PVA300N6EQ is a photo-electric array sensor designed for precise object detection and measurement tasks. This sensor operates within an ambient air temperature of up to +50°C and features a net height of 15 mm. It comes pre-wired with a 2m cable that terminates with bare end flying leads, facilitating easy integration into various systems. The sensor's dimensions include a 300mm array length, a net width of 30 mm, and a net depth of 342 mm, housed in a durable aluminium casing with an acrylic window for the sensor array. It offers a degree of protection rated at IP62 NEMA 2, ensuring protection against dust and water ingress in challenging environments. The PVA300N6EQ operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has a rectangular shape optimized for installation in limited spaces. It can detect objects within a 2m sensing distance, featuring a green light color for the sensing beam with a 25mm beam spacing/pitch. This sensor supports both Normally Open (NO) and Normally Closed (NC) operating modes and includes 1 x digital output (NPN transistor) for signal processing. The current consumption is rated at 62mA / 0.062 A, making it a low-power option for continuous operation in automated systems.
