PVA300N6RQ Banner Optical Sensors
Part#:PVA300N6RQ
Manufacturer:Banner
Alt. Part#:51923
Product Lifecycle:Active
Get a quick Quote!
PVA Series: 300 mm Array - Receiver; Range: 2 m; Input: 12-30 V dc; Output: 1 NPN Programmable for LO/DO; M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PVA300N6RQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight366.955928 g
- Country Of OriginMX
- NEMA Type and UL Type Rating NEMA 2
- Feature: Audible No
- Primary Housing Material Aluminum
- Product Size (mm) Other
- Input Type Bimodal (PNP/NPN)
- Sensing Mode (General) Opposed
- Number of Colors / Segments 1
- Max Output Response Time (ms) 52
- Max Op. Temperature (°C) 50
- Pro-Editor Compatible (Discrete) No
- Housing Style Flat Mount - Array
- Color Technology Standard LED
- Number of Input Pins/Conductors 4
- Environmental Rating IP62
- Feature: Chemical Resistant No
- Sensing Mode (Detailed) Receiver
- Operation Normally Open/Normally Closed
- Beam Spacing (mm) 25.0
- Feature: Hazardous Area No
- Wireless No
- Activation Function Optical
- Quick Disconnect Type M12 (Euro)
- Sensing Array Length (mm) 300
- Primary Housing Color Black
- Actuation Yes
- Color Option 1 Green
- Output Type NPN
- Number of Beams 13
- IO Link No
- Cable Length (m) 2
- Mounting Thread No Thread
- Connection Pigtail QD
- Maximum Sensing Distance (mm) 2000
- Primary Window Material Acrylic Clear
- Power Source DC
- Animation Option 1 Dip-Switch Controlled
- Supply Voltage 12-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 341.4 x 30.0 x 15.0
- Sensing Resolution (mm) 35.0
- Job Light Green
- Power DC
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 62
- Array Length (mm) 300.0
- Button Operation Momentary
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PVA300N6RQ Description

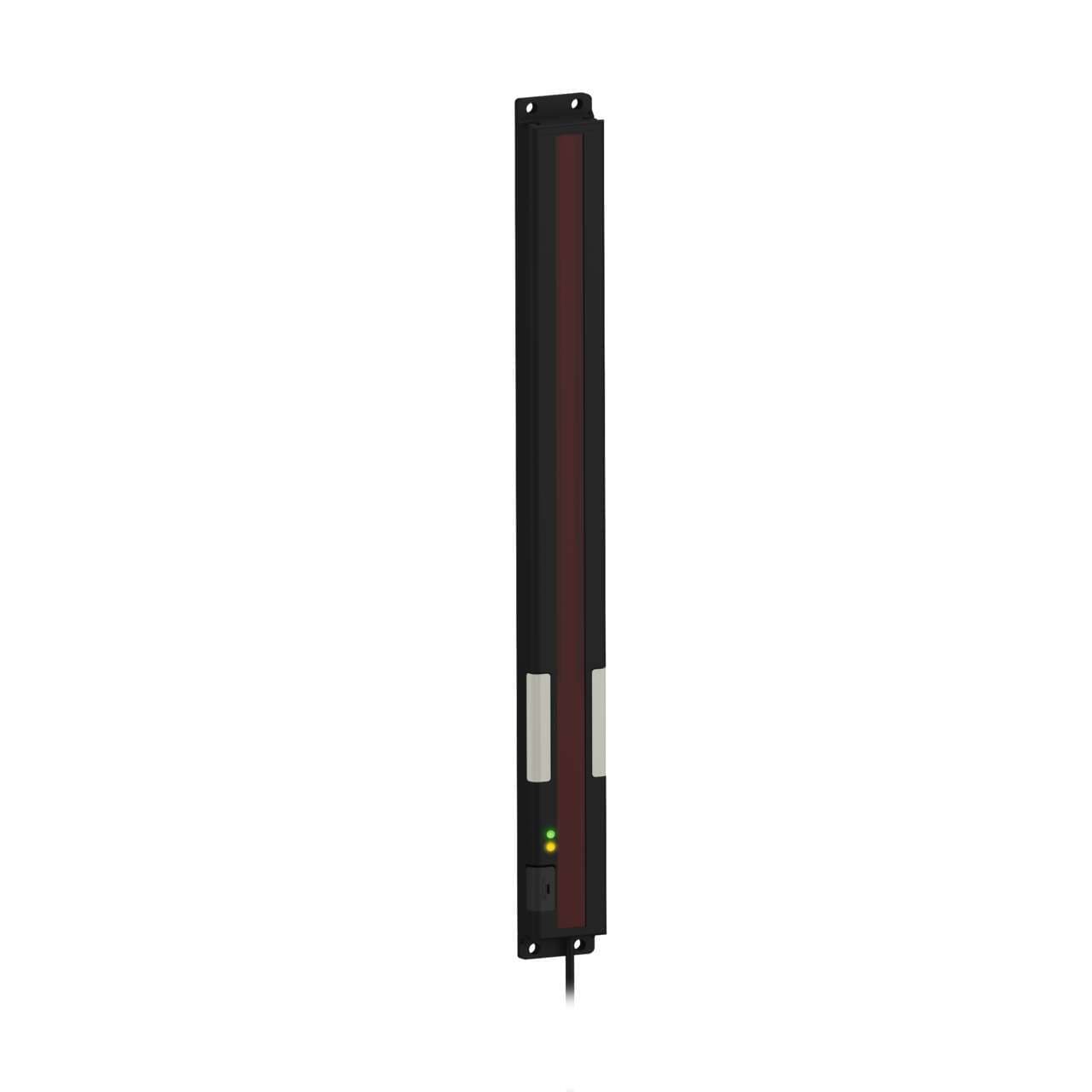

Banner Engineering PVA300N6RQ is a photo-electric array sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature of up to +50°C and is housed in an aluminium casing with an acrylic window for durability. It features a rectangular shape with dimensions of 300mm in array length, 30mm in width, and a net depth of 342mm. The PVA300N6RQ is pre-wired with a 15" (381mm) pigtail that terminates with a 4-pin M12 connector, facilitating easy installation. It offers a sensing distance of up to 2m (2000mm) with a beam spacing/pitch of 25mm and emits green light for detection purposes. This sensor is powered by a supply voltage ranging from 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. It includes one digital output (PNP transistor) and is protected by an IP62 NEMA 2 rated enclosure, ensuring its operation in various environmental conditions.
Related documents PVA300N6RQ Specs
