K90LGYRPQP Banner Signal Beacons
Part#:K90LGYRPQP
Manufacturer:Banner
Alt. Part#:92830
Product Lifecycle:Active
Get a quick Quote!
K90 Series EZ-LIGHT; 3-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Green Yellow Red; 150 mm (6 in) 5-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90LGYRPQP Banner price in the box on the right side or send a quick quote.
Product Details
- Weight217.72416 g
- Country Of OriginMX
- Number of Colors / Segments 3
- Quick Disconnect Type M12 (Euro)
- Wire Selectable Function Flashing
- Max Op. Temperature (°C) 50
- IO Link No
- Power Source DC
- Color Technology Standard LED
- Color Option 3 Red
- Environmental Rating IP67
- Wireless No
- Cable Length (m) 2
- Animation Option 1 Solid On
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- Input Type PNP
- Feature: Hazardous Area No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 150
- Lumens Color 3 65.0
- NEMA Type and UL Type Rating NEMA 4X, 13
- Feature: Chemical Resistant No
- Primary Housing Material Polycarbonate
- Indication Yes
- Product Size (mm) 90
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Max Current Color (mA) 475
- Connection Pigtail QD
- Max Input Response Time (ms) 75
- Primary Window Material Polycarbonate Diffused
- Multi-Color Device Single Color On
- Modbus RTU No
- Housing Style Base Mount - Dome Window
- Color Option 2 Yellow
- Color Option 1 Green
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 87.0
- Mounting Thread M30 x 1.5
- Lumens Color 2 35.0
- Number of Input Pins/Conductors 5
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Power DC
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Supply Voltage 12-30 V dc
- Min Op. Temperature (°C) -40
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K90LGYRPQP Description

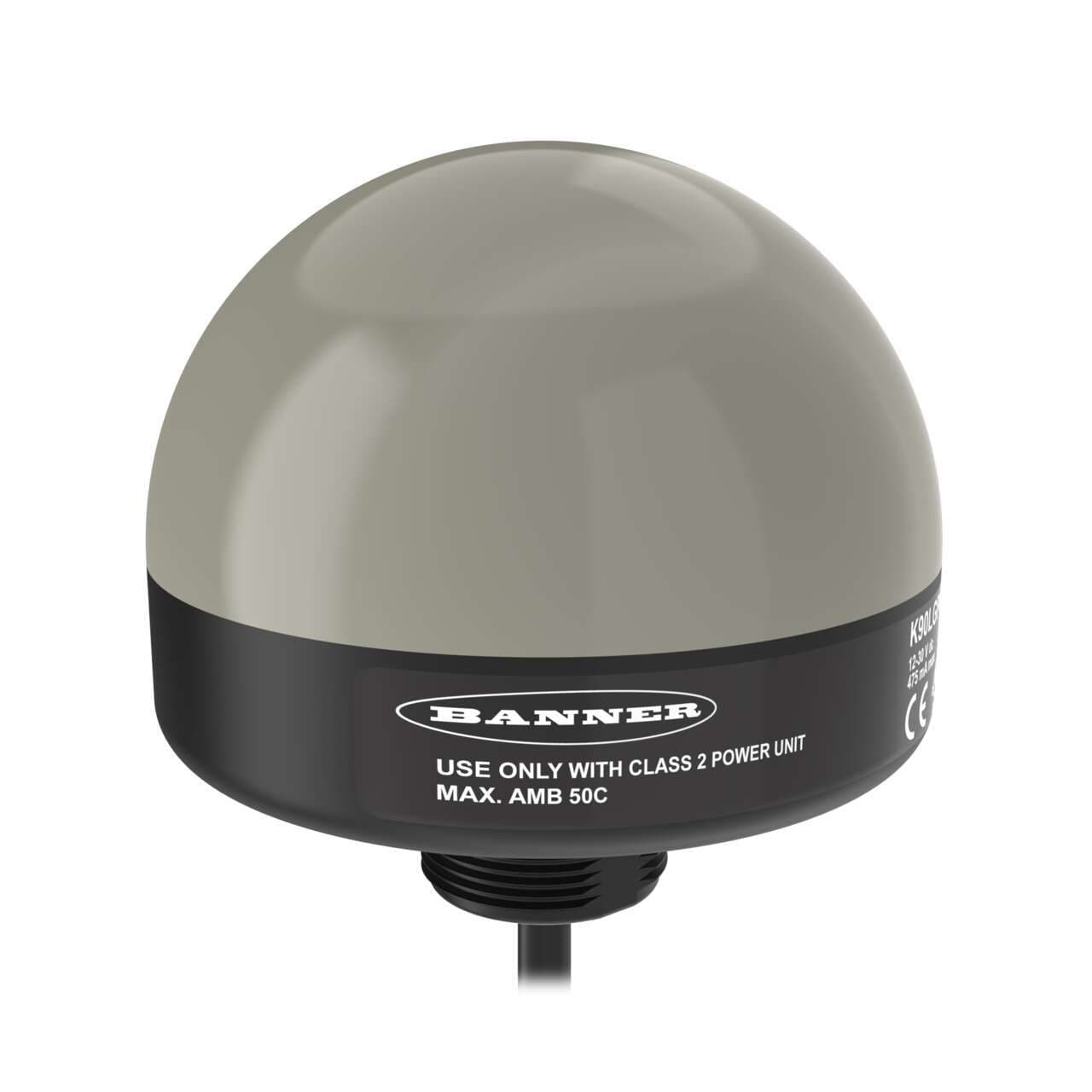

Banner Engineering K90LGYRPQP is a pilot light from the EZ-LIGHT series designed with a 3-color G/Y/R color pattern LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K90LGYRPQP offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread. The dome diameter measures 90mm or approximately 3-1/2 inches. It is designed to operate within an ambient air temperature range of -40°C to +50°C. This part is protected to IP67, NEMA 4X, and NEMA 13 standards, ensuring durability in various environments. It has a current consumption of 475mA and includes 3 digital inputs (12-30Vdc; PNP) for color control.
