K90LWBGYRNQP Banner Electronic Components
Part#:K90LWBGYRNQP
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

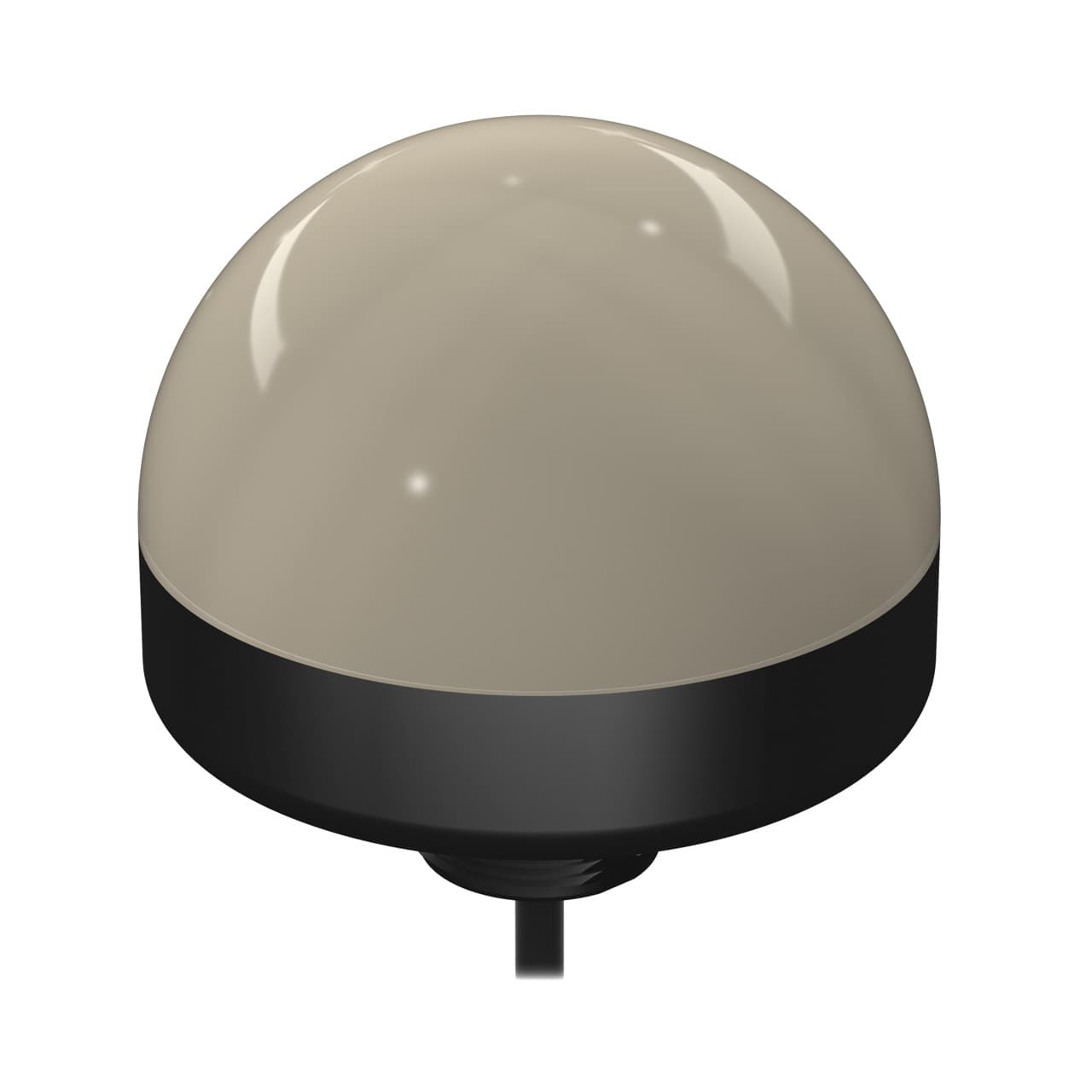

K90 Series EZ-LIGHT; 5-Color Indicator, Voltage: 12-30 V dc; Environmental Rating: IP67, Input: NPN; Colors: White Blue Green Yellow Red, Euro 8-pin 150 mm (6 in) PVC Pigtail
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90LWBGYRNQP Banner price in the box on the right side or send a quick quote.
Product Details
- Power DC
- Color Option 1 White
- Lumens Color 3 150
- Lumens Color 4 35.0
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Product Size (mm) 90
- Animation Option 1 Solid On
- Color 3 - Wavelength/Color Temp/Coordinates 525 nm
- Supply Voltage 12-30 V dc
- Feature: Audible No
- Housing Style Base Mount - Dome Window
- Color Option 2 Blue
- Max Current Color (mA) 475
- Environmental Rating IP67
- Pro-Editor Compatible (Discrete) No
- Cable Length (m) 2
- Color Technology Standard LED
- Color 1 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Color 4 - Wavelength/Color Temp/Coordinates 590 nm
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 2 55.0
- Color 5 - Wavelength/Color Temp/Coordinates 625 nm
- Wire Selectable Function Flashing
- Power Source DC
- Number of Colors / Segments 5
- Color Option 5 Red
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 87.0
- IO Link No
- Primary Housing Material Polycarbonate
- Lumens Color 1 200
- Quick Disconnect Type M12 (Euro)
- Input Type NPN
- Max Op. Temperature (°C) 50
- Indication Yes
- Connection Pigtail QD
- Color Option 3 Green
- Color Option 4 Yellow
- Modbus RTU No
- Mounting Thread M30 x 1.5
- Color 2 - Wavelength/Color Temp/Coordinates 470 nm
- Lumens Color 5 65.0
- Max Input Response Time (ms) 75
- NEMA Type and UL Type Rating NEMA 4X, 13
- Number of Input Pins/Conductors 8
- Multi-Color Device Single Color On
- Primary Window Material Polycarbonate Diffused
- Min Op. Temperature (°C) -40
- Wireless No
