K90LRGBYPQ Banner Electronic Components

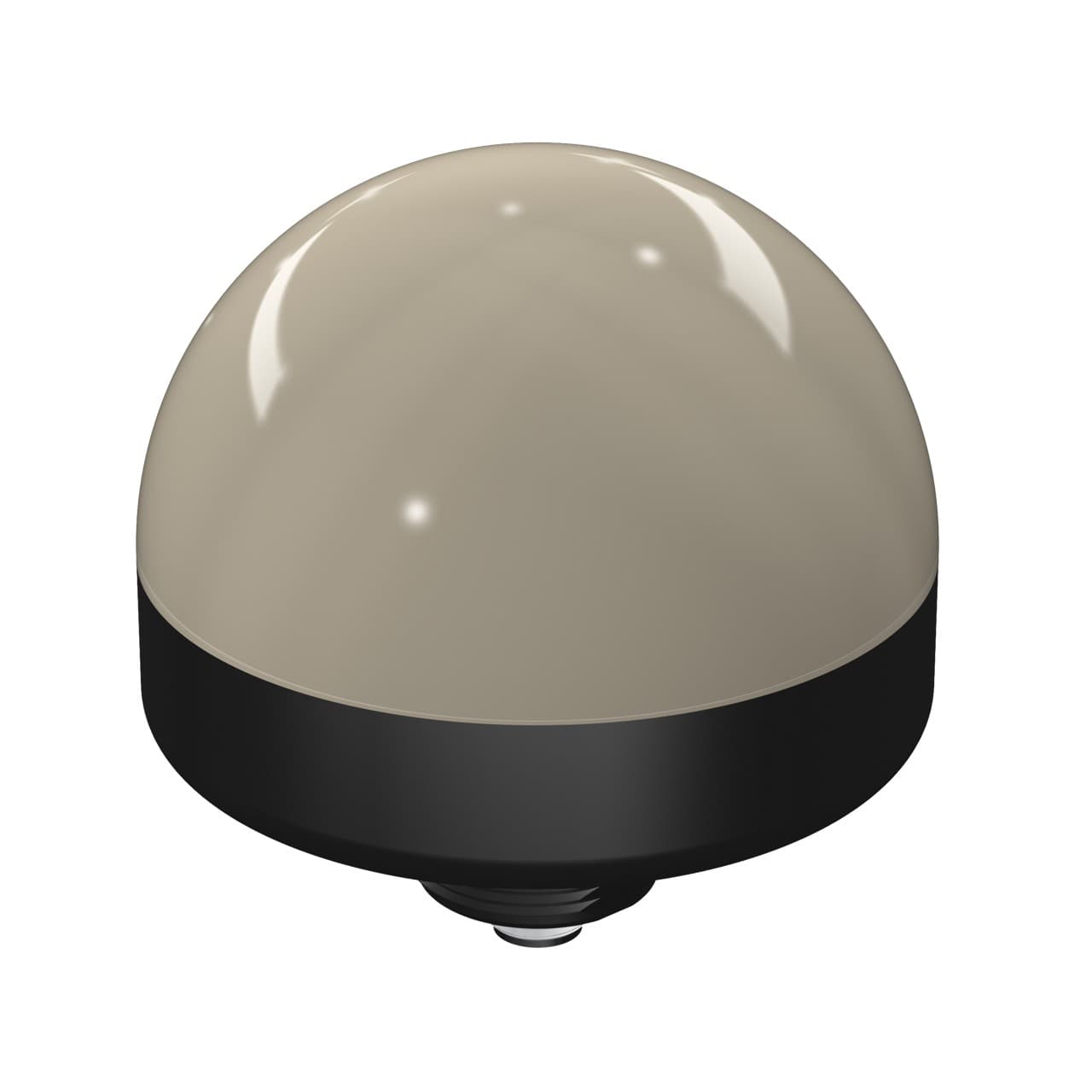

Banner K90LRGBYPQ K90 Series EZ-LIGHT; 4-Color Indicator, Voltage: 12-30 V dc; Environmental Rating: IP67, Input: PNP; Colors: Red Green Blue Yellow, Euro 8-pin Integral Conenctor
Banner

Part#:K90LRGBYPQ

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

K90 Series EZ-LIGHT; 4-Color Indicator, Voltage: 12-30 V dc; Environmental Rating: IP67, Input: PNP; Colors: Red Green Blue Yellow, Euro 8-pin Integral Conenctor

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K90LRGBYPQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Number of Colors / Segments
    4
  • Lumens Color 3
    55.0
  • Supply Voltage
    12-30 V dc
  • Multi-Color Device
    Single Color On
  • Power
    DC
  • Lumens Color 1
    65.0
  • Color Option 4
    Yellow
  • Physical Dimensions (LxWxH or DxH mm)
    90.0 x 87.0
  • Primary Window Material
    Polycarbonate Diffused
  • Primary Housing Material
    Polycarbonate
  • Connection
    Integral QD
  • Color 4 - Wavelength/Color Temp/Coordinates
    590 nm
  • Input Type
    PNP
  • Feature: Audible
    No
  • Lumens Color 2
    150
  • Max Op. Temperature (°C)
    50
  • Wireless
    No
  • Housing Style
    Base Mount - Dome Window
  • Color 1 - Wavelength/Color Temp/Coordinates
    625 nm
  • Lumens Color 4
    35.0
  • Wire Selectable Function
    Flashing
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    M30 x 1.5
  • Color Option 1
    Red
  • Animation Option 1
    Solid On
  • Max Current Color (mA)
    475
  • Power Source
    DC
  • Product Size (mm)
    90
  • Color Option 2
    Green
  • Environmental Rating
    IP67
  • Modbus RTU
    No
  • Indication
    Yes
  • Quick Disconnect Type
    M12 (Euro)
  • Number of Input Pins/Conductors
    8
  • Min Op. Temperature (°C)
    -40
  • Pro-Editor Compatible (Discrete)
    No
  • Color Technology
    Standard LED
  • Cable Length (m)
    0.15
  • Color Option 3
    Blue
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • IO Link
    No
  • Max Input Response Time (ms)
    75
  • Color 3 - Wavelength/Color Temp/Coordinates
    470 nm
  • Feature: Hazardous Area
    No
  • Color 2 - Wavelength/Color Temp/Coordinates
    525 nm
  • Feature: Quick Disconnect
    Yes
  • Feature: Chemical Resistant
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents K90LRGBYPQ Specs

K90LRGBYPQ K90 QD-1630954072340.stp
K90LRGBYPQ K90L -- Datasheet-1630954072334.pdf
K90LRGBYPQ K90 QD-1630954072339.pdf
