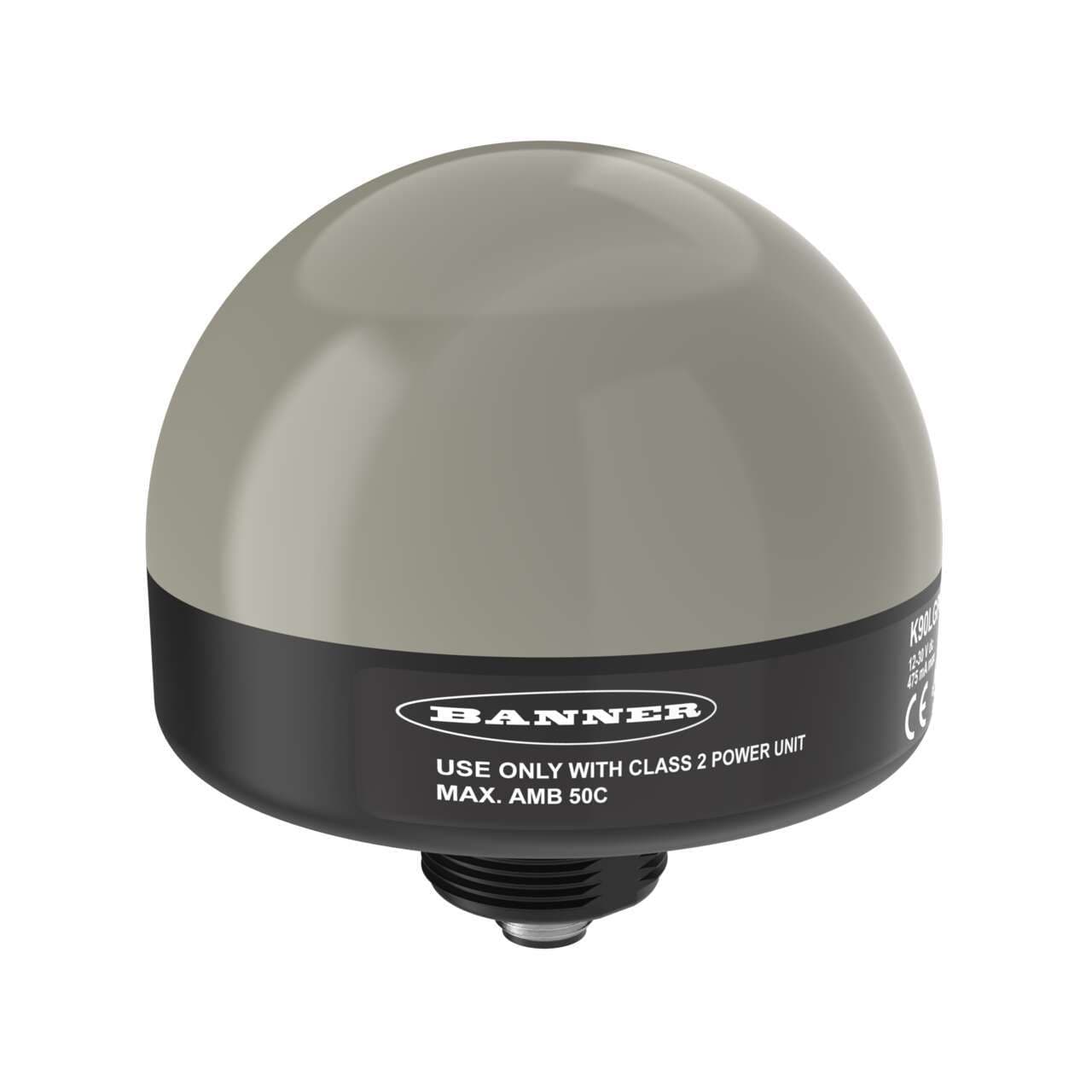

K90LBPQ Banner Signal Beacons

Banner K90LBPQ K90 Series EZ-LIGHT; 1-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Blue; 5-pin M12 Integral QD
Banner

Part#:K90LBPQ

Manufacturer:Banner

Alt. Part#:92809

Product Lifecycle:Active

Get a quick Quote!

K90 Series EZ-LIGHT; 1-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Blue; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K90LBPQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight226.796 g
  • Country Of OriginMX
  • Indication
    Yes
  • Animation Option 1
    Solid On
  • Supply Voltage
    12-30 V dc
  • Primary Window Material
    Polycarbonate Diffused
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Quick Disconnect Type
    M12 (Euro)
  • Number of Input Pins/Conductors
    5
  • Feature: Hazardous Area
    No
  • Housing Style
    Base Mount - Dome Window
  • Max Current Color (mA)
    475
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Modbus RTU
    No
  • Power
    DC
  • Number of Colors / Segments
    1
  • Color 1 - Wavelength/Color Temp/Coordinates
    470 nm
  • Environmental Rating
    IP67
  • Feature: Quick Disconnect
    Yes
  • Mounting Thread
    M30 x 1.5
  • Connection
    Integral QD
  • Max Input Response Time (ms)
    75
  • Feature: Chemical Resistant
    No
  • Power Source
    DC
  • Color Technology
    Standard LED
  • Wire Selectable Function
    Flashing
  • Max Op. Temperature (°C)
    50
  • Wireless
    No
  • IO Link
    No
  • Product Size (mm)
    90
  • Lumens Color 1
    55.0
  • Physical Dimensions (LxWxH or DxH mm)
    90.0 x 87.0
  • Feature: Audible
    No
  • Primary Housing Material
    Polycarbonate
  • Color Option 1
    Blue
  • Input Type
    PNP
  • Min Op. Temperature (°C)
    -40
  • Pro-Editor Compatible (Discrete)
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

K90LBPQ Description

Banner Engineering K90LBPQ is a pilot light from the EZ-LIGHT series designed with a 4-color B/G/Y/R color pattern LED illumination for clear indication. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 6" / 15cm pigtail that terminates with an 8-pin M12 Euro-style QD connector, facilitating easy and quick connections. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K90LBPQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread, and has a diameter of 90mm / 3-1/2" for the dome. It is designed to operate within an ambient air temperature range of -40°C to +50°C and boasts a high degree of protection with ratings of IP67, NEMA 4X, and NEMA 13, ensuring durability in various environments. The current consumption is 475mA, and it includes 4 x digital inputs (12-30Vdc; PNP) for color control.

Related documents K90LBPQ Specs

K90LBPQ 181765.pdf
