K90LBGYRPQ Banner Signal Beacons
Part#:K90LBGYRPQ
Manufacturer:Banner
Alt. Part#:92823
Product Lifecycle:Active
Get a quick Quote!
K90 Series EZ-LIGHT; 4-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Blue Green Yellow Red; 8-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90LBGYRPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight226.796 g
- Country Of OriginMX
- Mounting Thread M30 x 1.5
- Lumens Color 2 150
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Color Option 2 Green
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Indication Yes
- Number of Colors / Segments 4
- Power Source DC
- Cable Length (m) 0.15
- Primary Housing Material Polycarbonate
- Power DC
- Product Size (mm) 90
- Color Option 1 Blue
- Color Technology Standard LED
- Lumens Color 1 55.0
- Animation Option 1 Solid On
- Connection Integral QD
- Quick Disconnect Type M12 (Euro)
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Color 1 - Wavelength/Color Temp/Coordinates 470 nm
- Color Option 3 Yellow
- Color Option 4 Red
- Lumens Color 4 65.0
- Lumens Color 3 35.0
- Max Current Color (mA) 475
- Supply Voltage 12-30 V dc
- Max Input Response Time (ms) 75
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 87.0
- Wire Selectable Function Flashing
- Input Type PNP
- Environmental Rating IP67
- Housing Style Base Mount - Dome Window
- Color 4 - Wavelength/Color Temp/Coordinates 625 nm
- Number of Input Pins/Conductors 8
- Modbus RTU No
- IO Link No
- Multi-Color Device Single Color On
- Feature: Audible No
- Wireless No
- Pro-Editor Compatible (Discrete) No
- NEMA Type and UL Type Rating NEMA 4X, 13
- Primary Window Material Polycarbonate Diffused
- Min Op. Temperature (°C) -40
- Feature: Hazardous Area No
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K90LBGYRPQ Description

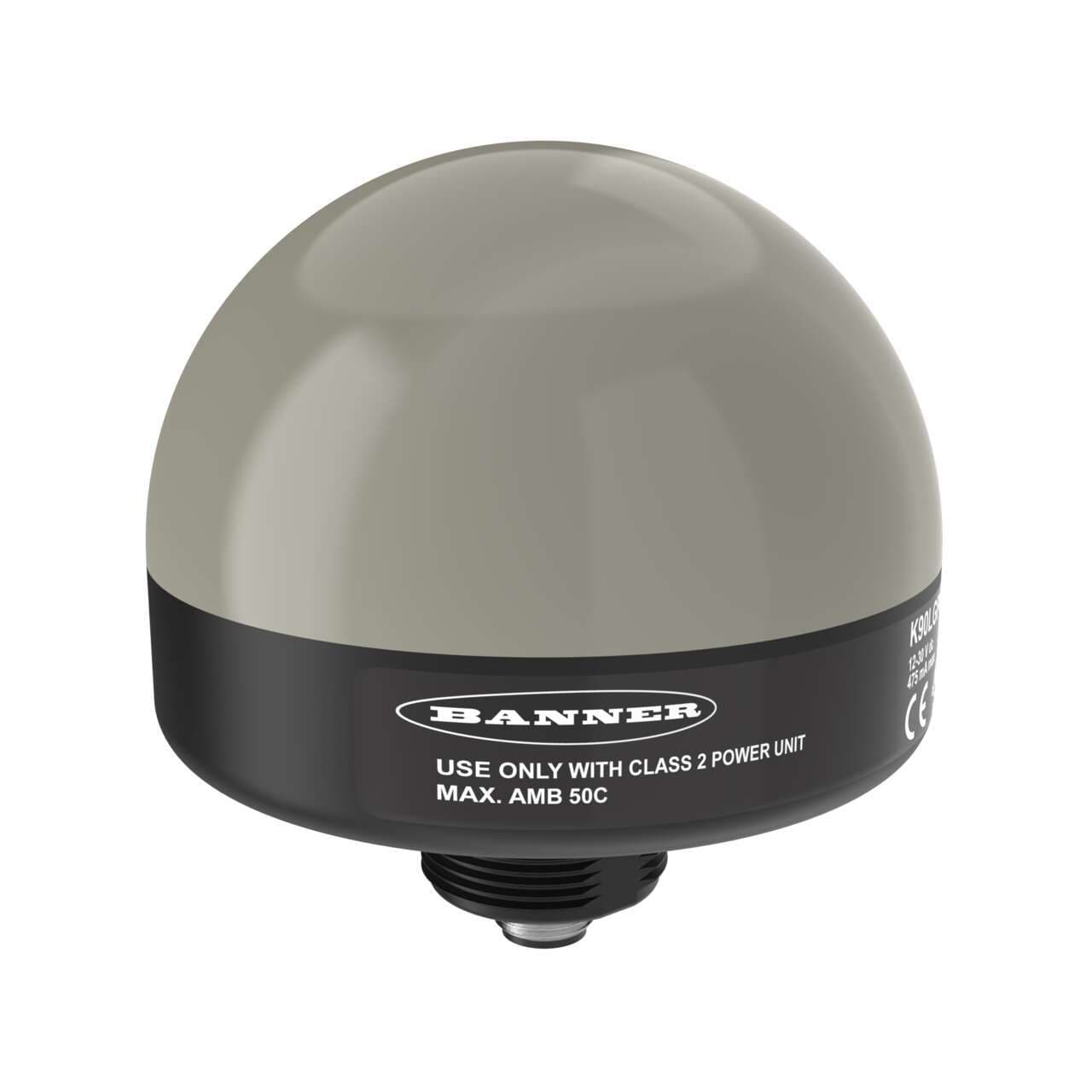

Banner Engineering K90LBGYRPQ, part of the EZ-LIGHT series, is a pilot light designed with a 4-color B/G/Y/R color pattern LED illumination for clear visibility. This unit features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base of the same material, ensuring durability. It is pre-equipped with an 8-pin M12 Euro-style QD connector for straightforward connectivity. The K90LBGYRPQ operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal, and can be mounted on a surface, base, or pole flush using a 30mm hole with an M30 thread. The dome diameter measures 90mm / 3-1/2 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with ratings of IP67, NEMA 4X, and NEMA 13. The current consumption is 475mA, and it includes 4 x digital inputs (12-30Vdc; PNP) for color control, enhancing its functionality.
