K90LWBGYRP Banner Signal Beacons

Banner K90LWBGYRP K90 Series EZ-LIGHT; 5-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: White Blue Green Yellow Red; 2 m (6.5 ft) Integral Cable
Banner

Part#:K90LWBGYRP

Manufacturer:Banner

Alt. Part#:92828

Product Lifecycle:Active

Get a quick Quote!

K90 Series EZ-LIGHT; 5-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: White Blue Green Yellow Red; 2 m (6.5 ft) Integral Cable

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K90LWBGYRP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight362.8736 g
  • Country Of OriginMX
  • Housing Style
    Base Mount - Dome Window
  • Color Technology
    Standard LED
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Connection
    Cable
  • Product Size (mm)
    90
  • Power Source
    DC
  • Power
    DC
  • Lumens Color 1
    200
  • Color Option 2
    Blue
  • Color 2 - Wavelength/Color Temp/Coordinates
    470 nm
  • Color 3 - Wavelength/Color Temp/Coordinates
    525 nm
  • Color Option 4
    Yellow
  • Max Current Color (mA)
    475
  • Max Input Response Time (ms)
    75
  • Wireless
    No
  • Indication
    Yes
  • Primary Housing Material
    Polycarbonate
  • Mounting Thread
    M30 x 1.5
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K (Cool)
  • Lumens Color 2
    55.0
  • Lumens Color 3
    150
  • Color Option 3
    Green
  • Lumens Color 4
    35.0
  • Lumens Color 5
    65.0
  • Supply Voltage
    12-30 V dc
  • Number of Input Pins/Conductors
    8
  • Feature: Hazardous Area
    No
  • Number of Colors / Segments
    5
  • Color 4 - Wavelength/Color Temp/Coordinates
    590 nm
  • Input Type
    PNP
  • Environmental Rating
    IP67
  • Multi-Color Device
    Single Color On
  • Pro-Editor Compatible (Discrete)
    No
  • Physical Dimensions (LxWxH or DxH mm)
    90.0 x 87.0
  • Feature: Quick Disconnect
    No
  • Feature: Audible
    No
  • Color Option 1
    White
  • Feature: Chemical Resistant
    No
  • Animation Option 1
    Solid On
  • Color 5 - Wavelength/Color Temp/Coordinates
    625 nm
  • Modbus RTU
    No
  • IO Link
    No
  • Wire Selectable Function
    Flashing
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Color Option 5
    Red
  • Min Op. Temperature (°C)
    -40
  • Primary Window Material
    Polycarbonate Diffused
  • Max Op. Temperature (°C)
    50

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

K90LWBGYRP Description

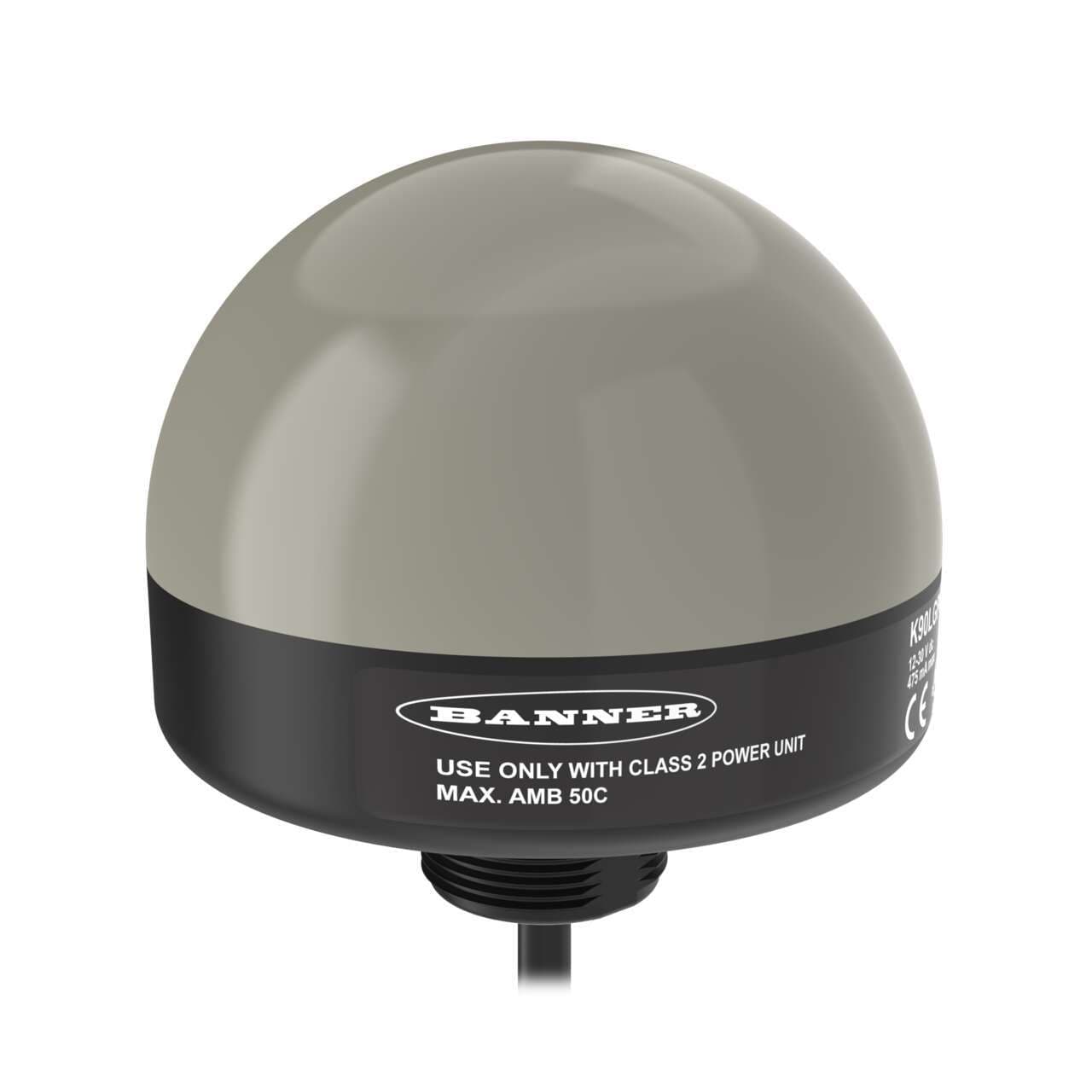

Banner Engineering K90LWBGYRP is a pilot light from the EZ-LIGHT series designed with a 5-color W/B/G/Y/R color pattern LED illumination for clear and distinct signaling. It features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC), ensuring durability. This part is equipped with an 8-pin M12 Euro-style quick disconnect (QD) connector for straightforward installation. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage, and can be mounted on a surface, base, or pole flush using a 30mm hole with an M30 thread. The dome has a diameter of 90mm or approximately 3-1/2 inches. Designed to function in ambient air temperatures ranging from -40°C to +50°C, it offers a high degree of protection with ratings of IP67, NEMA 4X, and NEMA 13. The current consumption is 475mA, and it includes 5 x digital inputs (12-30Vdc; NPN) for color control.

Related documents K90LWBGYRP Specs

K90LWBGYRP 181765.pdf
