K90LBWPQ Banner Electronic Components
Part#:K90LBWPQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

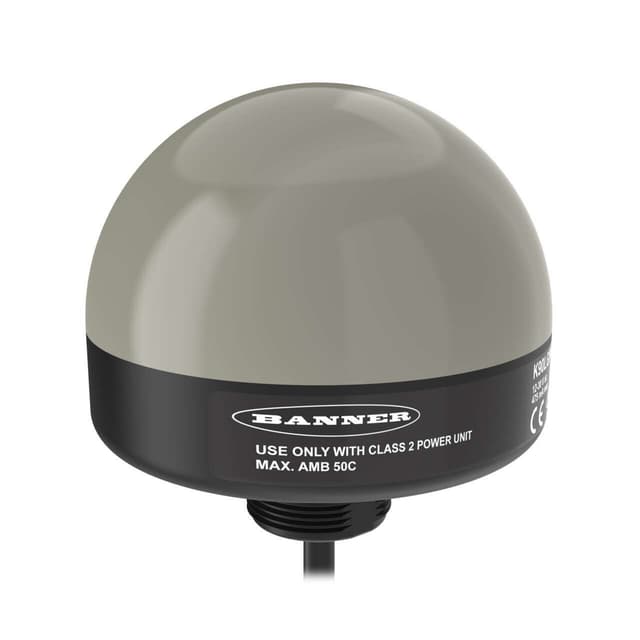

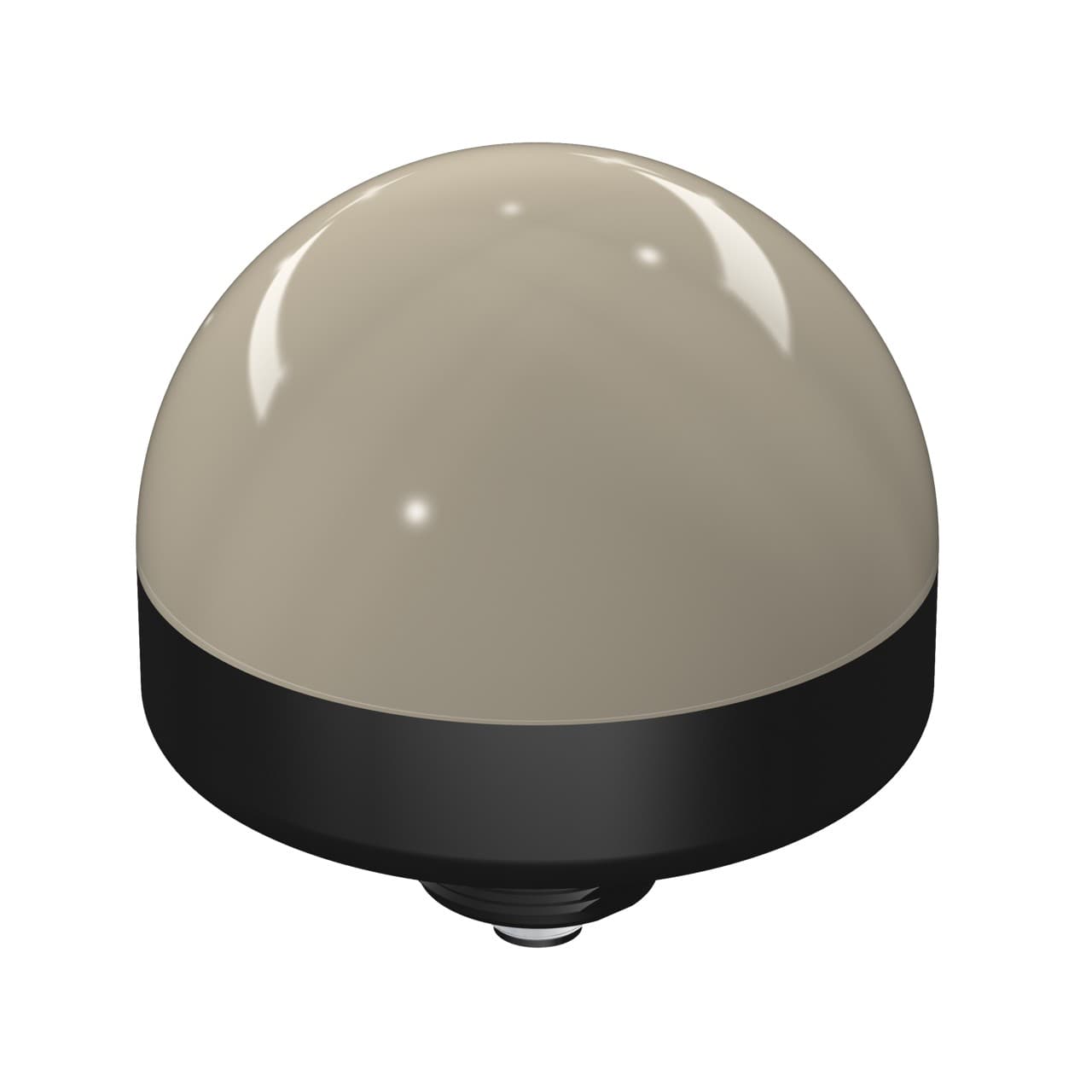

Banner Engineering K90LBWPQ is a pilot light from the EZ-LIGHT series designed with a 1-color Blue LED illumination housed in a black casing. It features a dome-shaped window made from diffused polycarbonate (PC) and a base of the same material, ensuring durability. This part is pre-wired with a 6-inch (15cm) pigtail that terminates with a 5-pin M12 Euro-style quick disconnect (QD) connector, facilitating easy and secure connections. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage, and can be mounted on a surface, base, or pole with a flush 30mm hole using an M30 thread. The dome has a diameter of 90mm (approximately 3-1/2 inches). Designed to withstand ambient air temperatures ranging from -40°C to +50°C, it is rated with a degree of protection of IP67, NEMA 4X, and NEMA 13, making it suitable for harsh environments. The current consumption is 475mA, and it includes 1 x digital input (12-30Vdc; PNP) for color control.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90LBWPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Cable Length (m) 2
- Connection Integral QD
- Number of Input Pins/Conductors 5
- Indication Yes
- Animation Option 1 Solid On
- Max Current Color (mA) 475
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
- Product Size (mm) 90
- Lumens Color 2 200
- Max Op. Temperature (°C) 50
- Power DC
- Color Option 1 Blue
- Wire Selectable Function Flashing
- Feature: Hazardous Area No
- Wireless No
- Primary Housing Material Polycarbonate
- Lumens Color 1 55.0
- Max Input Response Time (ms) 75
- Feature: Quick Disconnect Yes
- Mounting Thread M30 x 1.5
- Color 1 - Wavelength/Color Temp/Coordinates 470 nm
- Input Type PNP
- IO Link No
- Quick Disconnect Type M12 (Euro)
- Number of Colors / Segments 2
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 87.0
- Feature: Chemical Resistant No
- Housing Style Base Mount - Dome Window
- Color Option 2 White
- NEMA Type and UL Type Rating NEMA 4X, 13
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 2 - Wavelength/Color Temp/Coordinates 6500K (Cool)
- Environmental Rating IP67
- Multi-Color Device Single Color On
- Power Source DC
- Color Technology Standard LED
- Supply Voltage 12-30 V dc
- Feature: Audible No
- Min Op. Temperature (°C) -40
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents K90LBWPQ Specs
