K90LGRP Banner Signal Beacons

Banner K90LGRP K90 Series EZ-LIGHT; 2-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Green Red; 2 m (6.5 ft) Integral Cable
Banner

Part#:K90LGRP

Manufacturer:Banner

Alt. Part#:92825

Product Lifecycle:Active

Get a quick Quote!

K90 Series EZ-LIGHT; 2-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Green Red; 2 m (6.5 ft) Integral Cable

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K90LGRP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight294.8348 g
  • Country Of OriginUS
  • Mounting Thread
    M30 x 1.5
  • Color Option 1
    Green
  • Input Type
    PNP
  • Feature: Hazardous Area
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Housing Style
    Base Mount - Dome Window
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • IO Link
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Connection
    Cable
  • Environmental Rating
    IP67
  • Multi-Color Device
    Single Color On
  • Number of Colors / Segments
    2
  • Animation Option 1
    Solid On
  • Supply Voltage
    12-30 V dc
  • Feature: Audible
    No
  • Power Source
    DC
  • Lumens Color 2
    65.0
  • Max Input Response Time (ms)
    75
  • Feature: Chemical Resistant
    No
  • Power
    DC
  • Color Option 2
    Red
  • Wire Selectable Function
    Flashing
  • Max Op. Temperature (°C)
    50
  • Lumens Color 1
    150
  • Max Current Color (mA)
    475
  • Min Op. Temperature (°C)
    -40
  • Wireless
    No
  • Indication
    Yes
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    5
  • Primary Window Material
    Polycarbonate Diffused
  • Product Size (mm)
    90
  • Primary Housing Material
    Polycarbonate
  • Physical Dimensions (LxWxH or DxH mm)
    90.0 x 87.0
  • Modbus RTU
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

K90LGRP Description

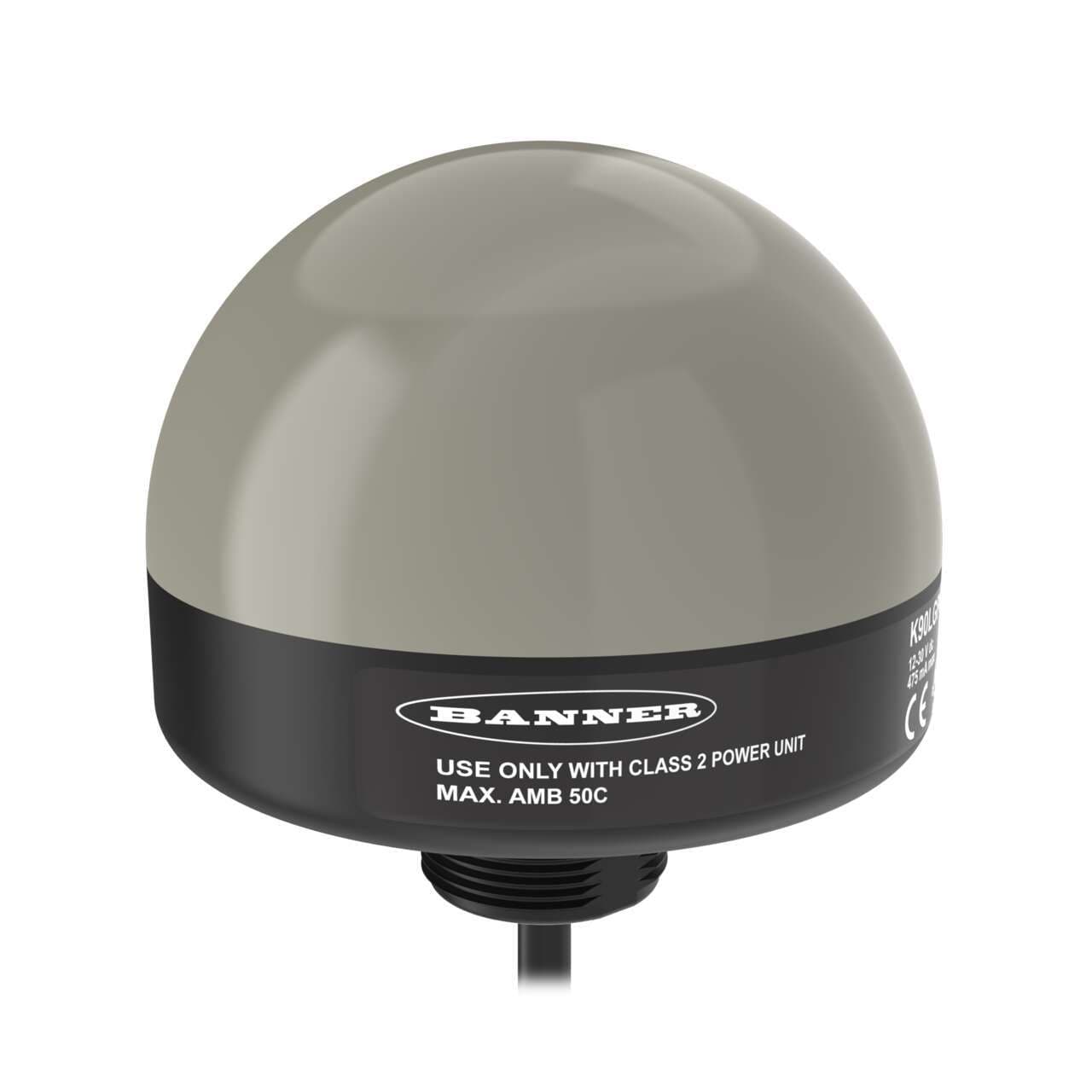

Banner Engineering K90LGRP, part of the EZ-LIGHT series, is a pilot light designed with a 2-color G/R color pattern LED illumination. This unit features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. It is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style QD connector. The K90LGRP operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal, and can be mounted via surface, base, or pole flush options in a 30mm hole with an M30 thread. The dome diameter measures 90mm / 3-1/2". It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67, NEMA 4X, and NEMA 13. The current consumption is 475mA, and it includes 2 x digital inputs (12-30Vdc; NPN) for color control.

Related documents K90LGRP Specs

K90LGRP 181765.pdf
