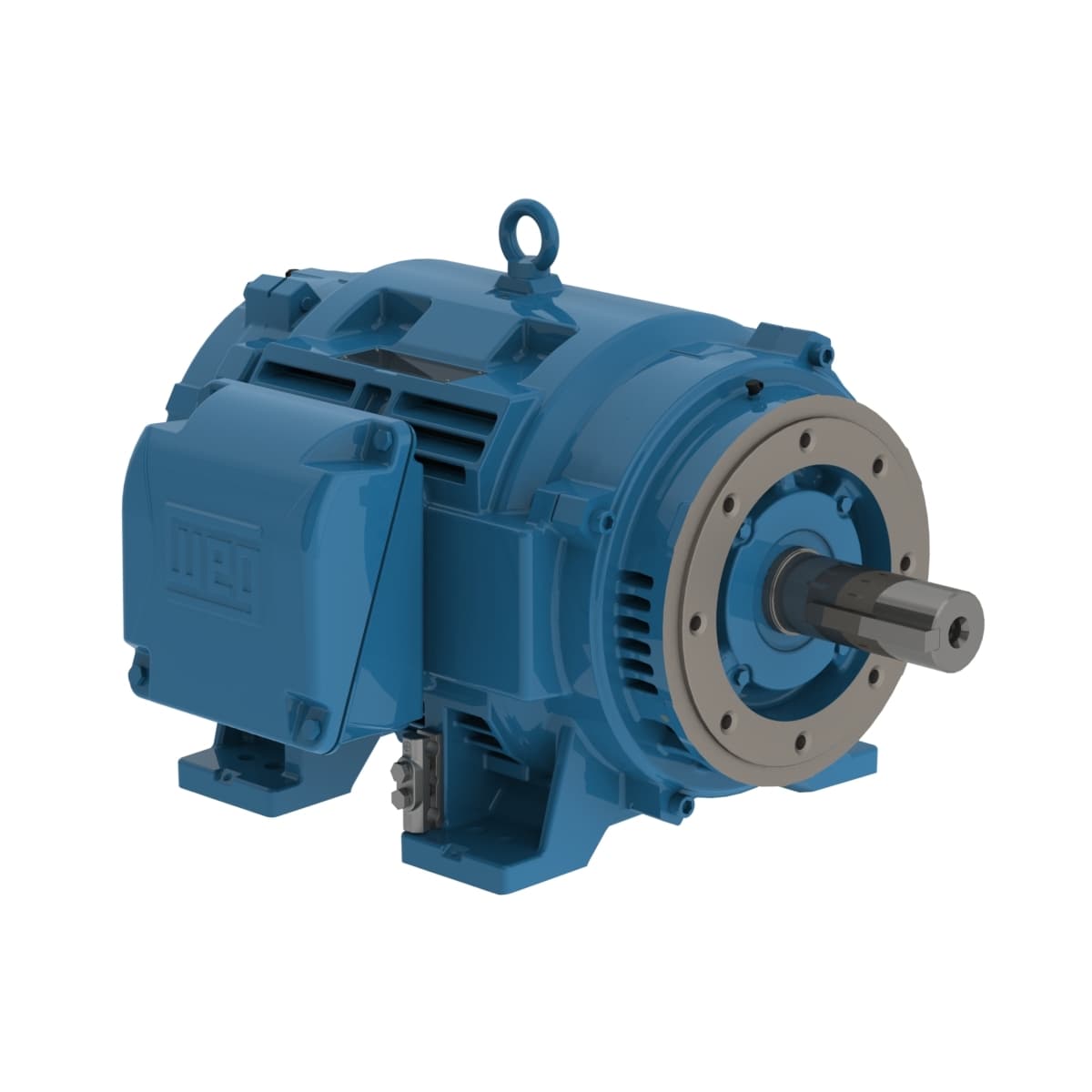

25036OT3G445TSC-RFW4 WEG AC Motors
Part#:25036OT3G445TSC-RFW4
Manufacturer:WEG
Alt. Part#:7909836226949
Product Lifecycle:Active
Get a quick Quote!
W40 NEMA Premium Efficiency 250 HP 2P 444/5TSC 3Ph 460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 25036OT3G445TSC-RFW4 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed3570 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeC
- Rated current 278 A
- Design B
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- Frame 444/5TSC
- LRC 6.7x(Code G)
- Ambient temperature -20°C to +40°C
- Mounting F-1
- Rated speed 3570 rpm
- Locked rotor torque 150 %
- Degree of Protection IP23
- Terminal box¹ Left position
- Rated voltage 460 V
- Moment of inertia (J) 27.1 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Output 250 HP (185 kW)
- Locked rotor time 28s (cold) 16s (hot)
- Enclosure IC01 - ODP
- Flange C
- Number of Poles 2
- Starting Method Direct On Line
- Standard NEMA MG-1
- Slip 0.83 %
- Rated torque 368 ft.lb
- Temperature rise 80 K
- Output rating 250 HP
- No load current 72.0 A
- Service factor 1.15
- Approx. weight³ 1488 lb
- Frequency 60 Hz
- Breakdown torque 229 %
- Noise level² 85.0 dB(A)
- L. R. Amperes 1863 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Voltage 460//380 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 25036OT3G445TSC-RFW4 Specs
1-year warranty
