25030EP3OFP449TS-W22 WEG AC Motors
Part#:25030EP3OFP449TS-W22
Manufacturer:WEG
Alt. Part#:7890208994668
Product Lifecycle:Active
Get a quick Quote!

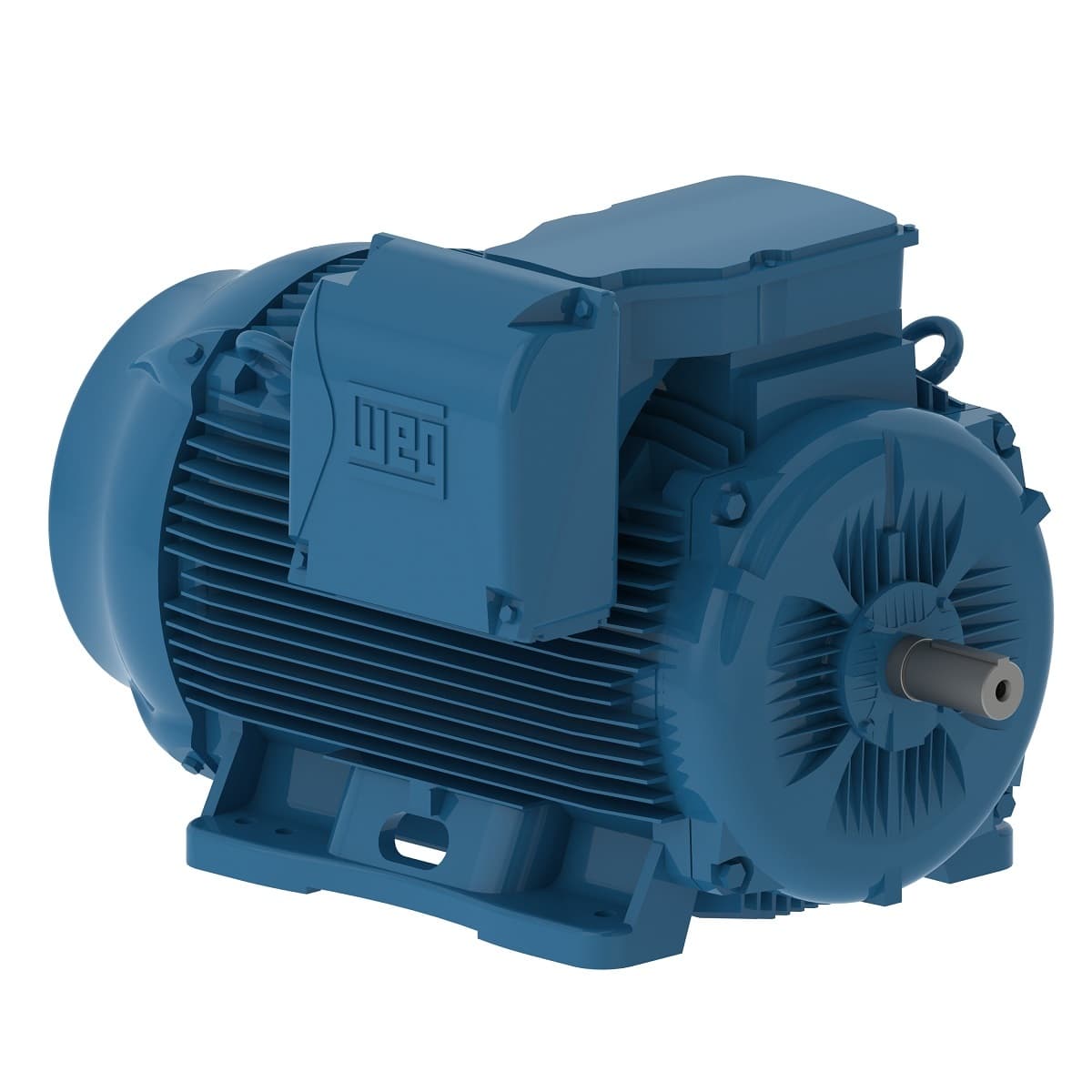

W22 High Efficiency 250 HP 2P 447/9TS 3Ph 380-400-415 V 50 Hz IC411 - TEFC - Foot-mounted
Check out the 25030EP3OFP449TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed2965 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- Output 250 HP (185 kW)
- Locked rotor time 45s (cold) 25s (hot)
- Approx. weight³ 2582 lb
- Standard NEMA MG-1
- Rated voltage 380 V
- Frequency 50 Hz
- Breakdown torque 229 %
- Enclosure IC411 - TEFC
- Rotation¹ Both (CW and CCW)
- LRC 7.2x(Code G)
- Design B
- Synchronous speed 3000 rpm
- Rated current 325 A
- Service factor 1.15
- Altitude 1000 m.a.s.l.
- Rated speed 2965 rpm
- Locked rotor torque 170 %
- Temperature rise 80 K
- Mounting F-1
- L. R. Amperes 2340 A
- Rated torque 443 ft.lb
- Ambient temperature -20°C to +40°C
- Flange Without
- No load current 73.0 A
- Voltage 380-400-415 V
- Number of Poles 2
- Duty Cycle Cont.(S1)
- Frame 447/9TS
- Insulation Class F
- Starting Method Direct On Line
- Output rating 250 HP
- Noise level² 79.0 dB(A)
- Slip 1.17 %
- Moment of inertia (J) 38.0 sq.ft.lb
- Degree of Protection IP55
- Number of poles 2
- Terminal box¹ Left position
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 25030EP3OFP449TS-W22 Specs
1-year warranty
