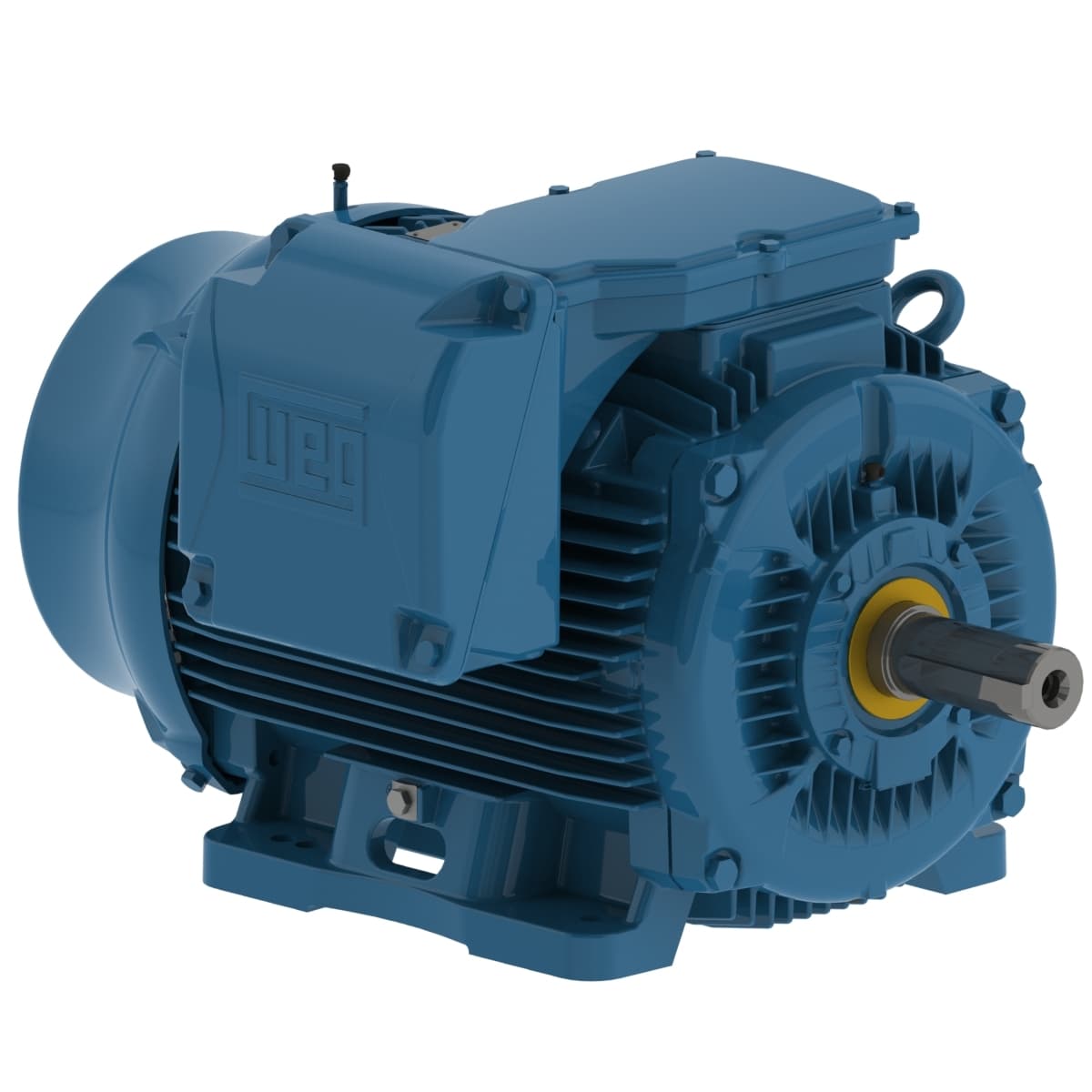

25036ST3QIE449TS-W22 WEG AC Motors
Part#:25036ST3QIE449TS-W22
Manufacturer:WEG
Alt. Part#:7891327134416
Product Lifecycle:Active
Get a quick Quote!
W22 IEEE 841 NEMA Premium Efficiency 250 HP 2P 447/9TS 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 25036ST3QIE449TS-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed3573 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- LRC 6.7x(Code G)
- Starting Method Direct On Line
- Number of poles 2
- Rated voltage 460 V
- Locked rotor torque 200 %
- Duty Cycle Cont.(S1)
- Synchronous speed 3600 rpm
- Rated speed 3573 rpm
- Rated torque 367 ft.lb
- Enclosure IC411 - TEFC
- Approx. weight³ 2532 lb
- L. R. Amperes 1802 A
- No load current 62.0 A
- Temperature rise 80 K
- Flange Without
- Rated current 269 A
- Breakdown torque 240 %
- Ambient temperature -20°C to +40°C
- Slip 0.75 %
- Locked rotor time 32s (cold) 18s (hot)
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Number of Poles 2
- Moment of inertia (J) 50.3 sq.ft.lb
- Degree of Protection IP56
- Standard NEMA MG-1
- Output 250 HP (185 kW)
- Insulation Class F
- Noise level² 81.0 dB(A)
- Frame 447/9TS
- Design B
- Mounting F-1
- Voltage 460 V
- Frequency 60 Hz
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Output rating 250 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
