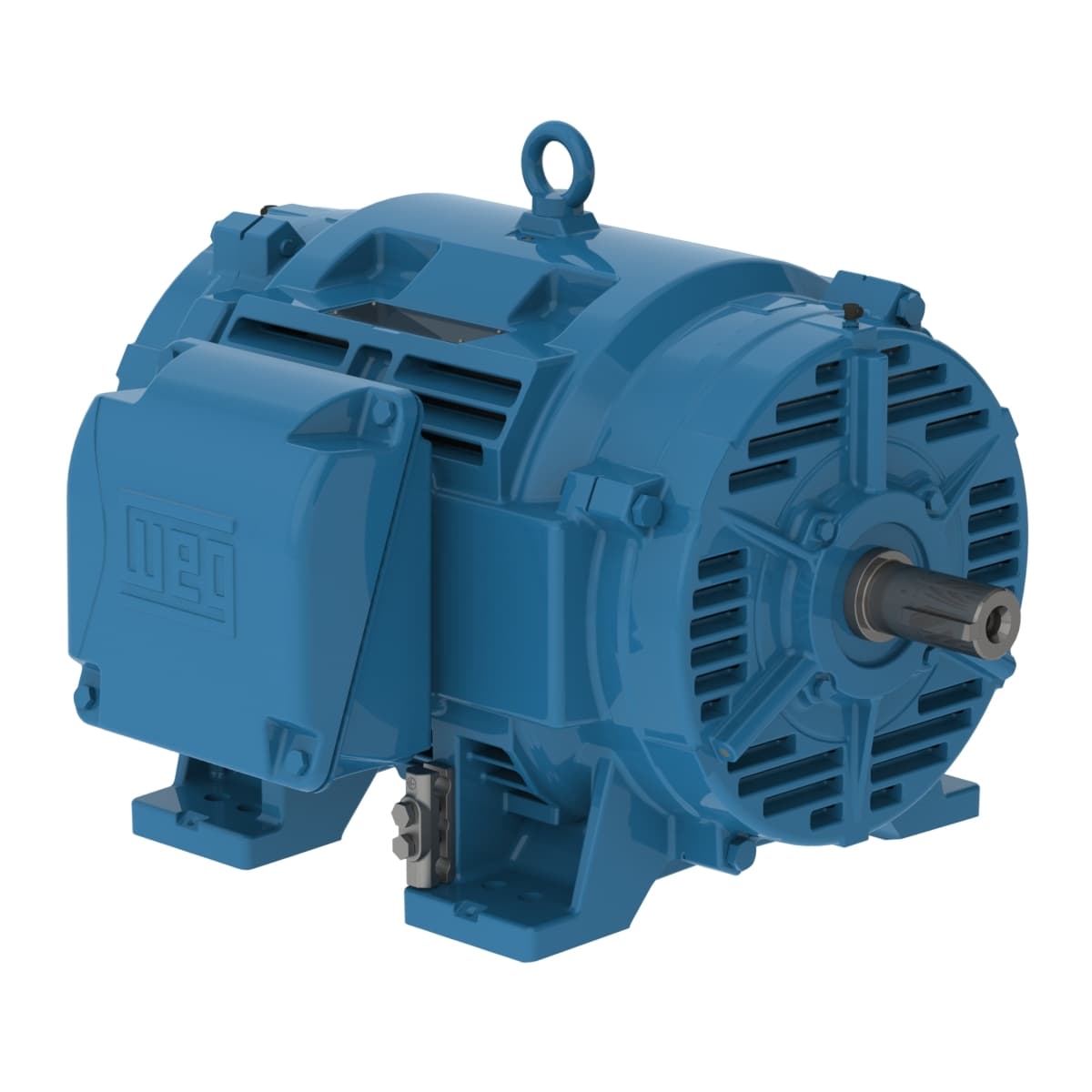

25036OT3G445TS-RFW40 WEG AC Motors
Part#:25036OT3G445TS-RFW40
Manufacturer:WEG
Alt. Part#:7909836064039
Product Lifecycle:Active
Get a quick Quote!
W40 NEMA Premium Efficiency 250 HP 2P 444/5TS 3Ph 460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 25036OT3G445TS-RFW40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed3570 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- No load current 72.0 A
- Slip 0.83 %
- Enclosure IC01 - ODP
- Flange Without
- Frequency 60 Hz
- Output 250 HP (185 kW)
- Number of Poles 2
- Rated current 278 A
- Rated voltage 460 V
- Design B
- Moment of inertia (J) 27.1 sq.ft.lb
- Locked rotor time 28s (cold) 16s (hot)
- Duty Cycle Cont.(S1)
- Mounting F-1
- Temperature rise 80 K
- Degree of Protection IP23
- Rated speed 3570 rpm
- Insulation Class F
- Rated torque 368 ft.lb
- L. R. Amperes 1863 A
- LRC 6.7x(Code G)
- Service factor 1.15
- Breakdown torque 229 %
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Approx. weight³ 1488 lb
- Frame 444/5TS
- Locked rotor torque 150 %
- Altitude 1000 m.a.s.l.
- Noise level² 85.0 dB(A)
- Number of poles 2
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Standard NEMA MG-1
- Output rating 250 HP
- Synchronous speed 3600 rpm
- Voltage 460//380 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 25036OT3G445TS-RFW40 Specs
