25036OP3HFP445TS-W40 WEG AC Motors
Part#:25036OP3HFP445TS-W40
Manufacturer:WEG
Alt. Part#:7909323929742
Product Lifecycle:Active
Get a quick Quote!

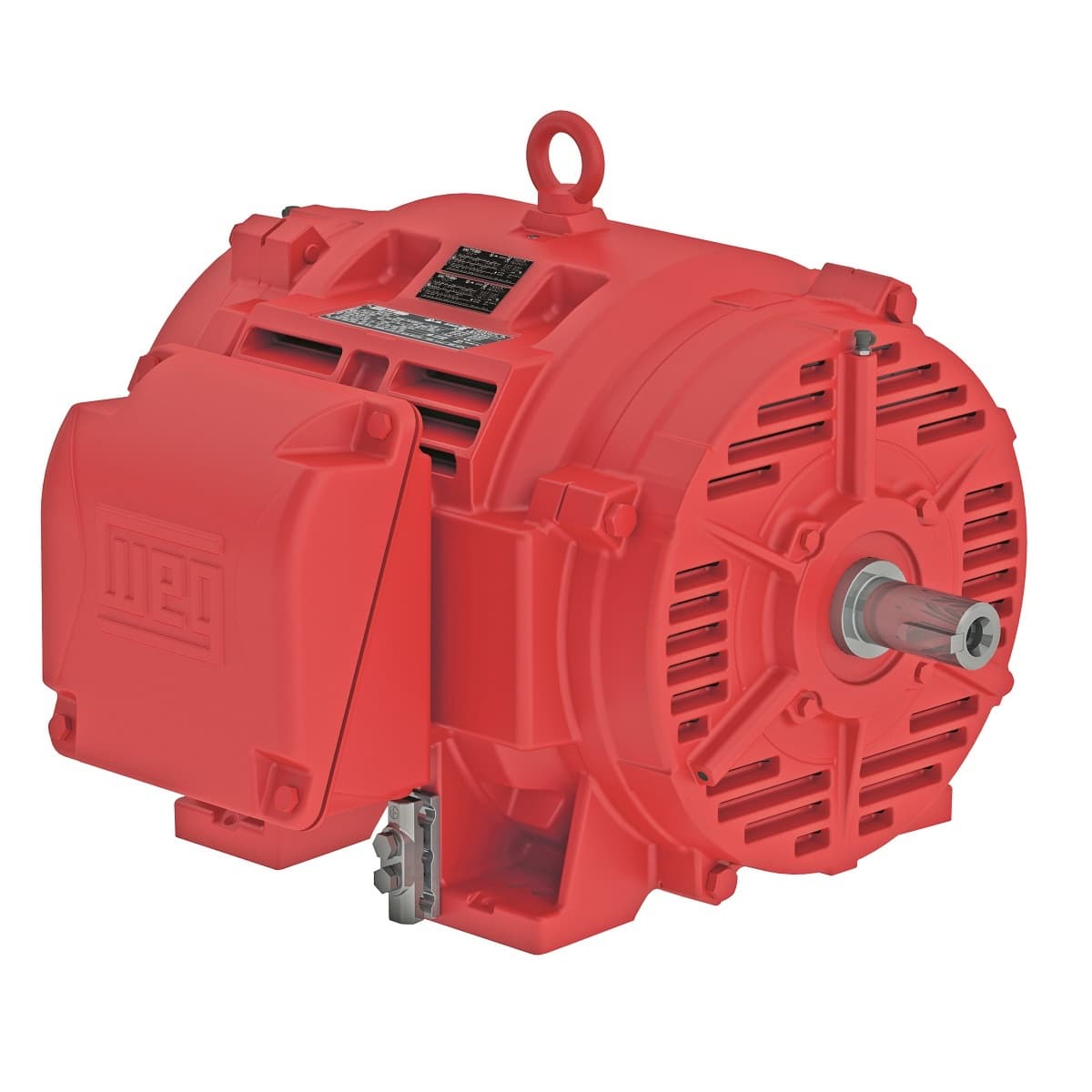

W40 High Efficiency 250 HP 2P 444/5TS 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 25036OP3HFP445TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed3570 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeWithout
- Locked rotor torque 130 %
- Mounting F-1
- Rotation¹ Both (CW and CCW)
- Output 250 HP (185 kW)
- LRC 6.4x(Code G)
- Temperature rise 80 K
- Flange Without
- Slip 0.83 %
- Insulation Class F
- Enclosure IC01 - ODP
- Voltage 575 V
- Rated voltage 575 V
- Rated torque 368 ft.lb
- Approx. weight³ 1321 lb
- Terminal box¹ Left position
- Number of Poles 2
- Starting Method Direct On Line
- Number of poles 2
- Frame 444/5TS
- No load current 68.0 A
- Degree of Protection IP23
- Synchronous speed 3600 rpm
- Rated current 226 A
- Design B
- Service factor 1.15
- Rated speed 3570 rpm
- Moment of inertia (J) 23.8 sq.ft.lb
- Altitude 1000 m.a.s.l.
- L. R. Amperes 1444 A
- Locked rotor time 36s (cold) 20s (hot)
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Frequency 60 Hz
- Breakdown torque 220 %
- Ambient temperature -20°C to +40°C
- Output rating 250 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 25036OP3HFP445TS-W40 Specs
1-year warranty
