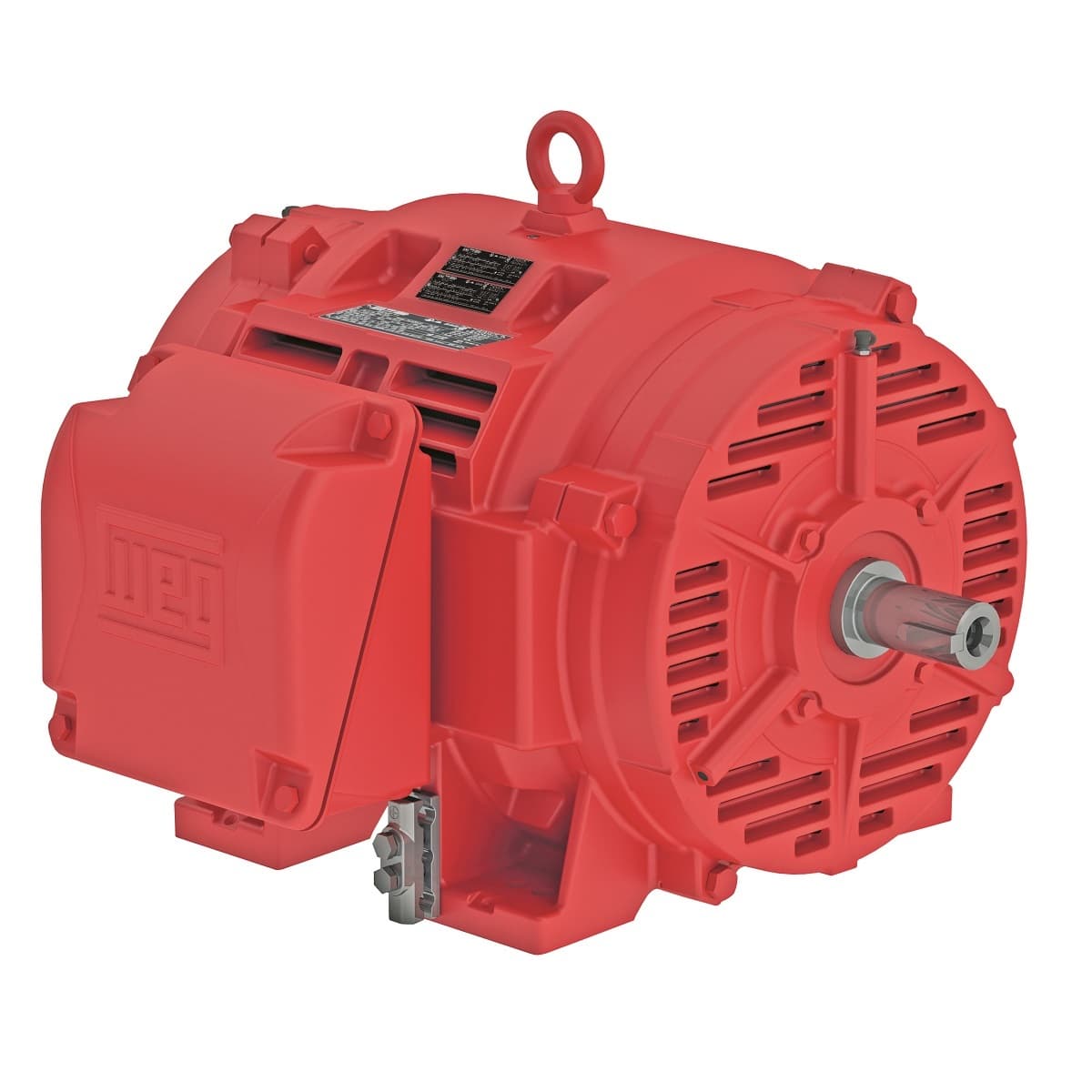

25036OP3XFP445TS-W40 WEG AC Motors
Part#:25036OP3XFP445TS-W40
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
W40 High Efficiency 250 HP 2P 444/5TS 3Ph 400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 25036OP3XFP445TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 3570 rpm
- Design B
- Ambient temperature -20°C to +40°C
- Rated voltage 400 V
- Rated torque 368 ft.lb
- Approx. weight³ 1323 lb
- Frequency 60 Hz
- No load current 97.7 A
- Moment of inertia (J) 23.8 sq.ft.lb
- Standard NEMA MG-1
- LRC 6.4x(Code G)
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Output 250 HP (185 kW)
- Service factor 1.15
- Degree of Protection IP23
- Synchronous speed 3600 rpm
- Slip 0.83 %
- Locked rotor torque 130 %
- Starting Method Direct On Line
- Flange Without
- Frame 444/5TS
- Temperature rise 80 K
- Number of poles 2
- L. R. Amperes 2076 A
- Locked rotor time 36s (cold) 20s (hot)
- Mounting F-1
- Voltage 400 V
- Rated current 324 A
- Breakdown torque 220 %
- Enclosure IC01 - ODP
- Number of Poles 2
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Output rating 250 HP
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
