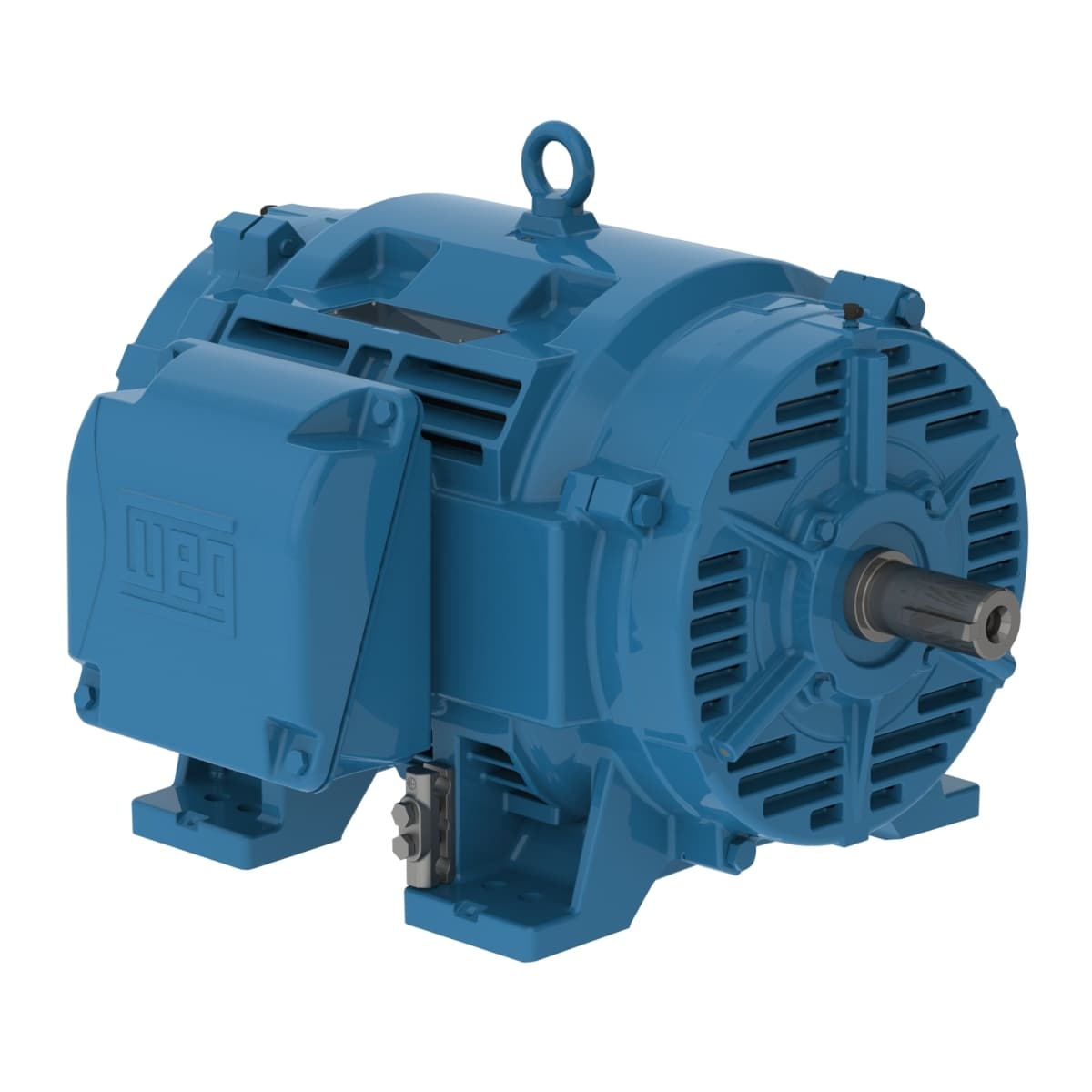

25036OT3G445TS-RFVFD WEG AC Motors
Part#:25036OT3G445TS-RFVFD
Manufacturer:WEG
Alt. Part#:7909836062028
Product Lifecycle:Active
Get a quick Quote!
W40 NEMA Premium Efficiency 250 HP 2P 444/5TS 3Ph 460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 25036OT3G445TS-RFVFD WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed3571 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeWithout
- Slip 0.81 %
- Breakdown torque 290 %
- Starting Method VFD
- Standard NEMA MG-1
- Rated current 284 A
- Locked rotor time 41s (cold) 23s (hot)
- Duty Cycle Cont.(S1)
- Flange Without
- Number of Poles 2
- Insulation Class F
- Noise level² 87.0 dB(A)
- Output 250 HP (185 kW)
- Service factor 1.15
- Mounting F-1
- Terminal box¹ Left position
- Locked rotor torque 240 %
- L. R. Amperes 2414 A
- Degree of Protection IP23
- Synchronous speed 3600 rpm
- LRC 8.5x(Code J)
- Temperature rise 105 K
- Approx. weight³ 1394 lb
- Frequency 60 Hz
- Rated torque 368 ft.lb
- Altitude 1000 m.a.s.l.
- Number of poles 2
- Rated voltage 460 V
- Moment of inertia (J) 28.6 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 460//380 V
- Frame 444/5TS
- No load current 86.0 A
- Enclosure IC01 - ODP
- Output rating 250 HP
- Rated speed 3571 rpm
- Design A
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 25036OT3G445TS-RFVFD Specs
