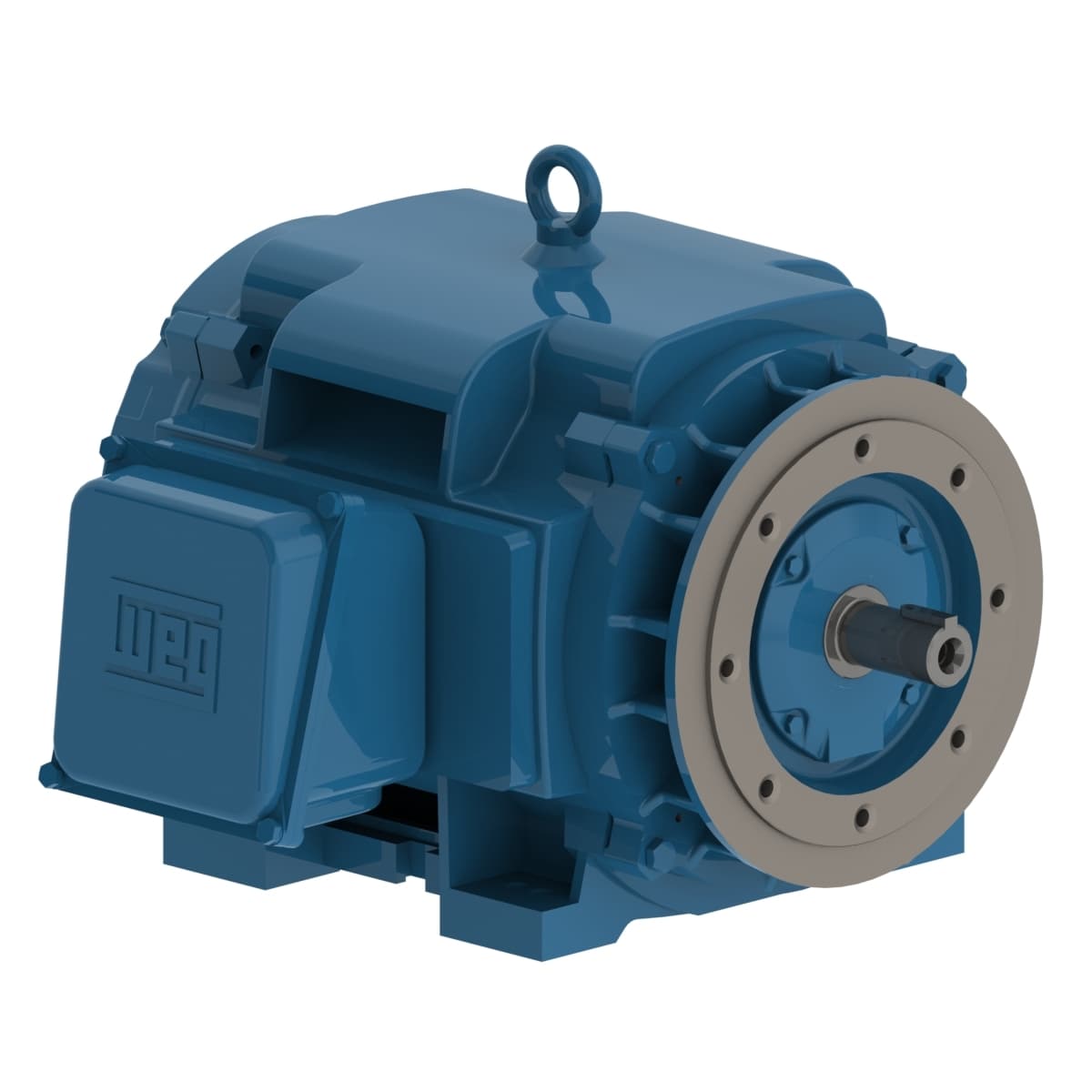

25036OT3G445TSC-RF WEG AC Motors
Part#:25036OT3G445TSC-RF
Manufacturer:WEG
Alt. Part#:7909323574607
Product Lifecycle:Active
Get a quick Quote!
ODP NEMA Premium Efficiency 250 HP 2P 444/5TSC 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 25036OT3G445TSC-RF WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed3565 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeSpecial
- Slip 0.97 %
- Moment of inertia (J) 30.2 sq.ft.lb
- Standard NEMA MG-1
- Approx. weight³ 1526 lb
- Frequency 60 Hz
- Design B
- Rotation¹ Both (CW and CCW)
- Frame 444/5TSC
- L. R. Amperes 1668 A
- Mounting F-1
- Enclosure IC01 - ODP
- Number of Poles 2
- Breakdown torque 250 %
- Starting Method Direct On Line
- Output rating 250 HP
- Output 250 HP (185 kW)
- Locked rotor time 32s (cold) 18s (hot)
- Duty Cycle Cont.(S1)
- Flange Special
- Rated speed 3565 rpm
- No load current 65.0 A
- Temperature rise 80 K
- Terminal box¹ Left position
- Rated voltage 460 V
- Locked rotor torque 190 %
- Service factor 1.15
- Voltage 460 V
- LRC 6.0x(Code F)
- Degree of Protection IP23
- Altitude 1000 m.a.s.l.
- Rated current 278 A
- Insulation Class F
- Noise level² 88.0 dB(A)
- Synchronous speed 3600 rpm
- Rated torque 368 ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 25036OT3G445TSC-RF Specs
