25030OP3OFP445TS-W40 WEG AC Motors
Part#:25030OP3OFP445TS-W40
Manufacturer:WEG
Alt. Part#:7909712315545
Product Lifecycle:Active
Get a quick Quote!

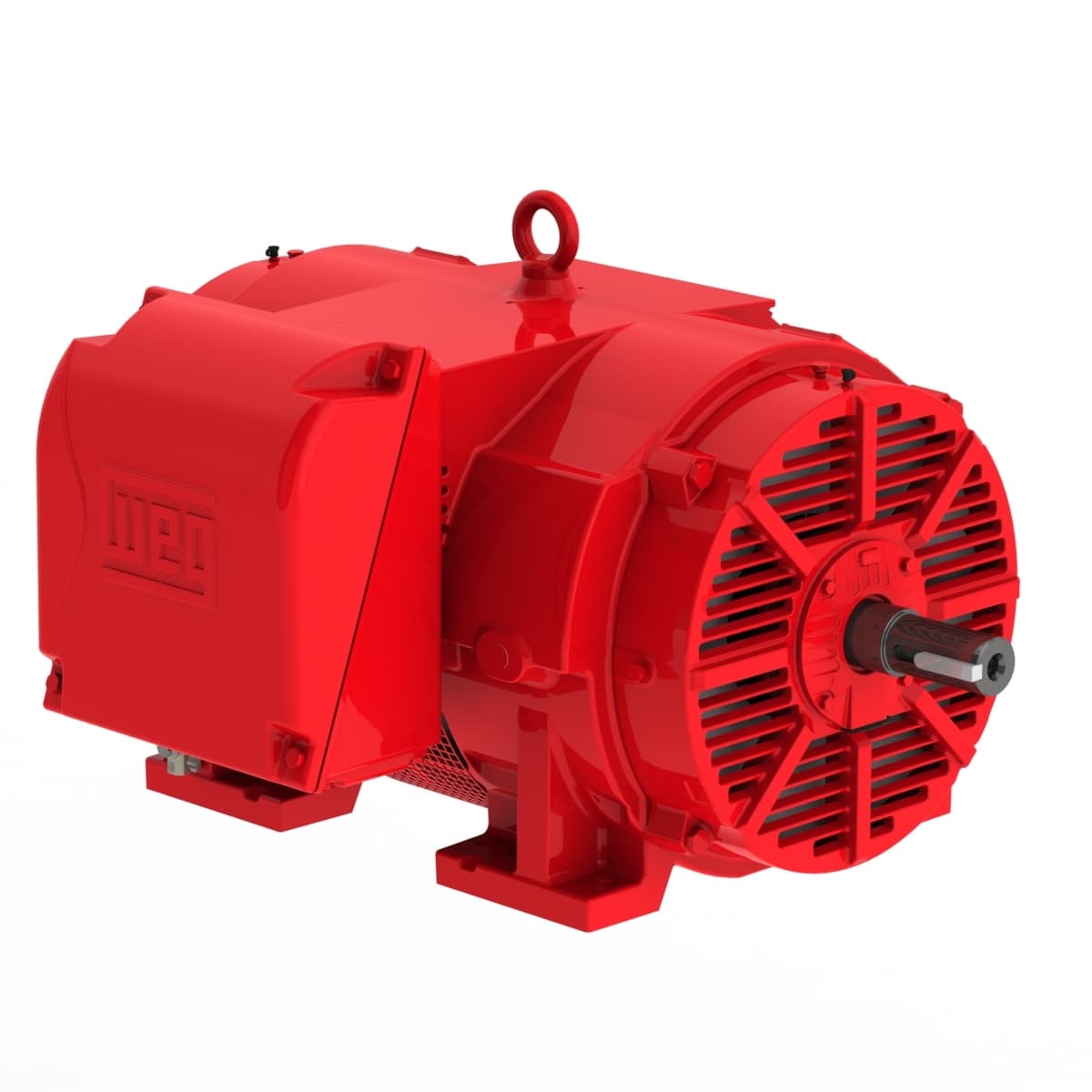

W40 High Efficiency 250 HP 2P 444/5TS 3Ph 380-400-415 V 50 Hz IC01 - ODP - Foot-mounted
Check out the 25030OP3OFP445TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating250 HP
- Rated Speed2965 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- Number of Poles 2
- Locked rotor time 115s (cold) 64s (hot)
- Altitude 1000 m.a.s.l.
- L. R. Amperes 2189 A
- Service factor 1.15
- Output rating 250 HP
- Rated current 342 A
- Temperature rise 70 K
- Approx. weight³ 1400 lb
- Output 250 HP (185 kW)
- No load current 95.0 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Frame 444/5TS
- LRC 6.4x(Code G)
- Design B
- Degree of Protection IP23
- Flange Without
- Slip 1.17 %
- Duty Cycle Cont.(S1)
- Synchronous speed 3000 rpm
- Frequency 50 Hz
- Breakdown torque 200 %
- Ambient temperature -20°C to +50°C
- Number of poles 2
- Rated speed 2965 rpm
- Locked rotor torque 170 %
- Mounting F-1
- Terminal box¹ Left position
- Rated voltage 380 V
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rated torque 443 ft.lb
- Moment of inertia (J) 28.0 sq.ft.lb
- Enclosure IC01 - ODP
- Voltage 380-400-415 V
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
