12676940 WEG AC Motors
Part#:12676940
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

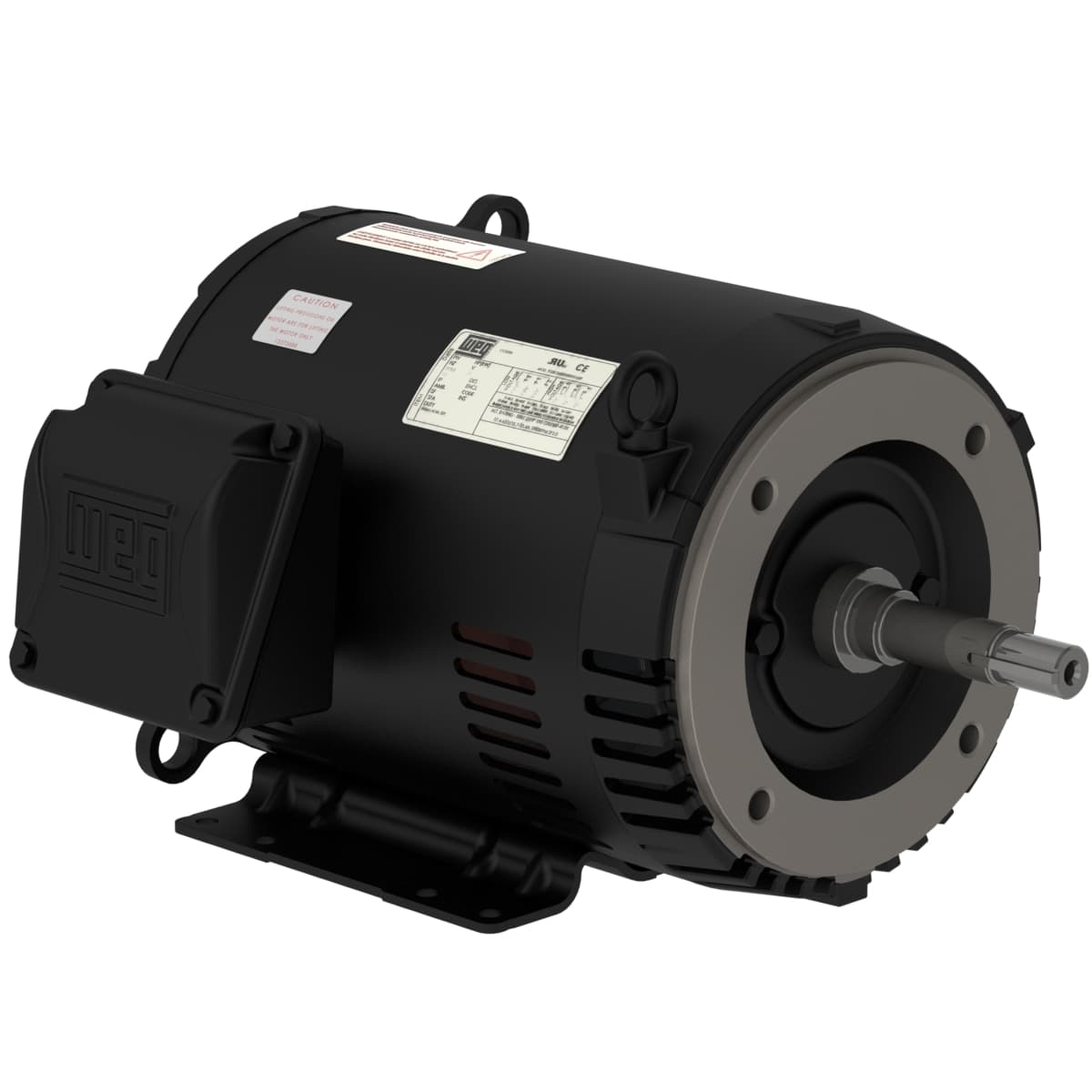

Rolled Steel JM Pump High Efficiency 10 HP 4P 213/5JM 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 12676940 WEG price in the box on the right side or send a quick quote.
Product Details
- Frame 213/5JM
- Rated torque 29.8 ft.lb
- Approx. weight³ 126 lb
- Output rating 10 HP
- Slip 2.22 %
- Breakdown torque 270 %
- Noise level² 59.0 dB(A)
- L. R. Amperes 161/80.6 A
- No load current 11.2/5.62 A
- Temperature rise 80 K
- Number of poles 4
- Rated current 24.8/12.4 A
- Locked rotor torque 210 %
- Altitude 1000 m.a.s.l.
- Terminal box¹ Left position
- Rated voltage 230/460 V
- Starting Method Direct On Line
- Mounting F-1
- Output 10 HP (7.5 kW)
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Flange C
- Frequency 60 Hz
- Moment of inertia (J) 1.03 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 230/460//190-220/380-415 V
- Number of Poles 4
- Design B
- Duty Cycle Cont.(S1)
- Rated speed 1760 rpm
- Locked rotor time 14s (cold) 8s (hot)
- Standard NEMA MG-1
- LRC 6.5x(Code H)
- Insulation Class F
- Enclosure IC01 - ODP
- Synchronous speed 1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12676940 Specs
1-year warranty
