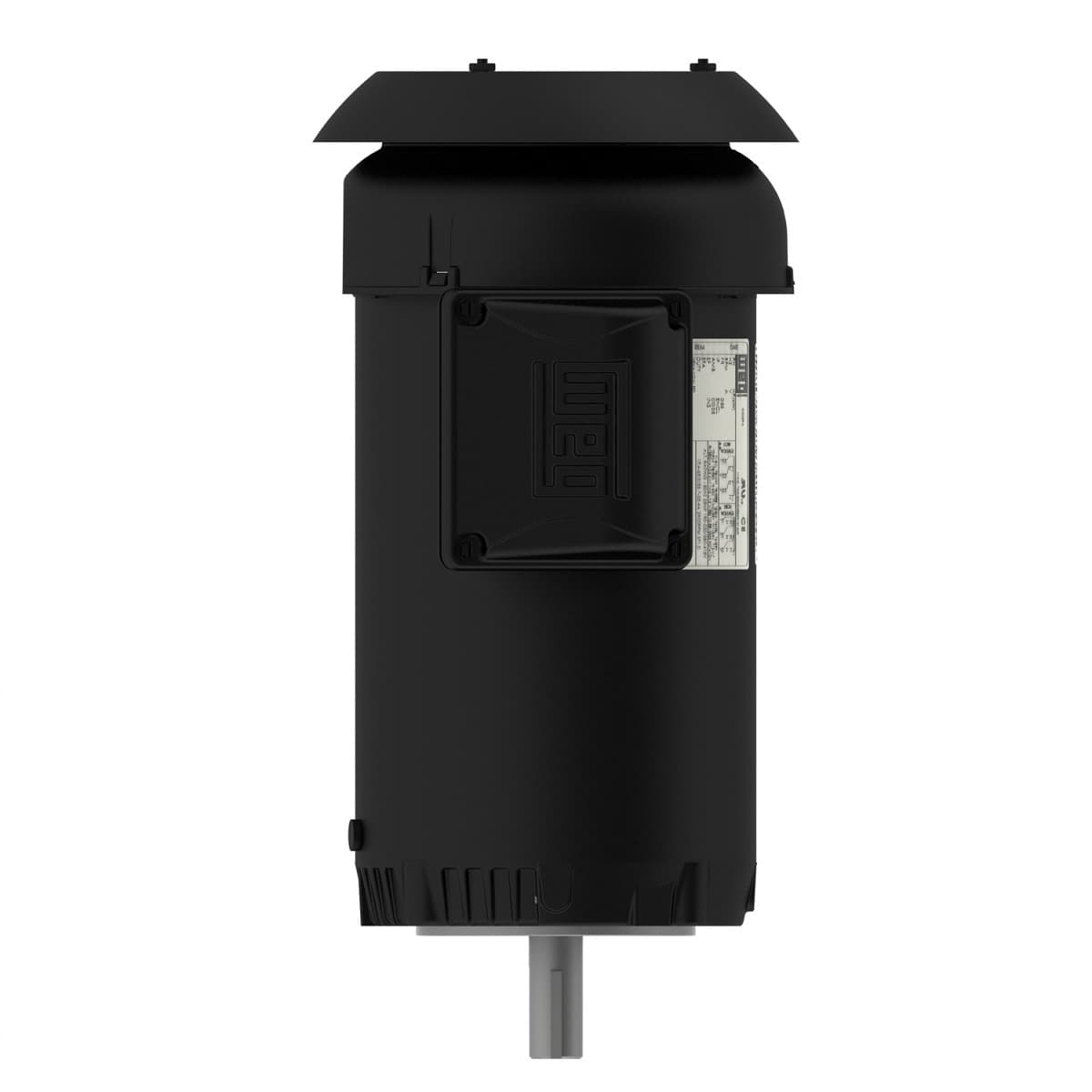

12677346 WEG AC Motors
Part#:12677346
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
Rolled Steel High Efficiency 1.5 HP 4P 143/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless
Check out the 12677346 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 4
- Moment of inertia (J) 0.1232 sq.ft.lb
- Degree of Protection IP55
- Terminal box¹ Left position
- L. R. Amperes 33.7/16.8 A
- Insulation Class F
- Noise level² 52.0 dB(A)
- No load current 2.74/1.37 A
- Service factor 1.15 (1.00 @ 208V)
- Standard NEMA MG-1
- Slip 2.22 %
- Design B
- Mounting W-6
- Flange C
- Frame 143/5TC
- Rated torque 4.48 ft.lb
- Duty Cycle Cont.(S1)
- Number of poles 4
- Rated voltage 230/460 V
- Locked rotor time 23s (cold) 13s (hot)
- Temperature rise 80 K
- Approx. weight³ 37.5 lb
- Output 1.5 HP (1.1 kW)
- Locked rotor torque 270 %
- Starting Method Direct On Line
- Output rating 1.5 HP
- Rated speed 1760 rpm
- Breakdown torque 340 %
- Enclosure IC411 - TEFC
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- LRC 7.8x(Code K)
- Altitude 1000 m.a.s.l.
- Voltage 230/460//190-220/380-415 V
- Rated current 4.32/2.16 A
- Ambient temperature -20°C to +40°C
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12677346 Specs
