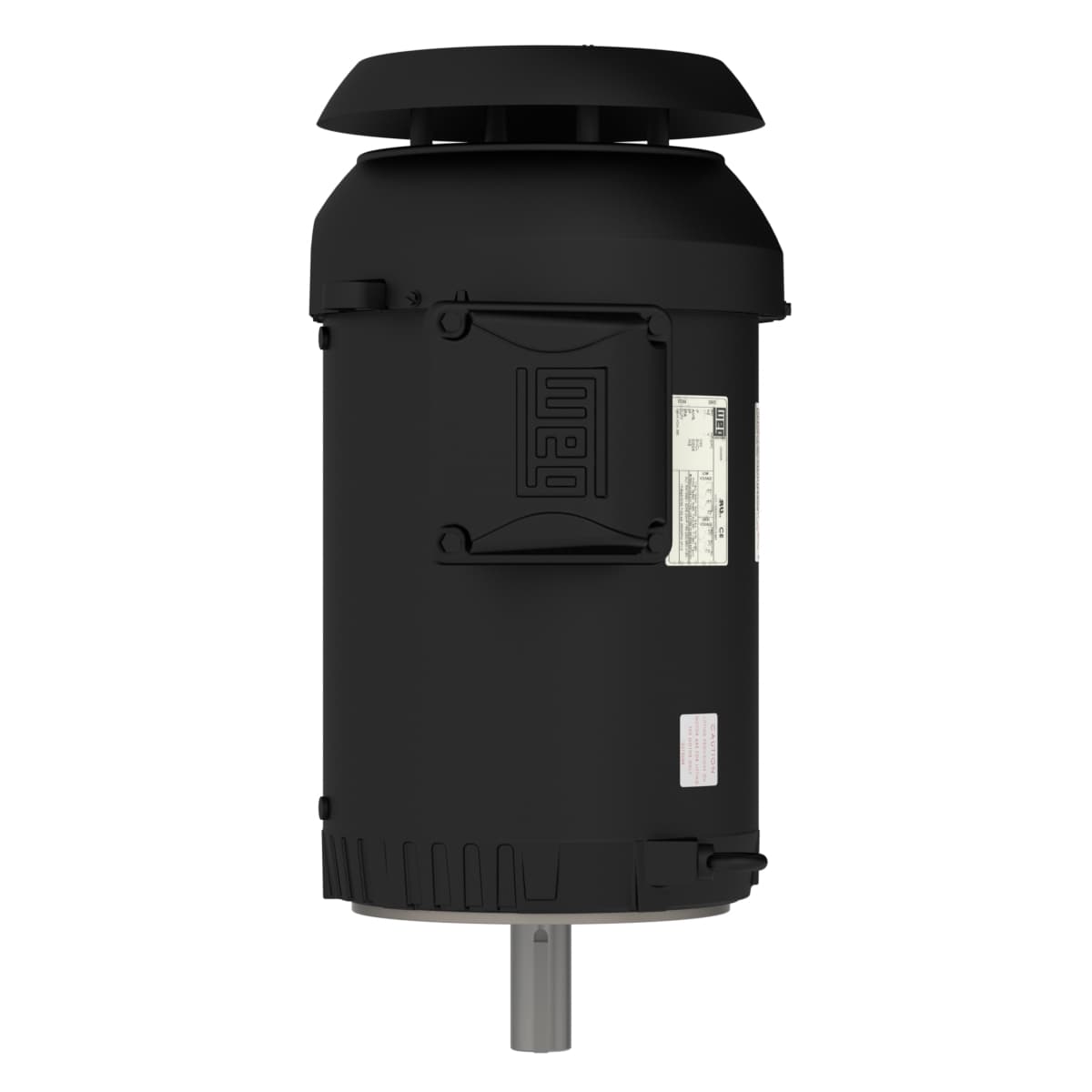

12677359 WEG AC Motors
Part#:12677359
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
Rolled Steel High Efficiency 10 HP 2P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless
Check out the 12677359 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 2
- Locked rotor torque 220 %
- Number of poles 2
- Flange C
- Rated current 23.6/11.8 A
- Locked rotor time 18s (cold) 10s (hot)
- Degree of Protection IP55
- Rated speed 3520 rpm
- Insulation Class F
- Enclosure IC411 - TEFC
- Noise level² 70.0 dB(A)
- Output 10 HP (7.5 kW)
- LRC 6.7x(Code G)
- Duty Cycle Cont.(S1)
- Mounting W-6
- Rated voltage 230/460 V
- Moment of inertia (J) 0.5496 sq.ft.lb
- Standard NEMA MG-1
- Voltage 230/460//190-220/380-415 V
- Frequency 60 Hz
- Temperature rise 80 K
- Rated torque 14.9 ft.lb
- Rotation¹ Both (CW and CCW)
- Approx. weight³ 143 lb
- Frame 213/5TC
- Breakdown torque 280 %
- Starting Method Direct On Line
- Terminal box¹ Left position
- L. R. Amperes 158/79.1 A
- No load current 9.26/4.63 A
- Altitude 1000 m.a.s.l.
- Output rating 10 HP
- Slip 2.22 %
- Design B
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12677359 Specs
