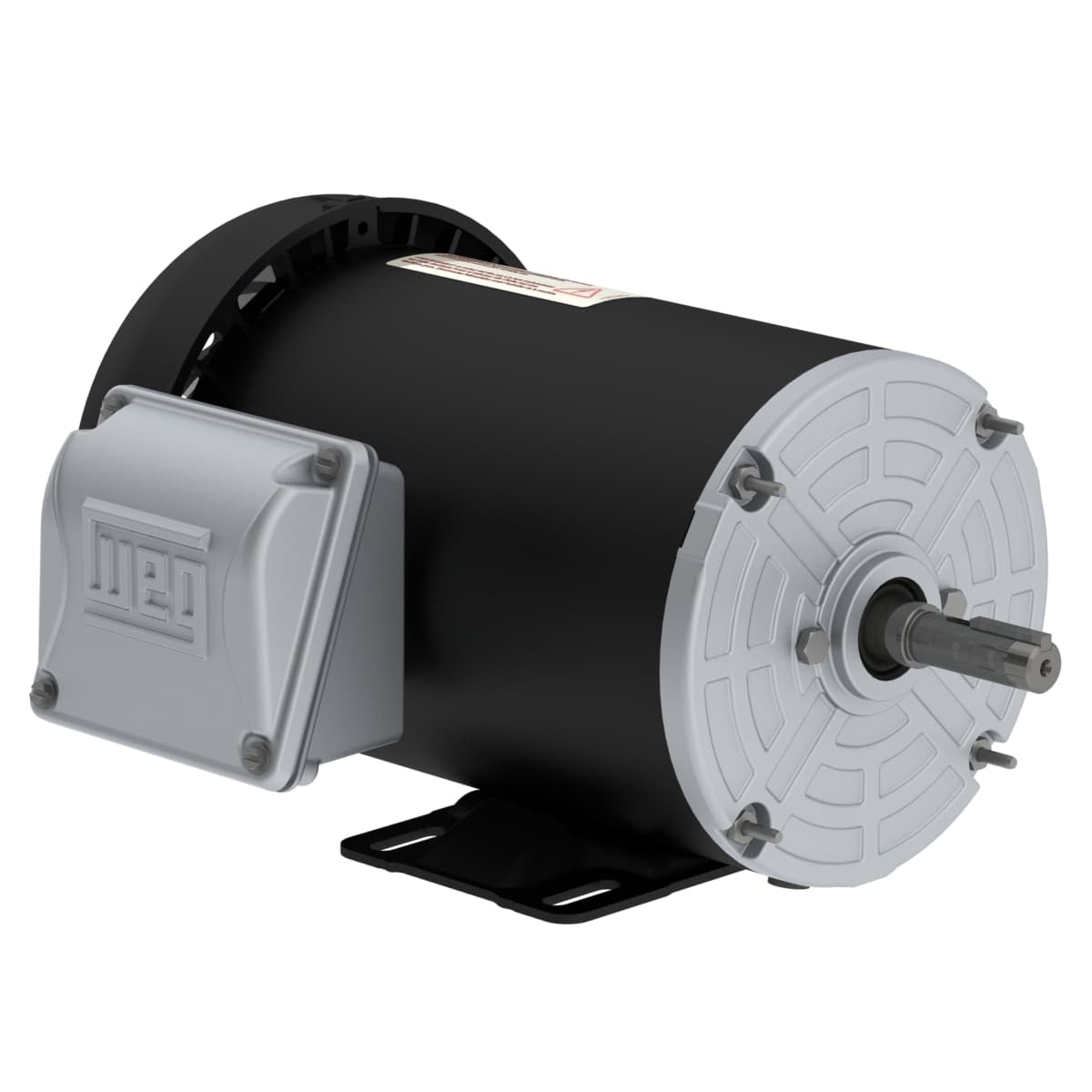

12676243 WEG AC Motors
Part#:12676243
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!
Rolled Steel Standard Efficiency 1 HP 2P 56 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 12676243 WEG price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 2
- Breakdown torque 290 %
- Mounting F-1
- Approx. weight³ 32.4 lb
- Output 1 HP (0.75 kW)
- Rated torque 1.51 ft.lb
- Starting Method Direct On Line
- Flange Without
- L. R. Amperes 8.70 A
- No load current 0.568 A
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Frequency 60 Hz
- Locked rotor time 43s (cold) 24s (hot)
- Noise level² 68.0 dB(A)
- Output rating 1 HP
- Slip 3.33 %
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Rated current 1.21 A
- Insulation Class F
- Temperature rise 80 K
- Voltage 575 V
- Rated speed 3480 rpm
- Duty Cycle Cont.(S1)
- Enclosure IC411 - TEFC
- Rated voltage 575 V
- Moment of inertia (J) 0.0643 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- LRC 7.2x(Code K)
- Degree of Protection IP55
- Synchronous speed 3600 rpm
- Frame 56
- Locked rotor torque 240 %
- Service factor 1.15
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
