12677351 WEG AC Motors
Part#:12677351
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

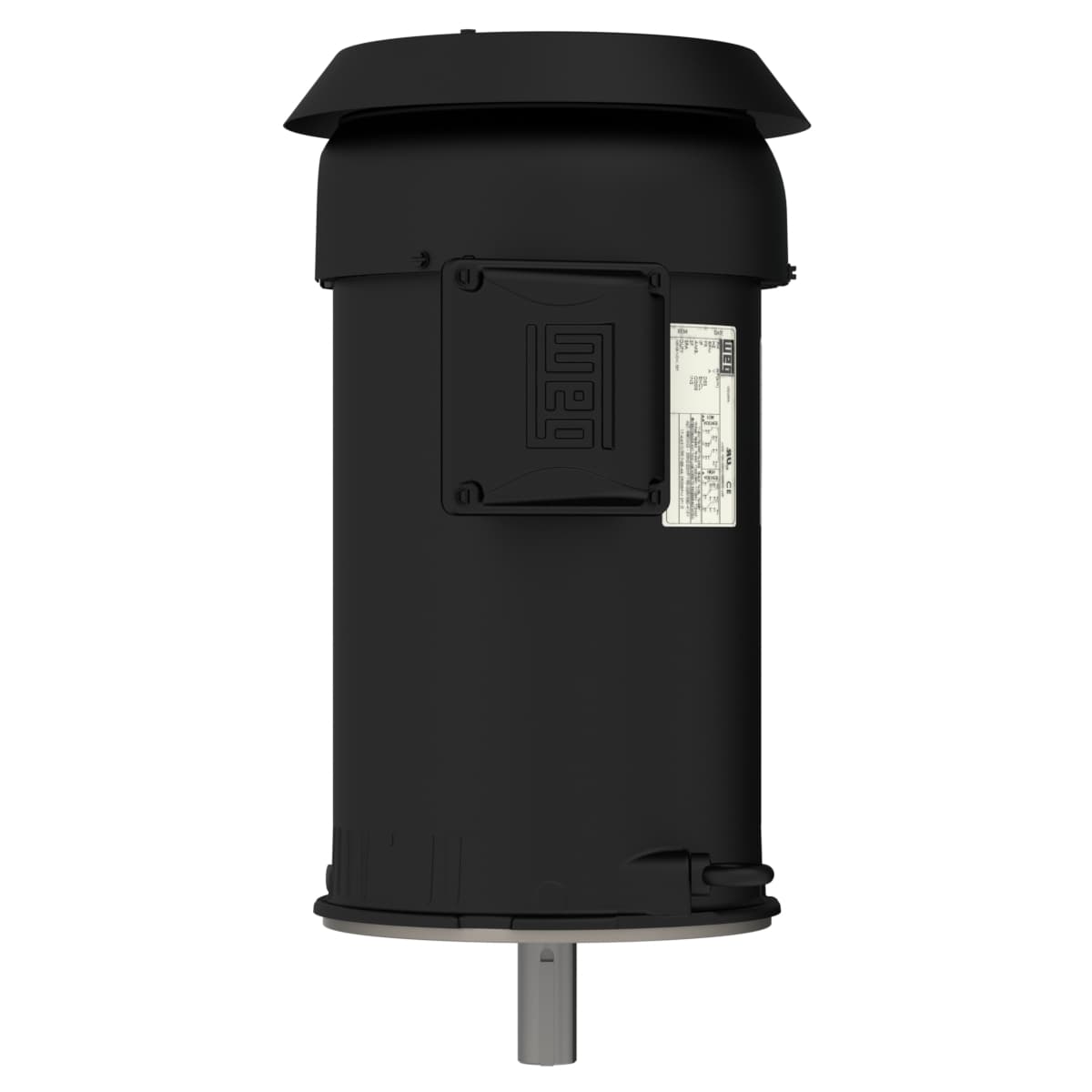

Rolled Steel High Efficiency 3 HP 4P 182/4TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Footless
Check out the 12677351 WEG price in the box on the right side or send a quick quote.
Product Details
- Frame 182/4TC
- Altitude 1000 m.a.s.l.
- Voltage 230/460//190-220/380-415 V
- Output 3 HP (2.2 kW)
- Insulation Class F
- Service factor 1.15
- Terminal box¹ Left position
- Number of Poles 4
- Mounting W-6
- Synchronous speed 1800 rpm
- No load current 4.60/2.30 A
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Rated voltage 230/460 V
- Breakdown torque 350 %
- Degree of Protection IP55
- Number of poles 4
- Rated current 8.10/4.05 A
- Design B
- Ambient temperature -20°C to +40°C
- Output rating 3 HP
- Frequency 60 Hz
- LRC 7.7x(Code K)
- Moment of inertia (J) 0.2935 sq.ft.lb
- Standard NEMA MG-1
- Rated speed 1760 rpm
- Rated torque 8.95 ft.lb
- Starting Method Direct On Line
- Approx. weight³ 72.7 lb
- L. R. Amperes 62.4/31.2 A
- Locked rotor torque 240 %
- Duty Cycle Cont.(S1)
- Noise level² 56.0 dB(A)
- Slip 2.22 %
- Locked rotor time 28s (cold) 16s (hot)
- Enclosure IC411 - TEFC
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12677351 Specs
