12676803 WEG AC Motors
Part#:12676803
Manufacturer:WEG
Product Lifecycle:Discontinued
Get a quick Quote!

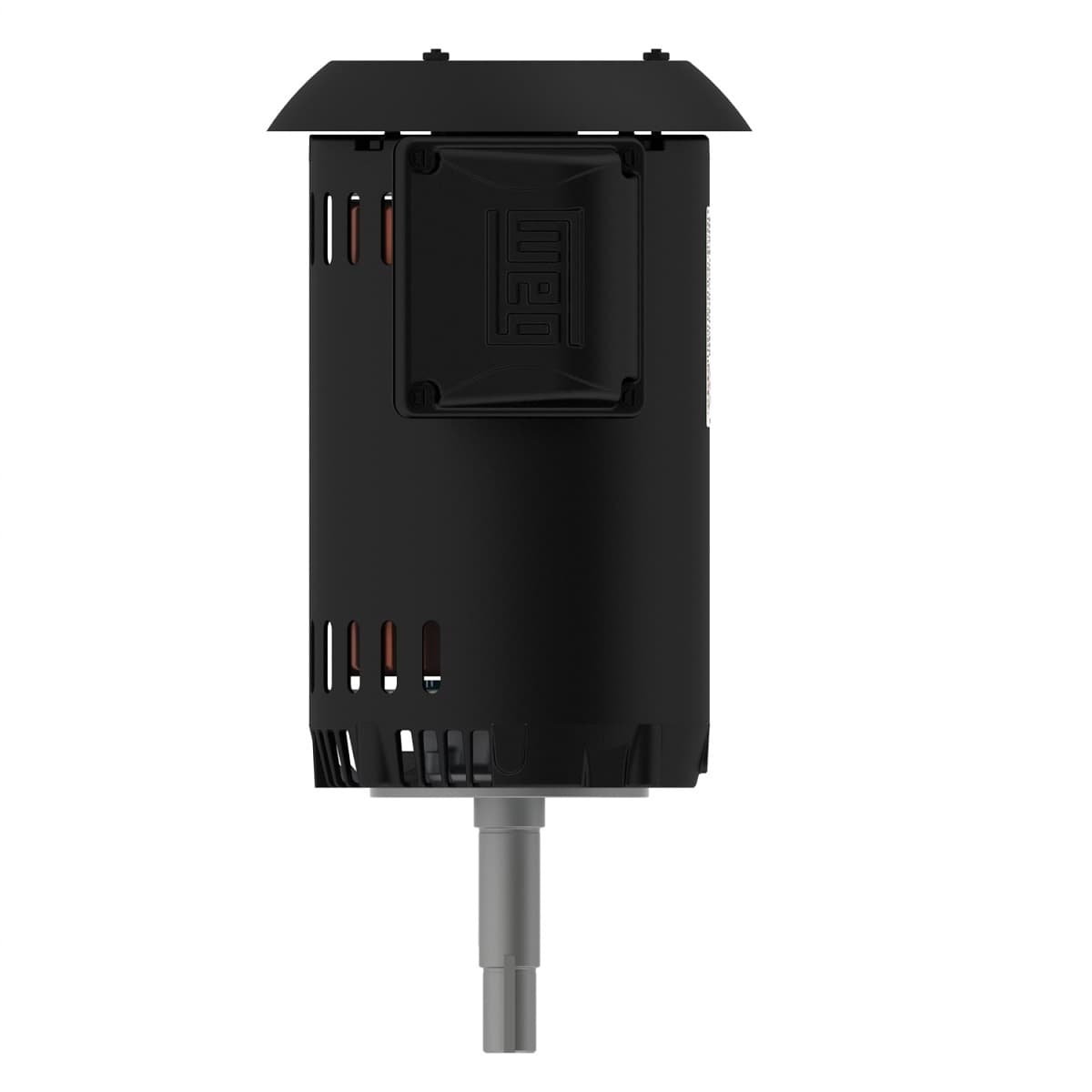

Rolled Steel JM Pump High Efficiency 1.5 HP 4P 143/5JM 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Footless
Check out the 12676803 WEG price in the box on the right side or send a quick quote.
Product Details
- Rated speed 1755 rpm
- LRC 7.6x(Code K)
- Starting Method Direct On Line
- Output rating 1.5 HP
- Frequency 60 Hz
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Locked rotor time 21s (cold) 12s (hot)
- Noise level² 52.0 dB(A)
- Number of poles 4
- Number of Poles 4
- Locked rotor torque 270 %
- Frame 143/5JM
- Rated current 4.38/2.19 A
- Design B
- Altitude 1000 m.a.s.l.
- Output 1.5 HP (1.1 kW)
- No load current 2.89/1.44 A
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Slip 2.50 %
- Breakdown torque 350 %
- Insulation Class F
- Approx. weight³ 37.1 lb
- Enclosure IC01 - ODP
- Flange C
- Terminal box¹ Left position
- L. R. Amperes 33.3/16.6 A
- Rated torque 4.49 ft.lb
- Service factor 1.15 (1.00 @ 208V)
- Mounting W-6
- Voltage 230/460//190-220/380-415 V
- Rated voltage 230/460 V
- Moment of inertia (J) 0.1168 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12676803 Specs
1-year warranty
