12518ST3QIERB444T-W2 WEG AC Motors
Part#:12518ST3QIERB444T-W2
Manufacturer:WEG
Alt. Part#:7891327446373
Product Lifecycle:Active
Get a quick Quote!

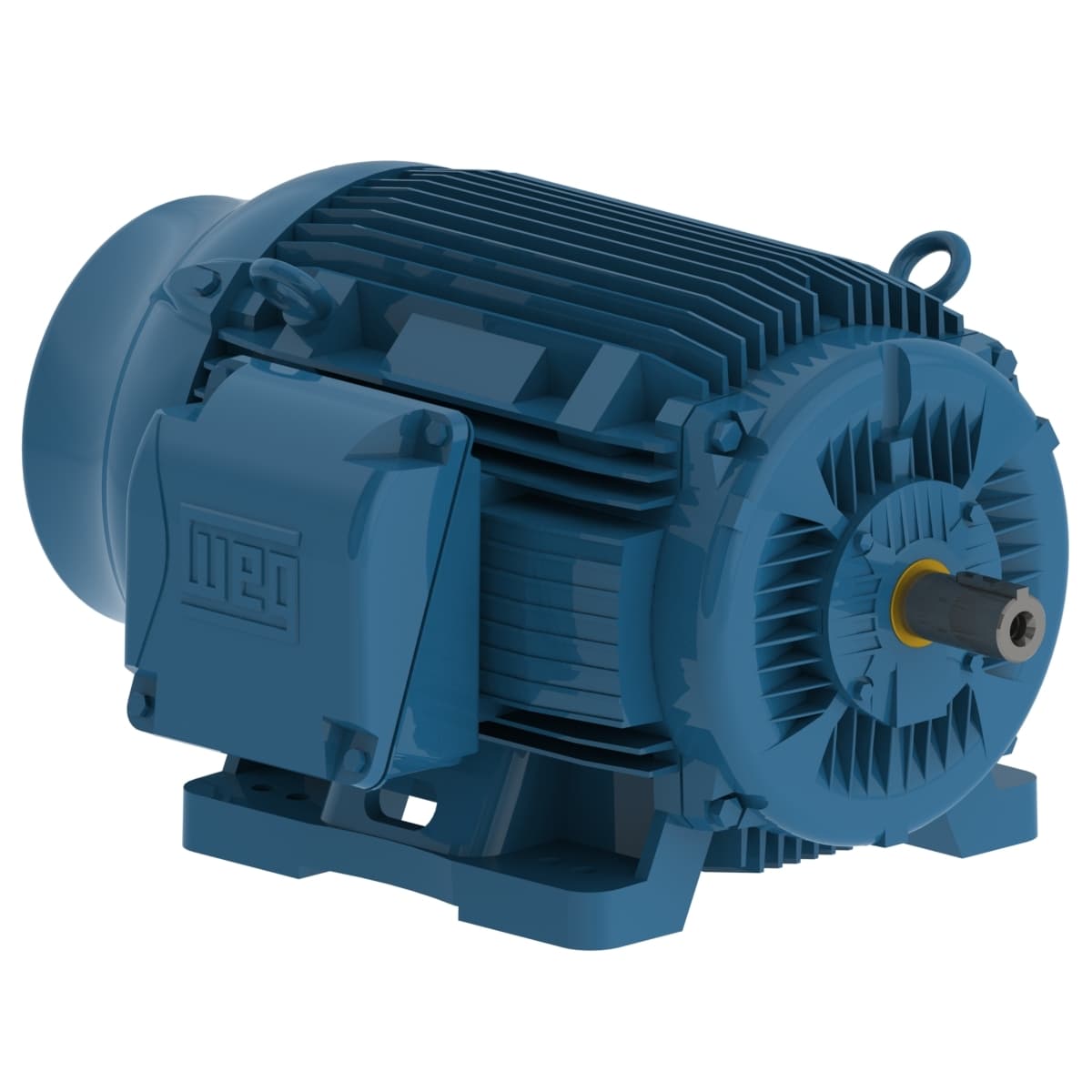

W22 IEEE 841 NEMA Premium Efficiency 125 HP 4P 444/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 12518ST3QIERB444T-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed1785 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Slip 0.83 %
- Design B
- Service factor 1.15
- Synchronous speed 1800 rpm
- Rated voltage 460 V
- Frequency 60 Hz
- Locked rotor time 48s (cold) 27s (hot)
- Insulation Class F
- Number of poles 4
- L. R. Amperes 905 A
- LRC 6.5x(Code G)
- Mounting F-1
- Rated current 139 A
- Breakdown torque 229 %
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- No load current 46.0 A
- Moment of inertia (J) 57.2 sq.ft.lb
- Degree of Protection IP56
- Rated speed 1785 rpm
- Locked rotor torque 200 %
- Output 125 HP
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Noise level² 73.0 dB(A)
- Voltage 460 V
- Output rating 125 HP
- Frame 444/5T
- Number of Poles 4
- Rated torque 368 ft.lb
- Temperature rise 80 K
- Altitude 1000 m.a.s.l.
- Rotation¹ Both (CW and CCW)
- Standard NEMA MG-1
- Flange Without
- Duty Cycle Cont.(S1)
- Approx. weight³ 1535 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12518ST3QIERB444T-W2 Specs
1-year warranty
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of WEG
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
WEG Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many WEG Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from WEG, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
