12518ST3HIE444T-W22 WEG AC Motors
Part#:12518ST3HIE444T-W22
Manufacturer:WEG
Alt. Part#:7891327187597
Product Lifecycle:Active
Get a quick Quote!

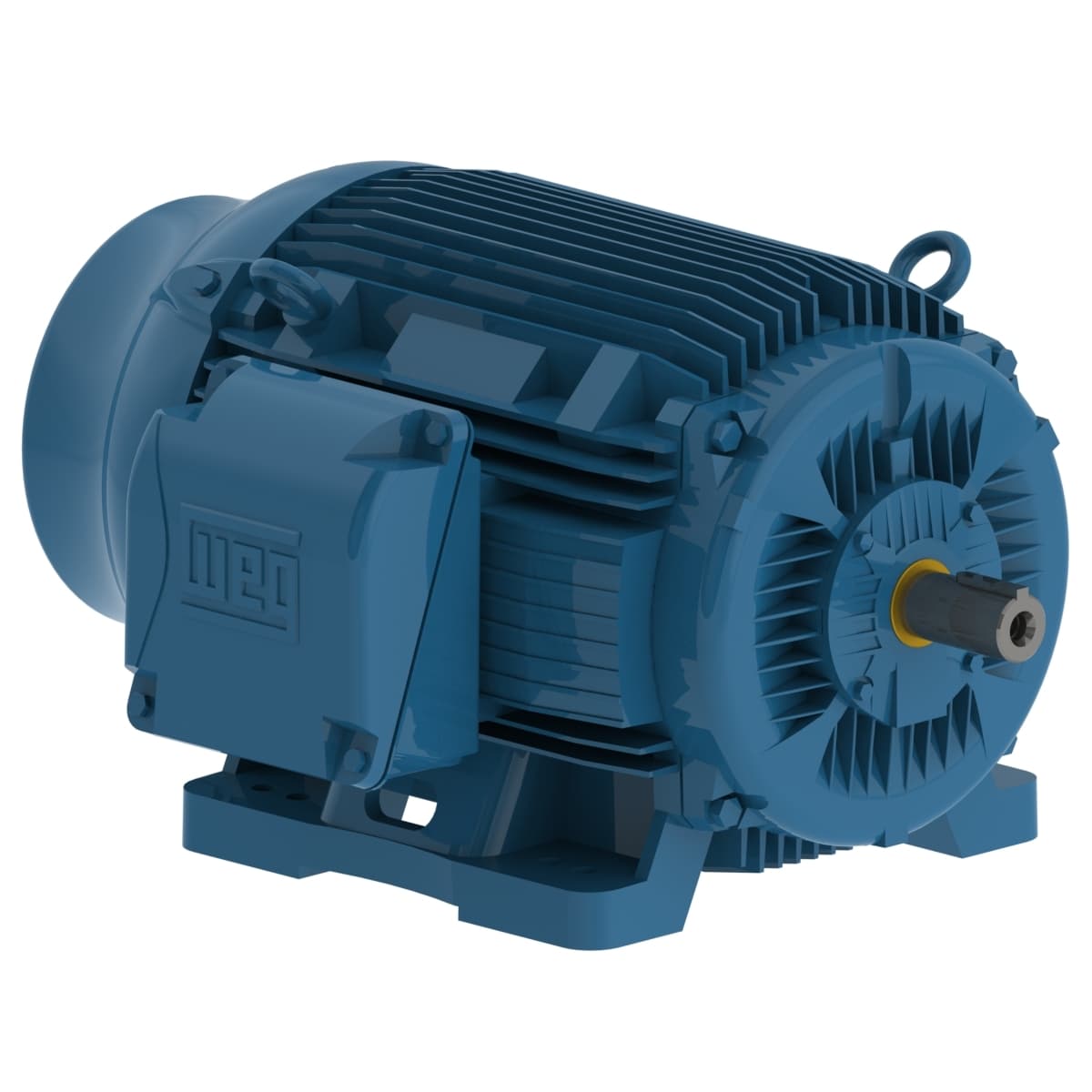

W22 IEEE 841 NEMA Premium Efficiency 125 HP 4P 444/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 12518ST3HIE444T-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed1785 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- Output 125 HP
- Service factor 1.15
- Synchronous speed 1800 rpm
- Rated speed 1785 rpm
- Rated torque 368 ft.lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Frequency 60 Hz
- Insulation Class F
- Starting Method Direct On Line
- Output rating 125 HP
- Rated current 111 A
- LRC 6.5x(Code G)
- Approx. weight³ 1519 lb
- Locked rotor time 48s (cold) 27s (hot)
- Number of Poles 4
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Number of poles 4
- Rated voltage 575 V
- No load current 36.8 A
- Mounting F-1
- Terminal box¹ Left position
- Altitude 1000 m.a.s.l.
- Voltage 575 V
- Slip 0.83 %
- Locked rotor torque 200 %
- Degree of Protection IP56
- Noise level² 73.0 dB(A)
- Frame 444/5T
- Moment of inertia (J) 57.2 sq.ft.lb
- Breakdown torque 229 %
- Flange Without
- L. R. Amperes 724 A
- Design B
- Ambient temperature -20°C to +40°C
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
