12518ET3E444TC-W22 WEG AC Motors
Part#:12518ET3E444TC-W22
Manufacturer:WEG
Alt. Part#:7909018220406
Product Lifecycle:Active
Get a quick Quote!

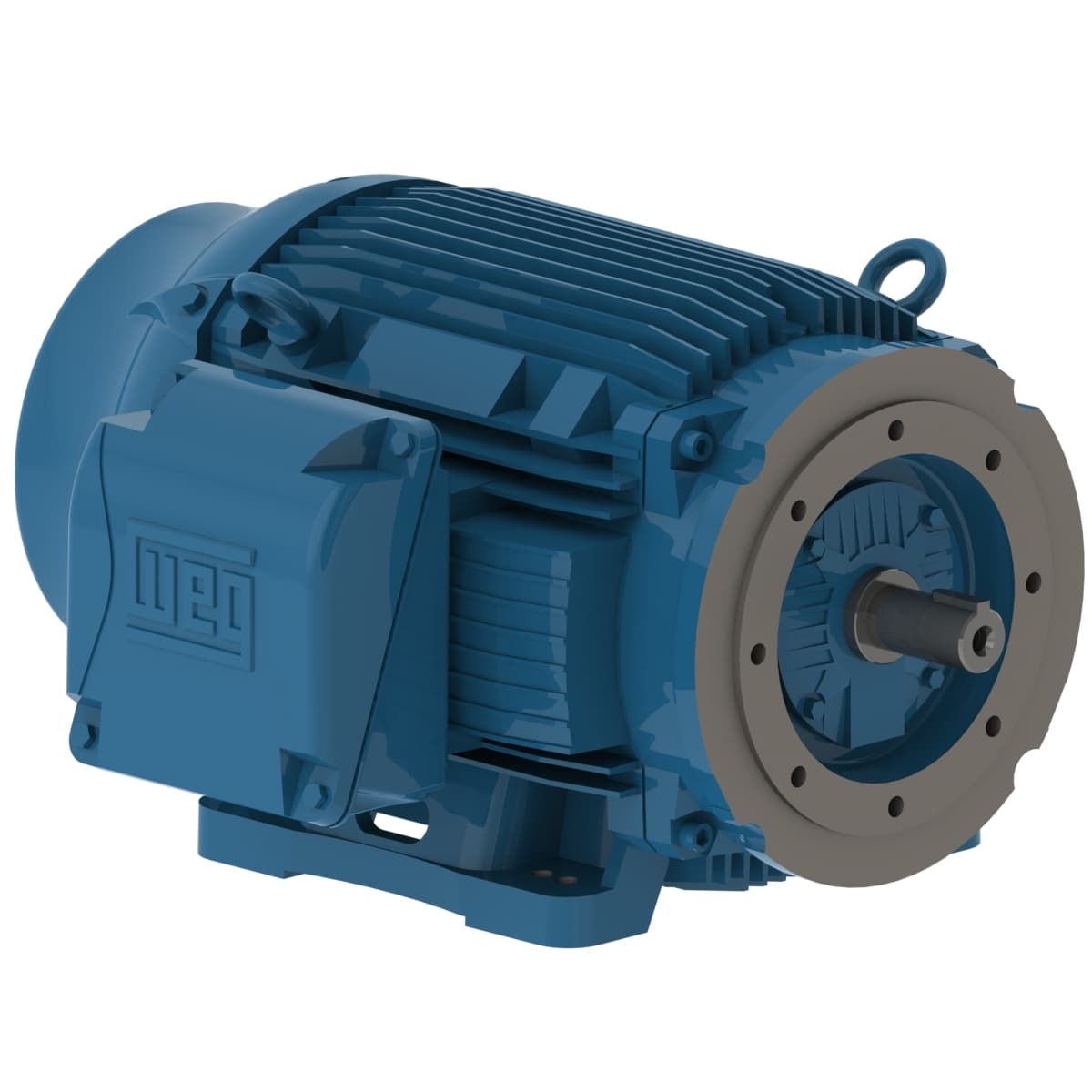

W22 NEMA Premium Efficiency 125 HP 4P 444/5TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Check out the 12518ET3E444TC-W22 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed1785 rpm
- Number of Poles4 Pole
- Voltage230/460 V
- Flange TypeC
- L. R. Amperes 1811/905 A
- No load current 92.0/46.0 A
- Number of Poles 4
- Design B
- Starting Method Direct On Line
- Number of poles 4
- Frame 444/5TC
- Rated torque 368 ft.lb
- Mounting F-1
- Ambient temperature -20°C to +40°C
- Output 125 HP
- Breakdown torque 229 %
- Altitude 1000 m.a.s.l.
- Output rating 125 HP
- Degree of Protection IP55
- Voltage 230/460//380 V
- Slip 0.83 %
- Moment of inertia (J) 57.2 sq.ft.lb
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated current 279/139 A
- Locked rotor time 48s (cold) 27s (hot)
- Terminal box¹ Left position
- Rated voltage 230/460 V
- LRC 6.5x(Code G)
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Flange C
- Locked rotor torque 200 %
- Enclosure IC411 - TEFC
- Synchronous speed 1800 rpm
- Rated speed 1785 rpm
- Service factor 1.15
- Approx. weight³ 1564 lb
- Frequency 60 Hz
- Temperature rise 80 K
- Noise level² 73.0 dB(A)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12518ET3E444TC-W22 Specs
1-year warranty
