12512XT3G445T WEG AC Motors
Part#:12512XT3G445T
Manufacturer:WEG
Alt. Part#:7892304607886
Product Lifecycle:Active
Get a quick Quote!

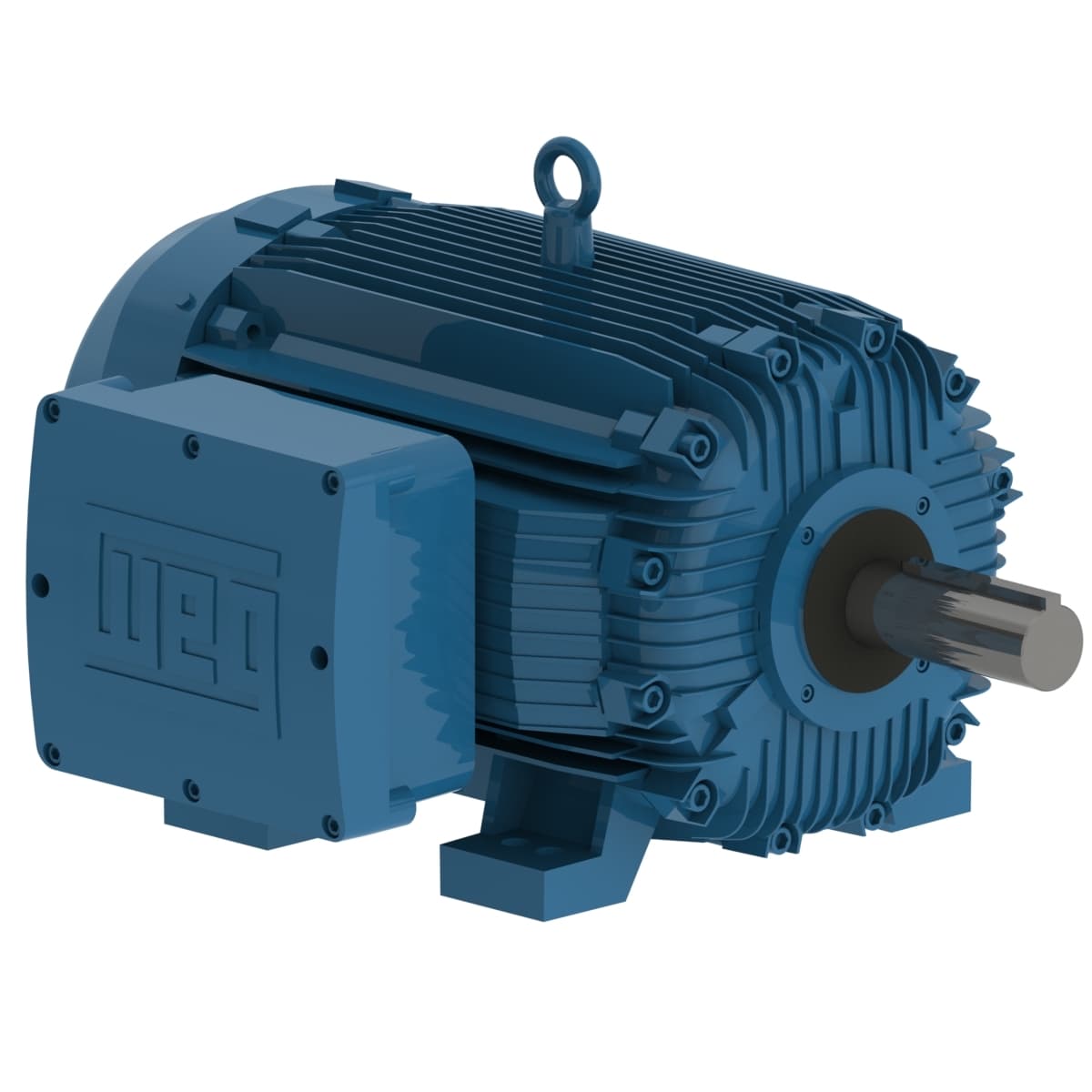

W21 Explosion-proof Motor NEMA Premium Efficiency 125 HP 6P 444/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 12512XT3G445T WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed1185 rpm
- Number of Poles6 Pole
- Voltage460 V
- Flange TypeWithout
- Design B
- No load current 65.0 A
- Duty Cycle Cont.(S1)
- Mounting F-1
- Voltage 460 V
- Terminal box¹ Left position
- Rated speed 1185 rpm
- Frequency 60 Hz
- Rated current 150 A
- Service factor 1.15
- Rated voltage 460 V
- Slip 1.25 %
- LRC 7.4x(Code H)
- Enclosure IC411 - TEFC
- L. R. Amperes 1110 A
- Rated torque 554 ft.lb
- Ambient temperature -20°C to +40°C
- Altitude 1000 m.a.s.l.
- Approx. weight³ 2256 lb
- Flange Without
- Degree of Protection IP55
- Noise level² 70.0 dB(A)
- Frame 444/5T
- Insulation Class F
- Temperature rise 80 K
- Synchronous speed 1200 rpm
- Number of poles 6
- Output 125 HP
- Moment of inertia (J) 104 sq.ft.lb
- Locked rotor torque 229 %
- Rotation¹ Both (CW and CCW)
- Output rating 125 HP
- Number of Poles 6
- Locked rotor time 73s (cold) 41s (hot)
- Breakdown torque 240 %
- Starting Method Direct On Line
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12512XT3G445T Specs
