12518OP3GFP405TS WEG AC Motors
Part#:12518OP3GFP405TS
Manufacturer:WEG
Alt. Part#:7891327473782
Product Lifecycle:Active
Get a quick Quote!

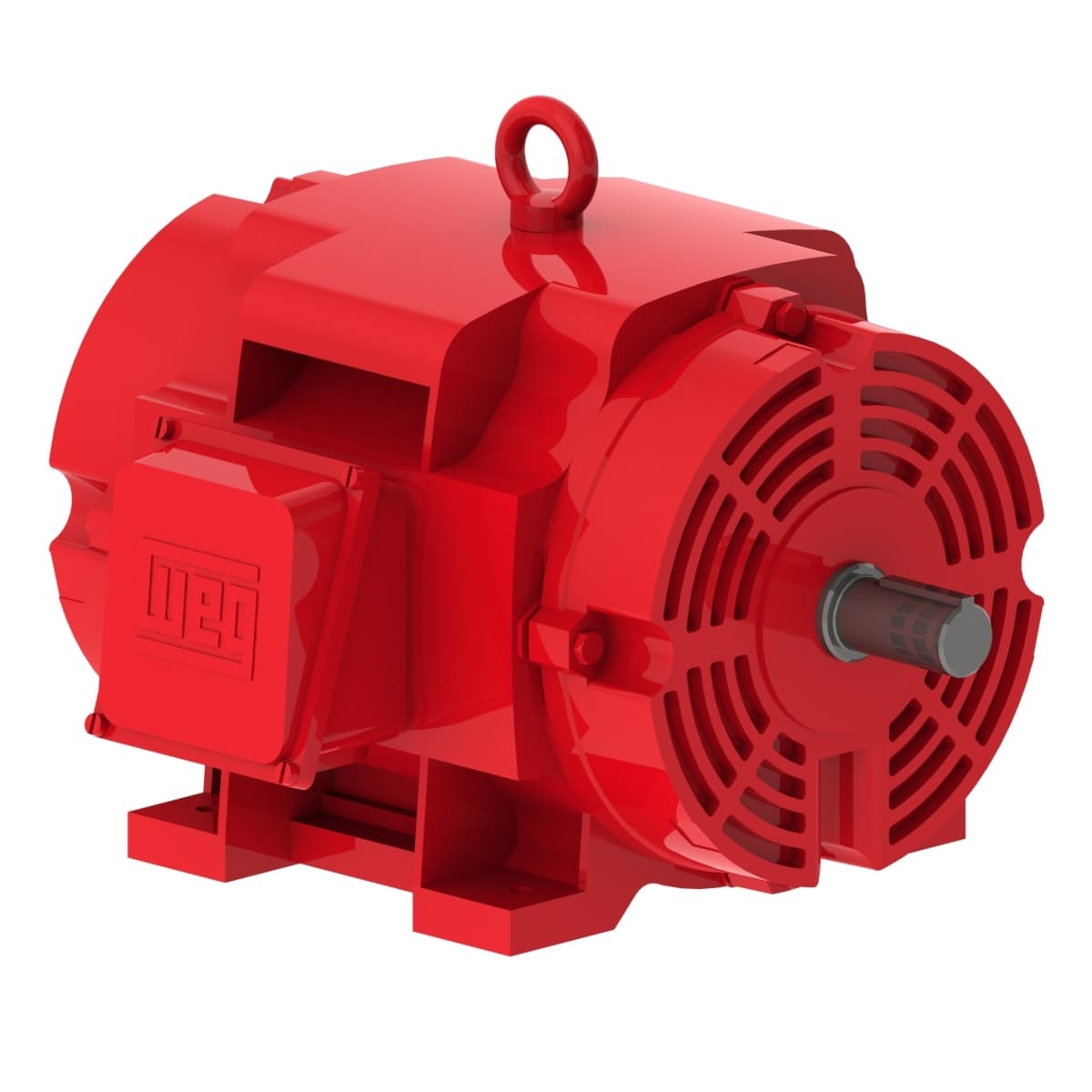

ODP High Efficiency 125 HP 4P 404/5TS 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 12518OP3GFP405TS WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed1775 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeWithout
- Slip 1.39 %
- Locked rotor time 19s (cold) 11s (hot)
- Rated current 146 A
- Rated voltage 460 V
- LRC 6.2x(Code G)
- Locked rotor torque 240 %
- Rated torque 370 ft.lb
- Service factor 1.15
- Duty Cycle Cont.(S1)
- Enclosure IC01 - ODP
- Rotation¹ Both (CW and CCW)
- Frame 404/5TS
- L. R. Amperes 905 A
- Frequency 60 Hz
- Number of Poles 4
- Design B
- Insulation Class F
- Breakdown torque 260 %
- Degree of Protection IP23
- Altitude 1000 m.a.s.l.
- Approx. weight³ 927 lb
- Voltage 460 V
- Output rating 125 HP
- Synchronous speed 1800 rpm
- Flange Without
- Noise level² 69.0 dB(A)
- Terminal box¹ Left position
- Rated speed 1775 rpm
- Output 125 HP
- No load current 44.0 A
- Moment of inertia (J) 20.8 sq.ft.lb
- Starting Method Direct On Line
- Temperature rise 105 K
- Ambient temperature -20°C to +40°C
- Mounting F-1
- Number of poles 4
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12518OP3GFP405TS Specs
1-year warranty
