12518ET3G444TC-W22G WEG AC Motors
Part#:12518ET3G444TC-W22G
Manufacturer:WEG
Alt. Part#:7909265723347
Product Lifecycle:Active
Get a quick Quote!

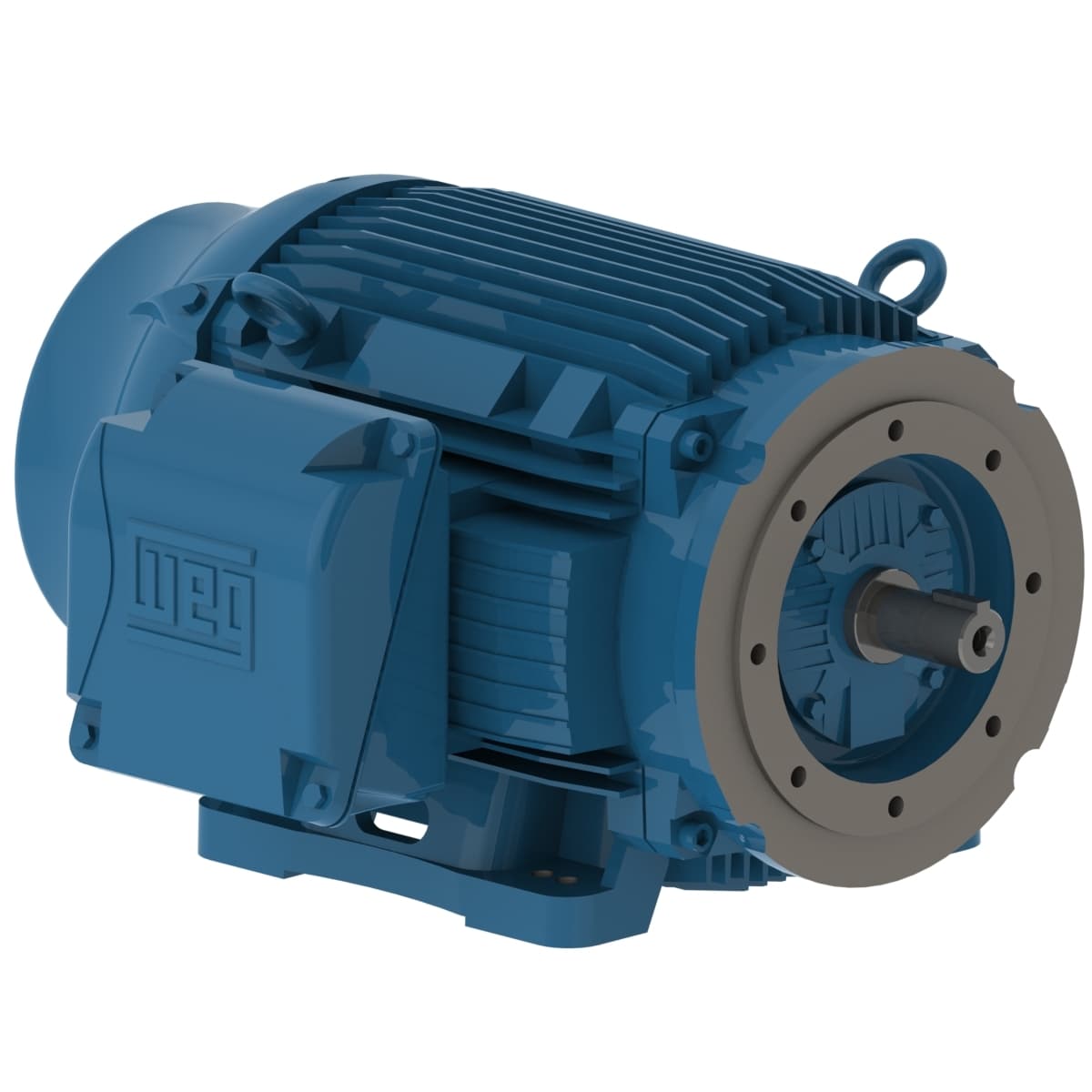

W22 NEMA Premium Efficiency 125 HP 4P 444/5TC 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 12518ET3G444TC-W22G WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed1785 rpm
- Number of Poles4 Pole
- Voltage460 V
- Flange TypeC
- Rated current 139 A
- Slip 0.83 %
- Noise level² 73.0 dB(A)
- Output rating 125 HP
- Frequency 60 Hz
- Rated torque 368 ft.lb
- No load current 46.0 A
- Duty Cycle Cont.(S1)
- Frame 444/5TC
- Locked rotor torque 200 %
- Insulation Class F
- Output 125 HP
- Starting Method Direct On Line
- Voltage 460 V
- Altitude 1000 m.a.s.l.
- Temperature rise 80 K
- Standard NEMA MG-1
- Breakdown torque 229 %
- Number of poles 4
- L. R. Amperes 905 A
- Approx. weight³ 1668 lb
- Rated speed 1785 rpm
- LRC 6.5x(Code G)
- Rotation¹ Both (CW and CCW)
- Flange C
- Number of Poles 4
- Service factor 1.15
- Enclosure IC411 - TEFC
- Locked rotor time 48s (cold) 27s (hot)
- Ambient temperature -20°C to +40°C
- Synchronous speed 1800 rpm
- Design B
- Degree of Protection IP55
- Terminal box¹ Left position
- Rated voltage 460 V
- Moment of inertia (J) 57.2 sq.ft.lb
- Mounting F-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12518ET3G444TC-W22G Specs
1-year warranty
