12512ST3QIERB445T-W2 WEG AC Motors
Part#:12512ST3QIERB445T-W2
Manufacturer:WEG
Alt. Part#:7891327730663
Product Lifecycle:Active
Get a quick Quote!

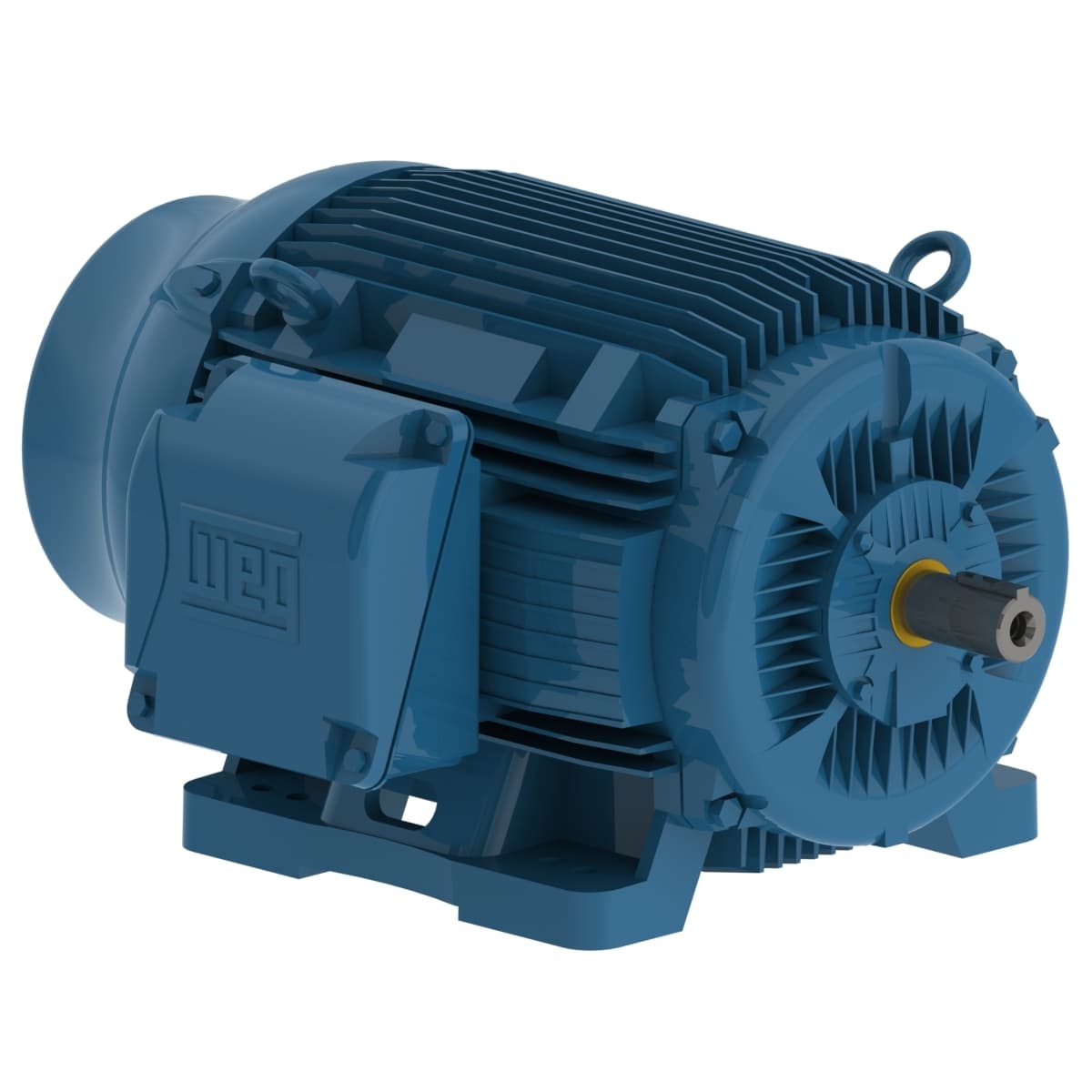

W22 IEEE 841 NEMA Premium Efficiency 125 HP 6P 444/5T 3Ph 460 V 60 Hz IC411 - TEFC - Foot-mounted
Check out the 12512ST3QIERB445T-W2 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed1188 rpm
- Number of Poles6 Pole
- Voltage460 V
- Flange TypeWithout
- LRC 6.3x(Code G)
- Temperature rise 80 K
- Standard NEMA MG-1
- Output 125 HP
- Rated voltage 460 V
- Rated torque 553 ft.lb
- Service factor 1.15
- Degree of Protection IP56
- Noise level² 69.0 dB(A)
- Voltage 460 V
- Locked rotor time 34s (cold) 19s (hot)
- Starting Method Direct On Line
- Number of poles 6
- Slip 1.00 %
- Moment of inertia (J) 104 sq.ft.lb
- Duty Cycle Cont.(S1)
- Output rating 125 HP
- Breakdown torque 229 %
- Ambient temperature -20°C to +40°C
- Approx. weight³ 1804 lb
- Number of Poles 6
- L. R. Amperes 903 A
- Design B
- Mounting F-1
- Rated speed 1188 rpm
- No load current 53.0 A
- Altitude 1000 m.a.s.l.
- Synchronous speed 1200 rpm
- Frequency 60 Hz
- Locked rotor torque 210 %
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Frame 444/5T
- Rated current 143 A
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Flange Without
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12512ST3QIERB445T-W2 Specs
