12518OT3H405T-W40 WEG AC Motors
Part#:12518OT3H405T-W40
Manufacturer:WEG
Alt. Part#:7909323907276
Product Lifecycle:Active
Get a quick Quote!

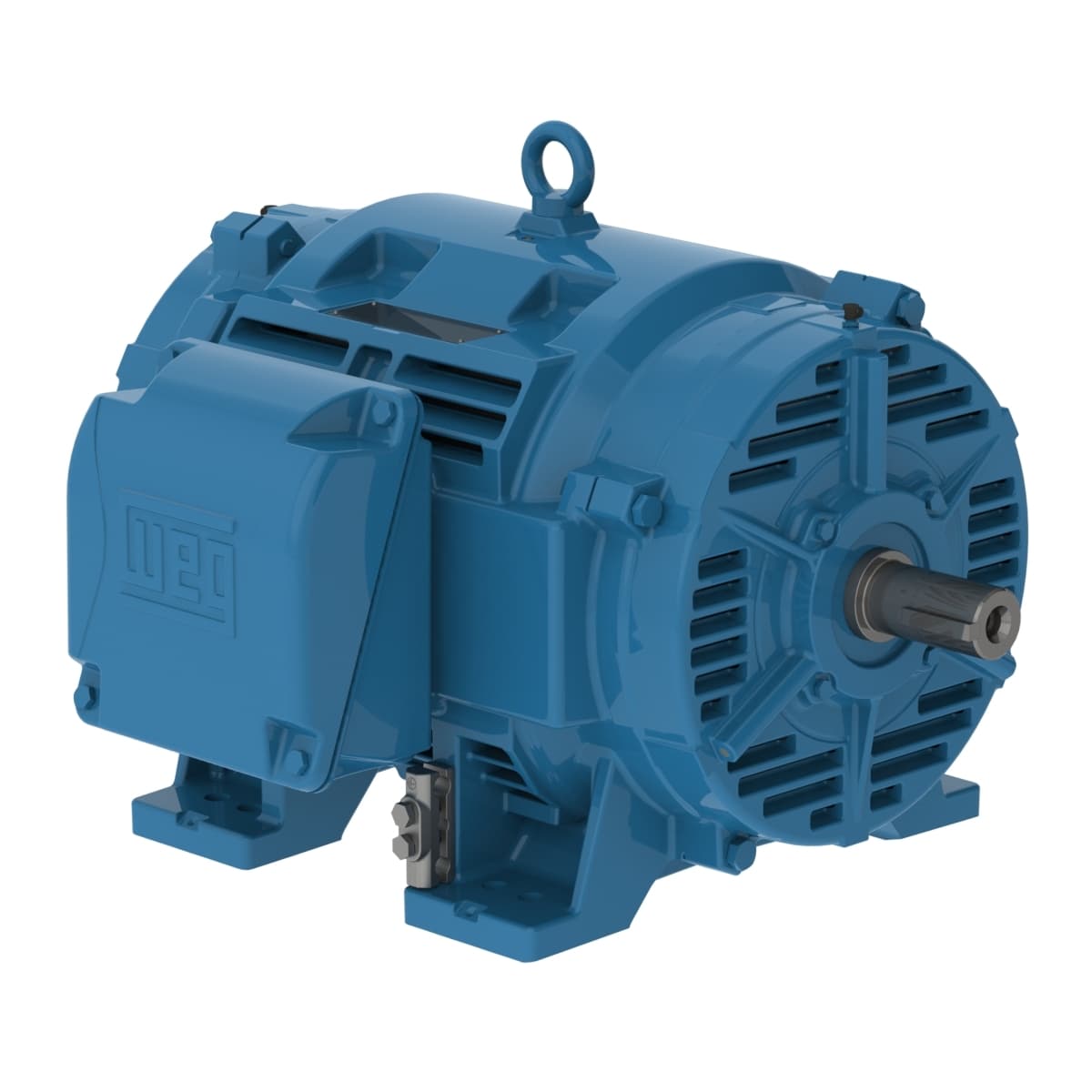

W40 NEMA Premium Efficiency 125 HP 4P 404/5T 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 12518OT3H405T-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed1780 rpm
- Number of Poles4 Pole
- Voltage575 V
- Flange TypeWithout
- L. R. Amperes 762 A
- Locked rotor torque 270 %
- Ambient temperature -20°C to +40°C
- Output rating 125 HP
- Rated voltage 575 V
- Locked rotor time 18s (cold) 10s (hot)
- Degree of Protection IP23
- Slip 1.11 %
- Breakdown torque 260 %
- Mounting F-1
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- Insulation Class F
- Duty Cycle Cont.(S1)
- Frame 404/5T
- Design B
- Altitude 1000 m.a.s.l.
- Number of poles 4
- Rated current 110 A
- Moment of inertia (J) 25.5 sq.ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- Rated speed 1780 rpm
- Temperature rise 80 K
- Voltage 575 V
- LRC 6.9x(Code G)
- Rated torque 369 ft.lb
- Noise level² 69.0 dB(A)
- Flange Without
- Number of Poles 4
- No load current 37.6 A
- Enclosure IC01 - ODP
- Approx. weight³ 1058 lb
- Terminal box¹ Left position
- Output 125 HP
- Service factor 1.25
- Rotation¹ Both (CW and CCW)
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12518OT3H405T-W40 Specs
