12512OT3G445T-W40G WEG AC Motors
Part#:12512OT3G445T-W40G
Manufacturer:WEG
Alt. Part#:7909323906958
Product Lifecycle:Active
Get a quick Quote!

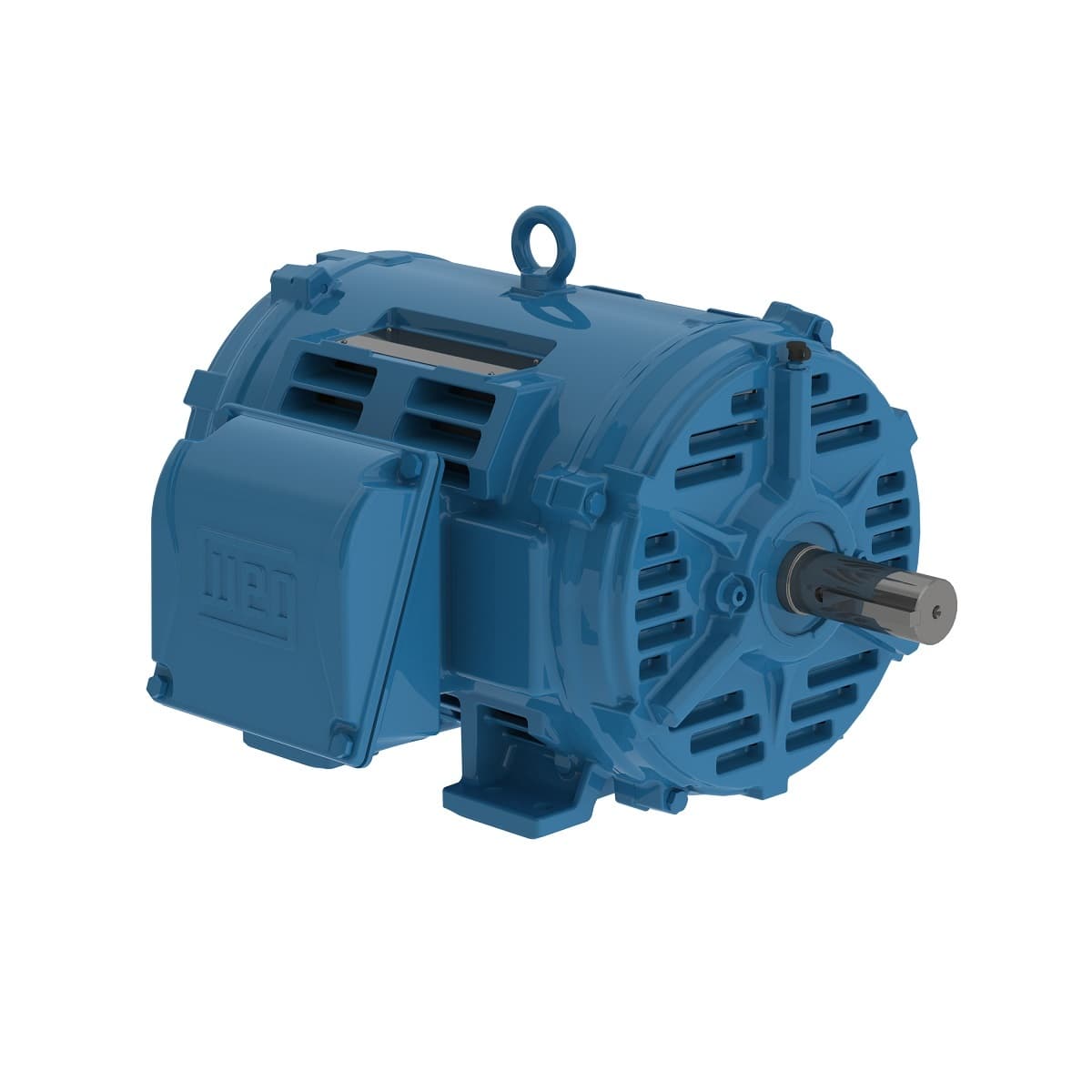

W40 NEMA Premium Efficiency 125 HP 6P 444/5T 3Ph 460//380 V 60//50 Hz IC01 - ODP - Foot-mounted
Check out the 12512OT3G445T-W40G WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating125 HP
- Rated Speed1189 rpm
- Number of Poles6 Pole
- Voltage460 V
- Flange TypeWithout
- Frequency 60 Hz
- Moment of inertia (J) 63.2 sq.ft.lb
- Enclosure IC01 - ODP
- Synchronous speed 1200 rpm
- Rated current 154 A
- Degree of Protection IP23
- Number of poles 6
- Number of Poles 6
- L. R. Amperes 970 A
- LRC 6.3x(Code G)
- Insulation Class F
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Terminal box¹ Left position
- Noise level² 69.0 dB(A)
- Frame 444/5T
- Rated speed 1189 rpm
- Rated torque 552 ft.lb
- Breakdown torque 250 %
- Temperature rise 80 K
- Starting Method Direct On Line
- Flange Without
- Output rating 125 HP
- Slip 0.92 %
- Service factor 1.25
- Altitude 1000 m.a.s.l.
- Voltage 460//380 V
- Locked rotor time 19s (cold) 11s (hot)
- Design B
- Rotation¹ Both (CW and CCW)
- Output 125 HP
- No load current 66.0 A
- Duty Cycle Cont.(S1)
- Mounting F-1
- Rated voltage 460 V
- Locked rotor torque 210 %
- Approx. weight³ 1389 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 12512OT3G445T-W40G Specs
