05036OT3V324JMV-W40 WEG AC Motors
Part#:05036OT3V324JMV-W40
Manufacturer:WEG
Alt. Part#:7909522293330
Product Lifecycle:Active
Get a quick Quote!

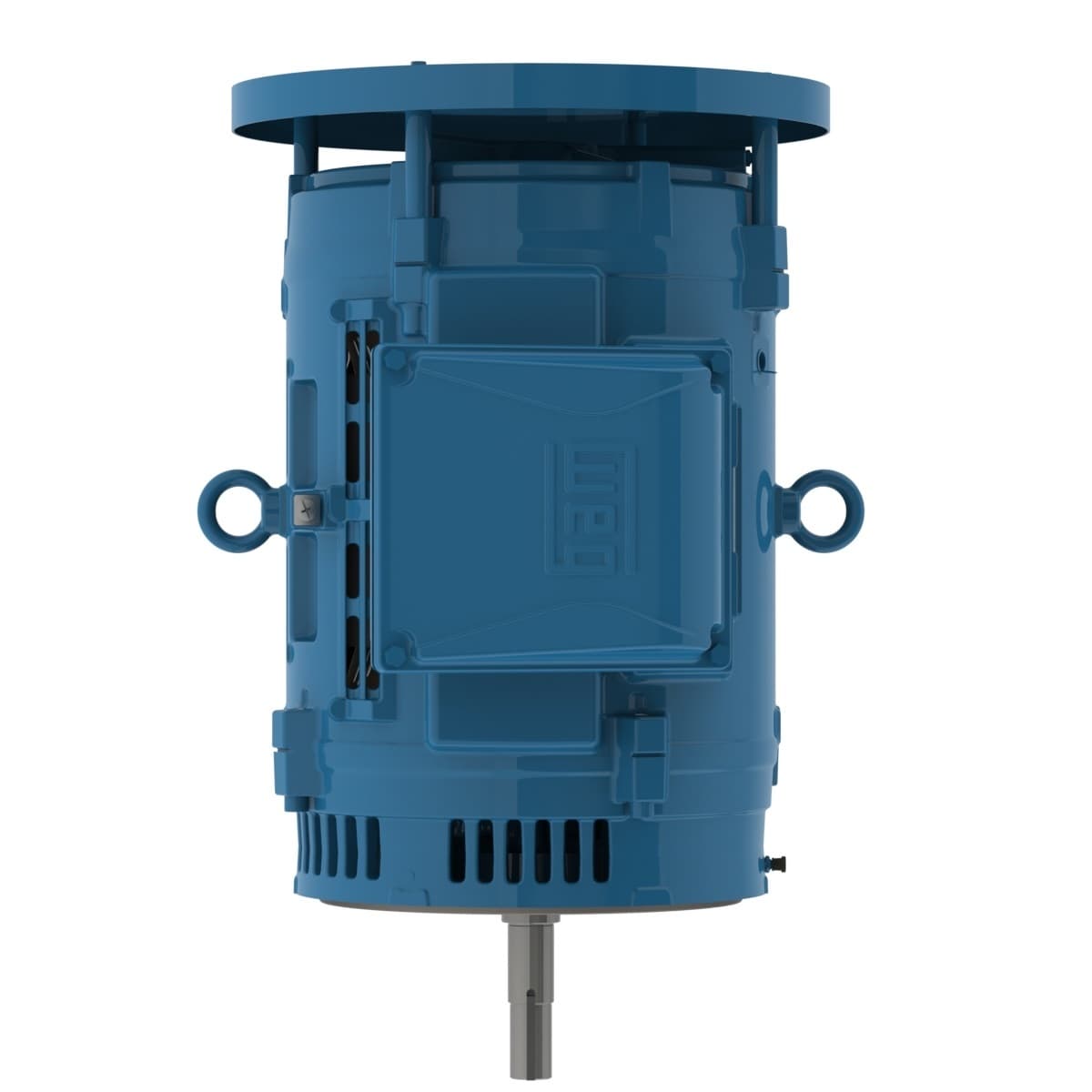

W40 JM Pump NEMA Premium Efficiency 50 HP 2P 324/6JM 3Ph 200/400 V 60 Hz IC01 - ODP - Footless
Check out the 05036OT3V324JMV-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed3555 rpm
- Number of Poles2 Pole
- Voltage200/400 V
- Flange TypeC
- Slip 1.25 %
- Locked rotor torque 200 %
- Altitude 1000 m.a.s.l.
- Output rating 50 HP
- Rated current 137/68.4 A
- Locked rotor time 25s (cold) 14s (hot)
- Rated voltage 200/400 V
- Design B
- Starting Method Direct On Line
- Noise level² 75.0 dB(A)
- Rated speed 3555 rpm
- No load current 44.8/22.4 A
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Number of Poles 2
- Service factor 1.25
- Standard NEMA MG-1
- Enclosure IC01 - ODP
- Flange C
- Output 50 HP (37 kW)
- Rated torque 73.9 ft.lb
- Mounting W-6
- L. R. Amperes 861/431 A
- Insulation Class F
- Approx. weight³ 443 lb
- LRC 6.3x(Code G)
- Duty Cycle Cont.(S1)
- Voltage 200/400 V
- Frequency 60 Hz
- Moment of inertia (J) 3.02 sq.ft.lb
- Degree of Protection IP23
- Synchronous speed 3600 rpm
- Frame 324/6JM
- Breakdown torque 220 %
- Ambient temperature -20°C to +40°C
- Number of poles 2
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05036OT3V324JMV-W40 Specs
1-year warranty
